Oki Data CONFIDENTIAL
42930511TH Rev. 2
36 /

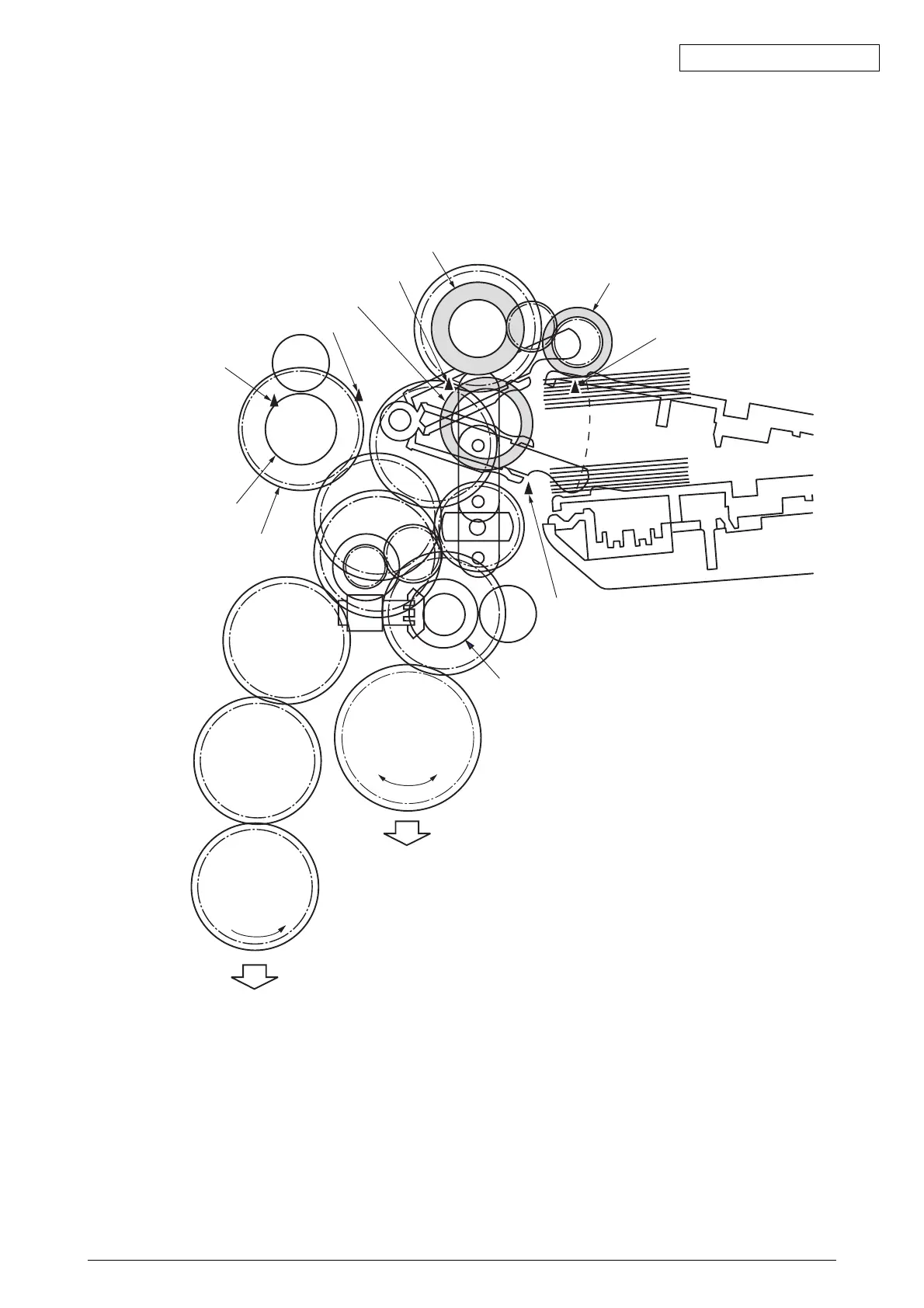

Pickup roller
Lift up sensor
Paper existence sensor
Paper existence sensor
Middle transport roller
The clutch gear of
electromagnetism (2)
Entrance sensor (2)
Retard roller
Hopping sensor
Feed roller
2nd Regist roller
Assy (B)
Write sensor
Paper
Regist motor drive
Hopping motor drive
a
b
Figure 2-7
35
37
