Conveyor belt
Transfer roller
Transfer belt motor
Drum
KY MC
(4) Conveyor Belt
1. The conveyor belt motor drives the conveyor belt when turning in the direction of the
arrow. The belt unit consists of one transfer roller that is directly under the drum for
each color, with the conveyor belt in between the drum.
When a specified voltage is applied, the conveyor belt and transfer roller transfers
the toner image on the drum for each color, then feeds the paper on the conveyor
belt to the fuser unit.

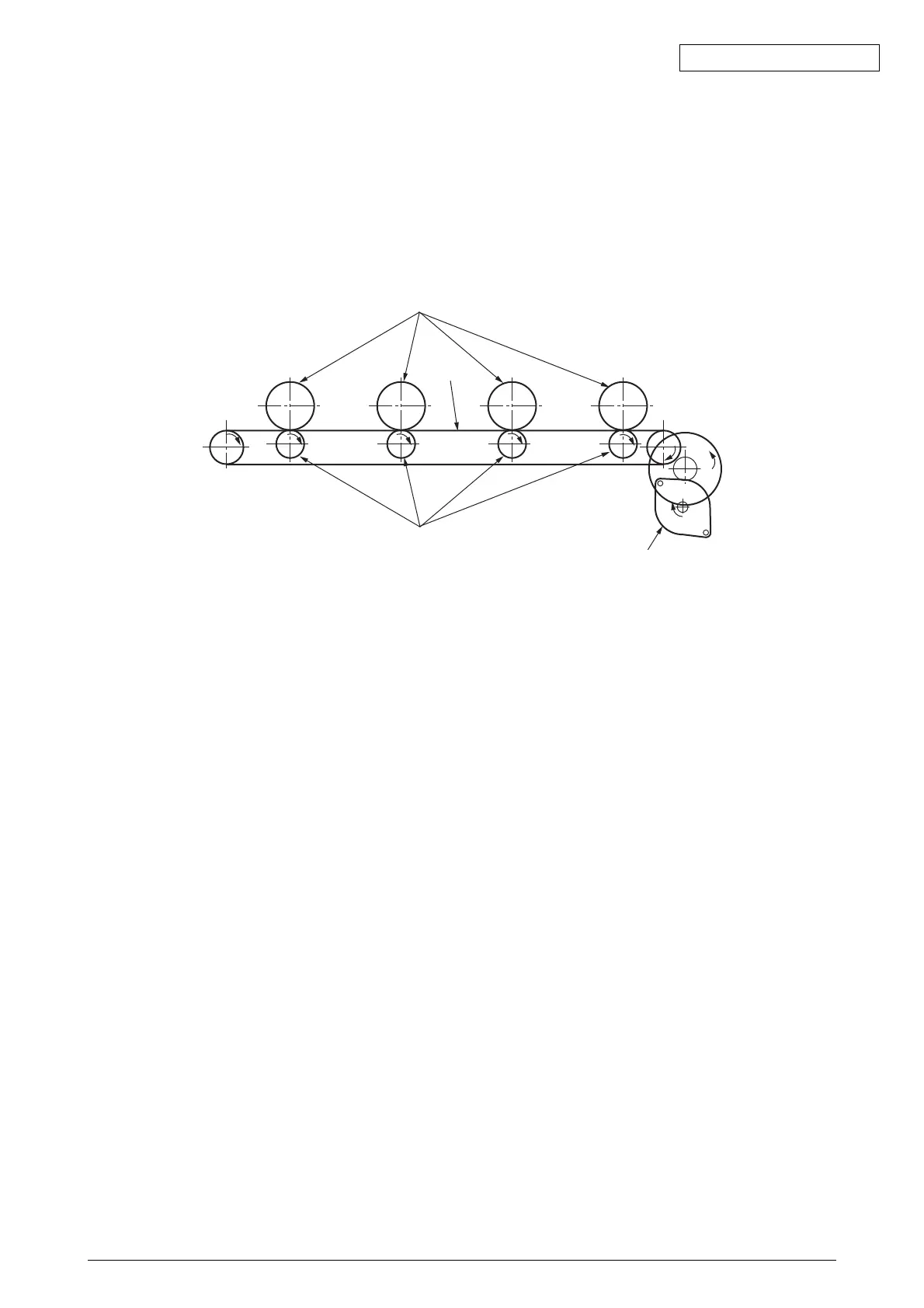

Figure 2-8
