Oki Data CONFIDENTIAL
42930511TH Rev. 2 38 /

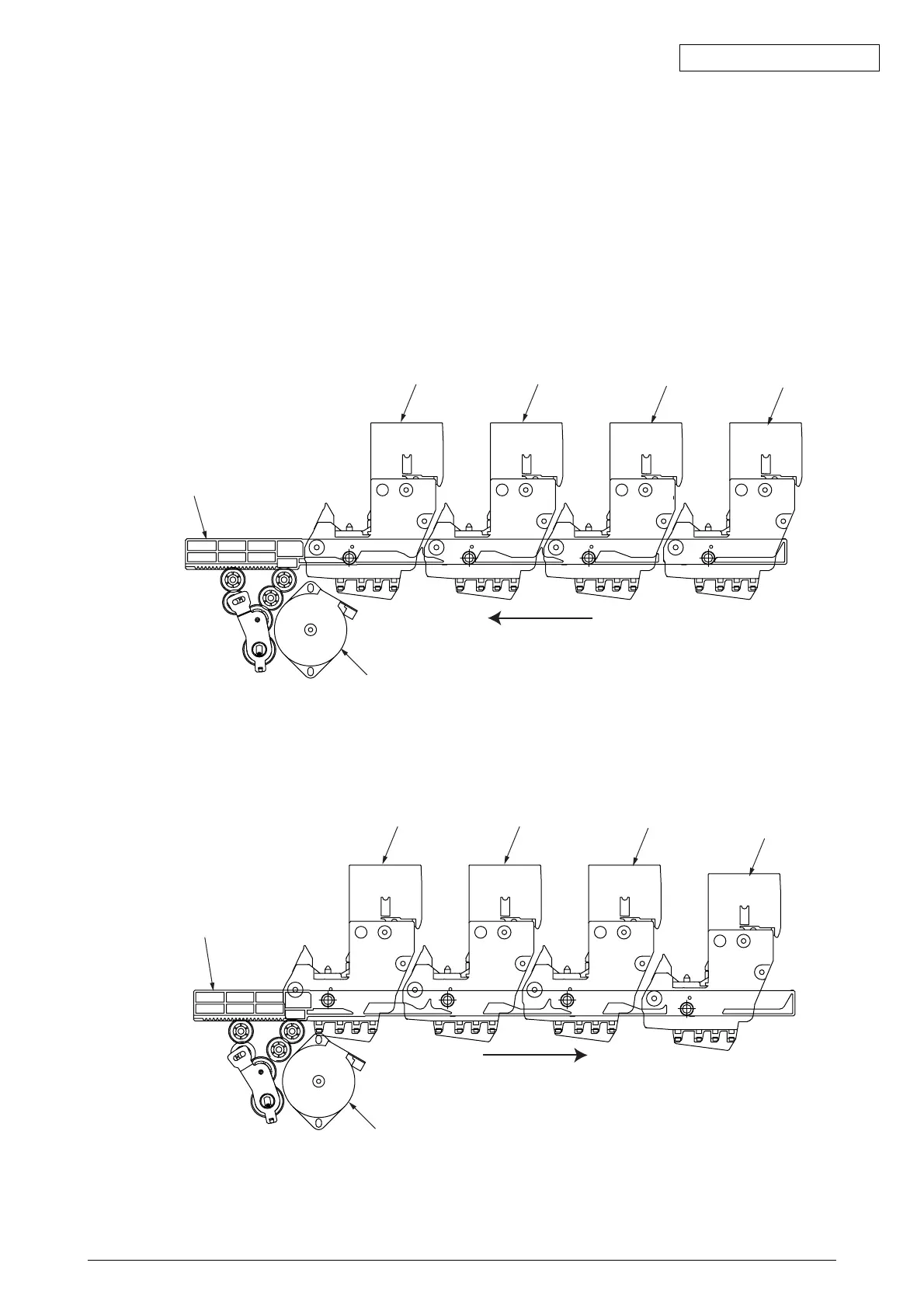

(5) ID Unit Up/Down Operations
1. The C-ID motor drives the ID unit up and down.
2. Figure 2-9-a indicates ID unit operations during color printing. When the C-ID motor
rotates (CCW), the lift uplink slides to the left, and as indicated in Figure 2-9-a, each
ID unit moves DOWN. The printer is now ready for color printing.
3. Figure 2-9-b indicates the ID unit operations during monochrome printing. When the
C-ID motor rotates (CW), the lift uplink slides to the right, and as indicated in Figure
2-9-b, all units other than the K-ID moves UP. The printer is now ready for black-
and-white printing.
Figure 2-9-a
Figure 2-9-b
C-ID Unit M-ID Unit
Y-ID Unit
K-ID Unit
C-ID Unit M-ID Unit
Y-ID Unit
K-ID Unit
C-ID Motor
(CCW)
C-ID Motor
(CW)
Lift uplink
Lift uplink
ID Unit Operations During Color Printing
ID Unit Operations During Monochrome Printing
C-ID Unit : Down
M-ID Unit : Down
Y-ID Unit : Down
K-ID Unit : Does not move.
C-ID Unit : Lift up
M-ID Unit : Lift up
Y-ID Unit : Lift up
K-ID Unit : Does not move.
To Next Page
