Okuma OSP 5000 - Horizontal Machining Center

3-8
Okuma America Corporation
MACHINE DEFINITIONMACHINE DEFINITION
MACHINE DEFINITIONMACHINE DEFINITION
MACHINE DEFINITION
Rev. 8-21-01
HORIZONTHORIZONT
HORIZONTHORIZONT
HORIZONT
AL MACHINING CENTERAL MACHINING CENTER
AL MACHINING CENTERAL MACHINING CENTER
AL MACHINING CENTER

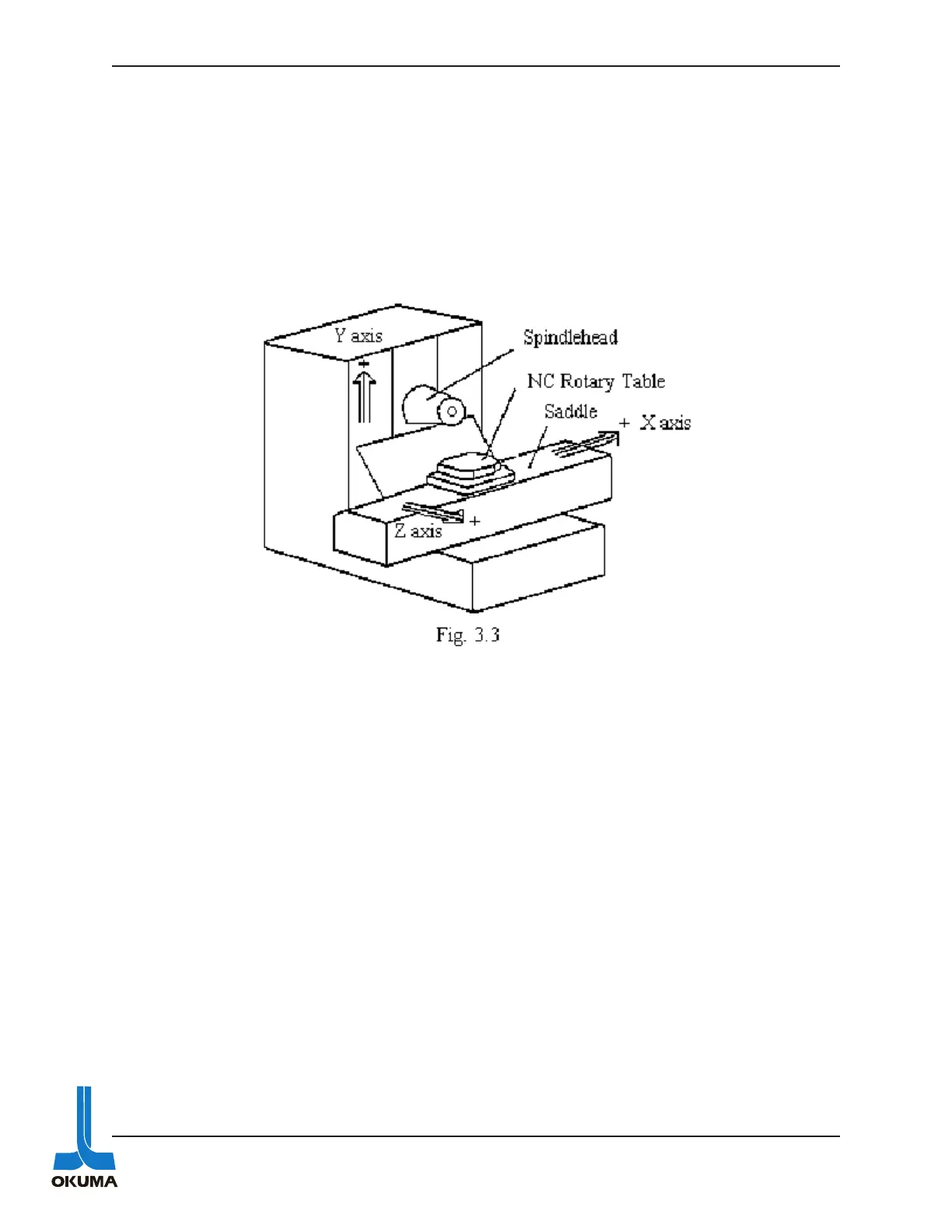

X axis: Longitudinal movement of the table (positive when fed to the right)
Y axis: Vertical movement of Spindlehead (positive when fed upward)
Z axis: Crosswise movement of saddle (positive when fed toward the operator)
B axis: Rotating motion of NC rotary table (positive when fed clockwise)
