Okuma OSP 5000 - Double Column Machining Center

3-10
Okuma America Corporation
MACHINE DEFINITIONMACHINE DEFINITION
MACHINE DEFINITIONMACHINE DEFINITION
MACHINE DEFINITION
Rev. 8-21-01
DOUBLE COLUMN MACHINING CENTERDOUBLE COLUMN MACHINING CENTER
DOUBLE COLUMN MACHINING CENTERDOUBLE COLUMN MACHINING CENTER
DOUBLE COLUMN MACHINING CENTER

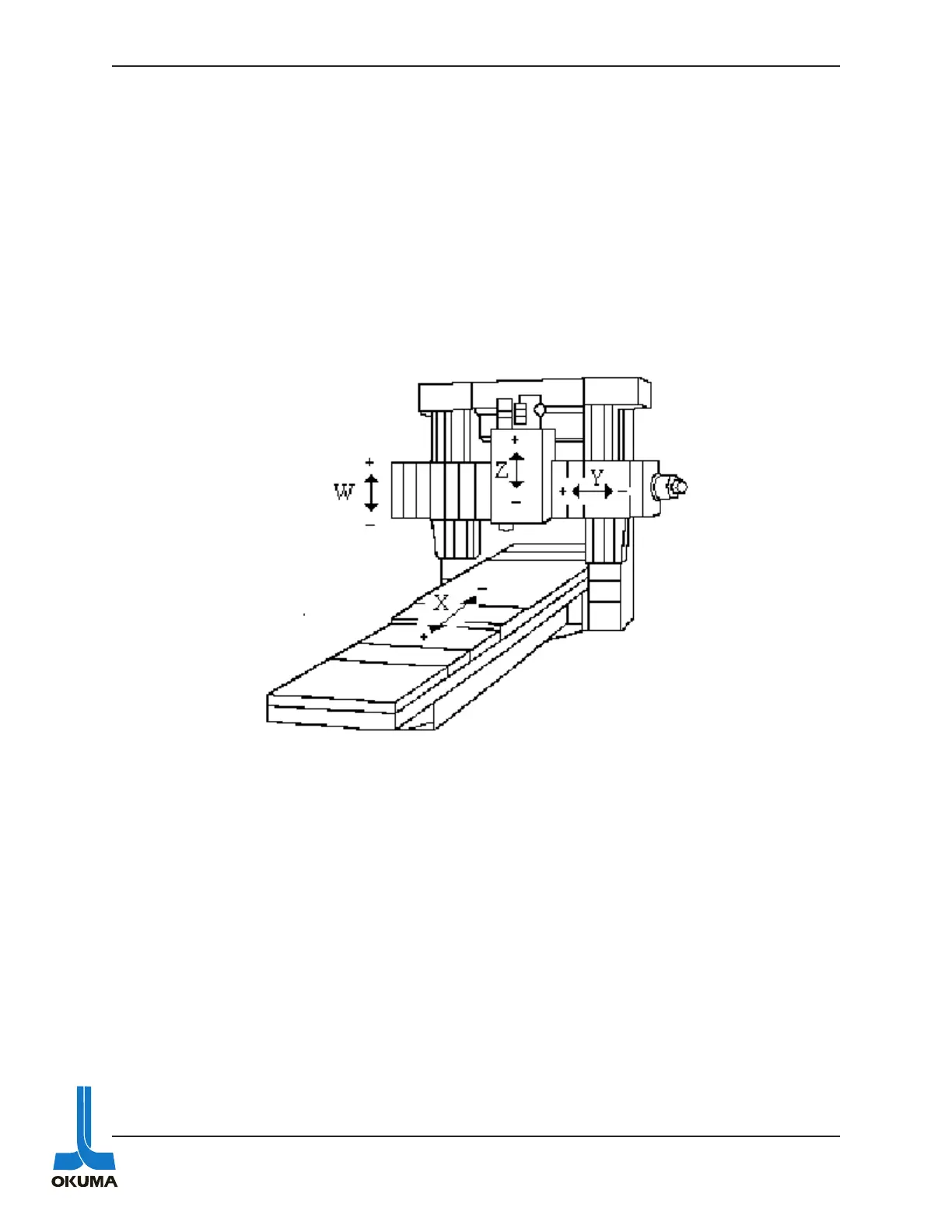

X axis: Longitudinal movement of the table (positive when fed toward the operator)
Y axis: Spindlehead crosswise movement (positive when fed leftward)
Z axis: Spindle Quill vertical movement (positive when fed upward)
W axis: Crossrail vertical movement (positive when fed upward)
Fig. 3-5
