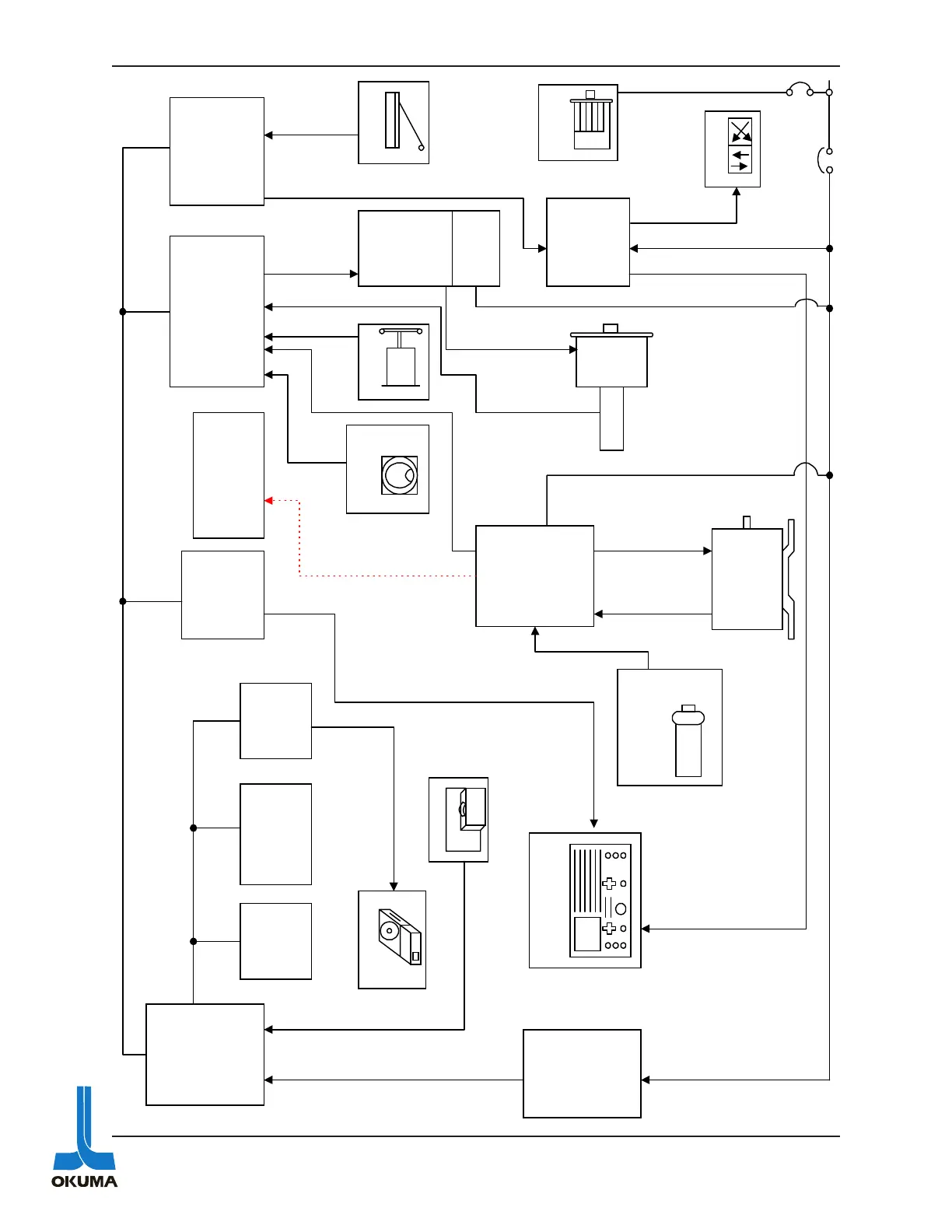

MAIN BOARD
II-B
EC BOARD
BUBBLE
CARD
256 BYTE
MAIN CARD 11 or
12 RAM
0.5M 2M BYTE
MAIN CARD
13
RS-232-C
CRP BOARD
9 CRP BOARD
II C
(OPTIONAL)
OPTICAL
COMMUNICATION
I/F
SP C6 CARD
SVP BOARD II-D
OPUS 5020
POWER SOURCE
UNIT
OPERATIONAL PANEL
TAP E READER
PUNCHER
VAC III SPINDLE MOTOR DRIVE UNIT
SPINDLE MOTOR
PULSE HANDLE
SENSOR
(OPTIONAL)
POSITION
ENCODER
AXIS
DRIVR
MOTOR
X-AXIS
Z-A XIS
BLII-D
X-AXIS
Z-A XIS
DC POWER
SUPPLY
EC CONTROL
POWER SOURCE
LIMIT SWITCH
HYDRAULIC
PUMP MOTOR
SOLENOID
AC220V 3ph
AC220V 3 ph
DC24V
AC100V
1 ph
220V
1 ph
SYSTEM BUS
SPINDLE PULSE GENERATOR
