3-18

Preparation before Use > Paper Stopper

Paper Stopper

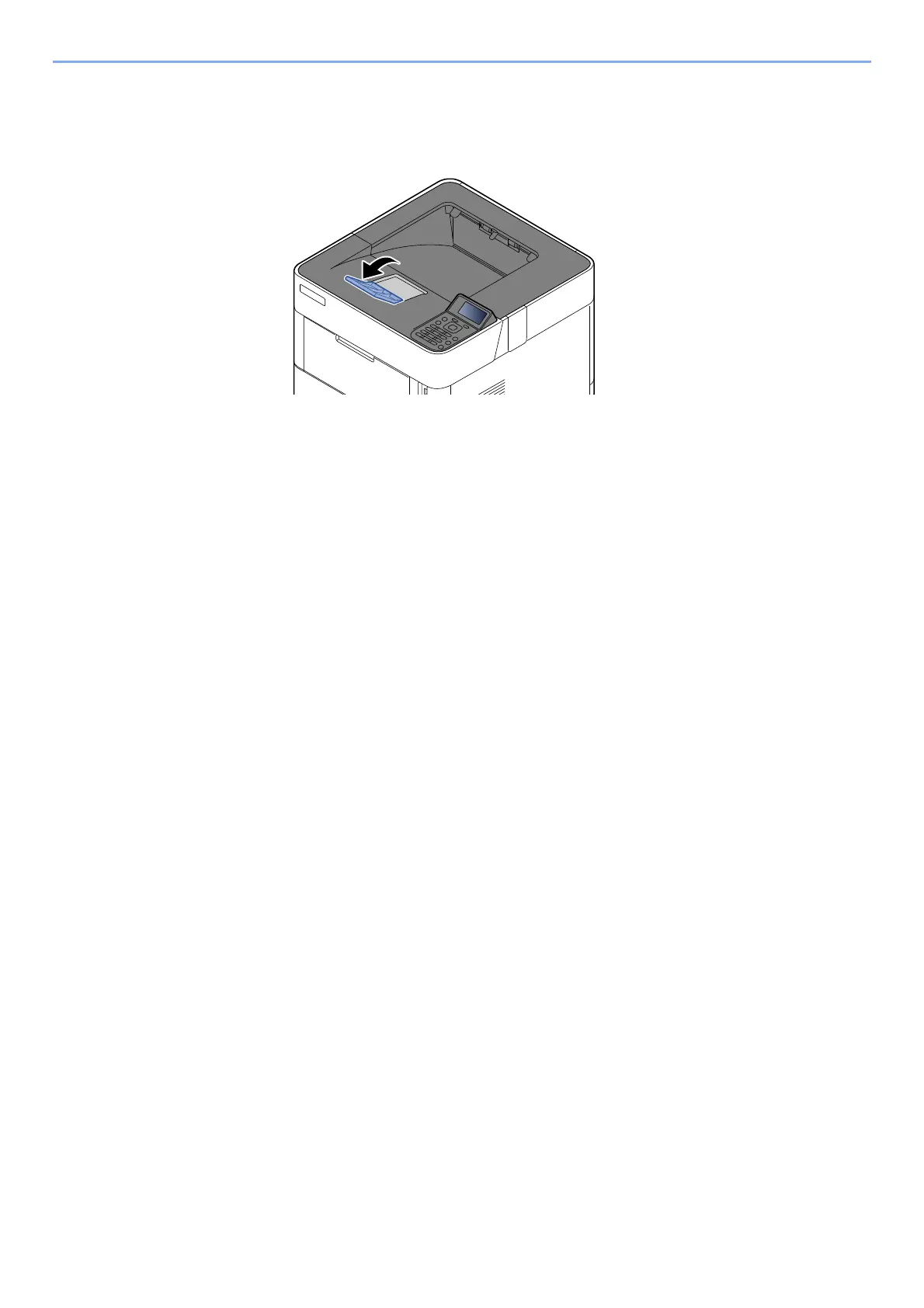

When using paper A4/Letter or larger, open the paper stopper shown in the figure.
