MX63/MX63L
89

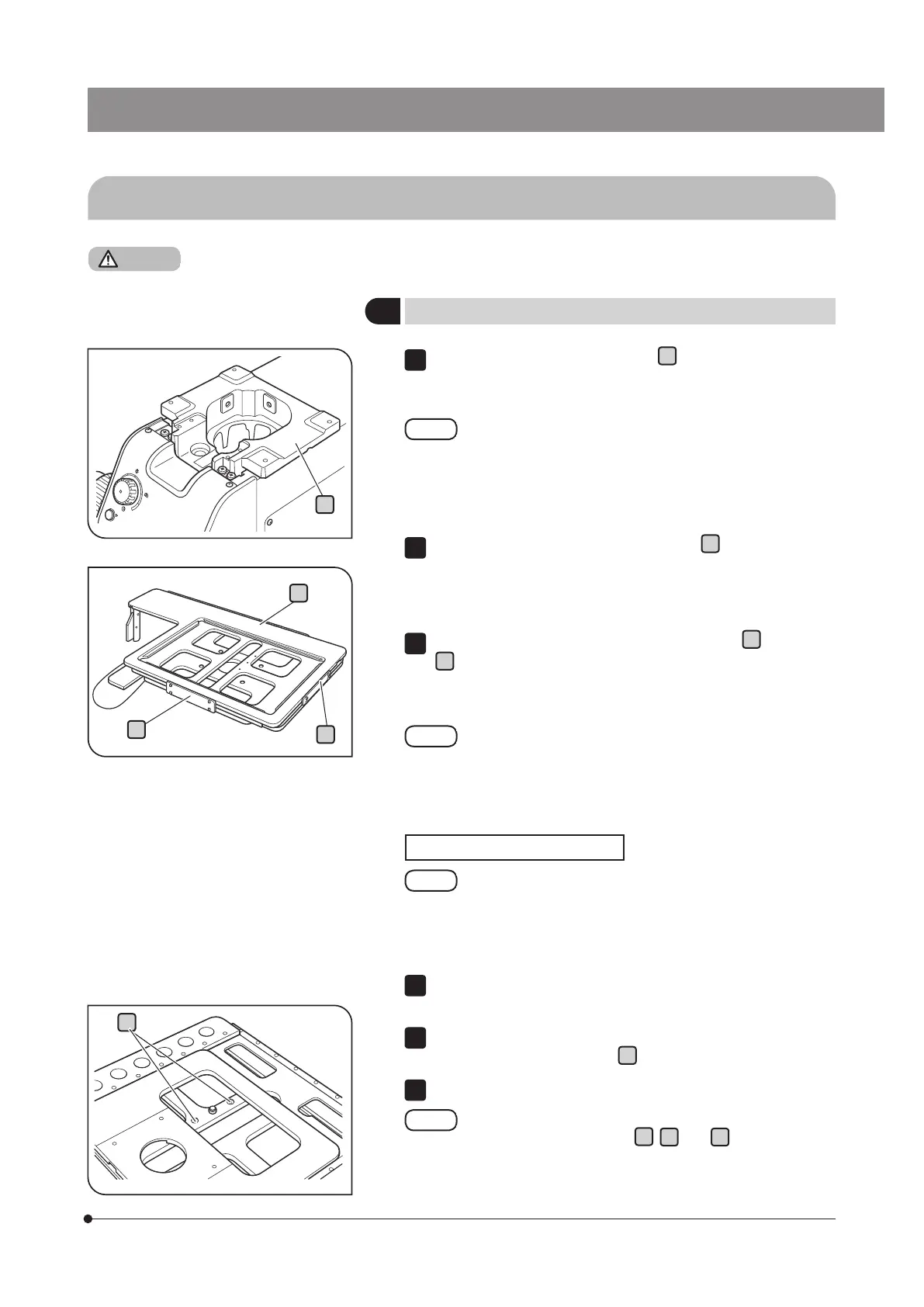

Remove the transport clamping plate
a
from the back of the stage
using the Allen wrench. The removed screws are used to secure the
stage when attaching it.
· With the MX-SIC6R2, the mounting screw holes are not visible
unless the upper stage is moved. Remove the transport
clamping plates from the front and rear of the stage.
· The transport protection sheet is placed at two positions of the
MX-SIC6R2 and MX-SIC8R stages. Be sure to remove them
before use.
Place the stage gently on the stage holder
b
so that the coarse
adjustment grip of the stage or X-axis/Y-axis knobs come to the right
side. Then, tighten four screws temporarily using the Allen screwdriver
or Allen wrench.
Remove the transport clamping plates from the front
c
and left side
d
(MXSIC1412R2 only), move the stage to the backmost position,
make sure that the stage and arm do not interfere with each other,
and tighten four screws completely.
If the stage is not moved for a long period, the clutch and the belt
will stick together and the clutch function will not work smoothly.
If this phenomenon occurs, remove the stickiness according to
“Stickiness between clutch and belt" (P.27).
Attaching the Y-stroke limit stopper
For the transmitted light observation using the MX-SIC1412R2
stage (only when MX-TILLA is used), it is required to attach the
stopper that limits the Y-axis stroke to 10 inches in order to
prevent the interference between the stage and the protruded
part of the condenser.
Place the stage upside down and remove two transport clamping
plates once.
Move the stage, and insert the stopper provided with the stage into the
stopper mounting screw holes
e
e
(2 positions) on the middle stage.
Attach only the front transport clamping plate.
Before transporting the stage, be sure to attach the
transport clamping plates
a
,
c
and
e
, and package
the stage securely. Do not transport the stage when it
is attached to the microscope frame or inadequately
packaged. Otherwise, the stage will be damaged.
3
2
3
This product contains the motorized parts. For safety purpose, connect the power cord plug last.
b
c
d
a
e
10-2 Assembly procedures
1
Attaching the stage
