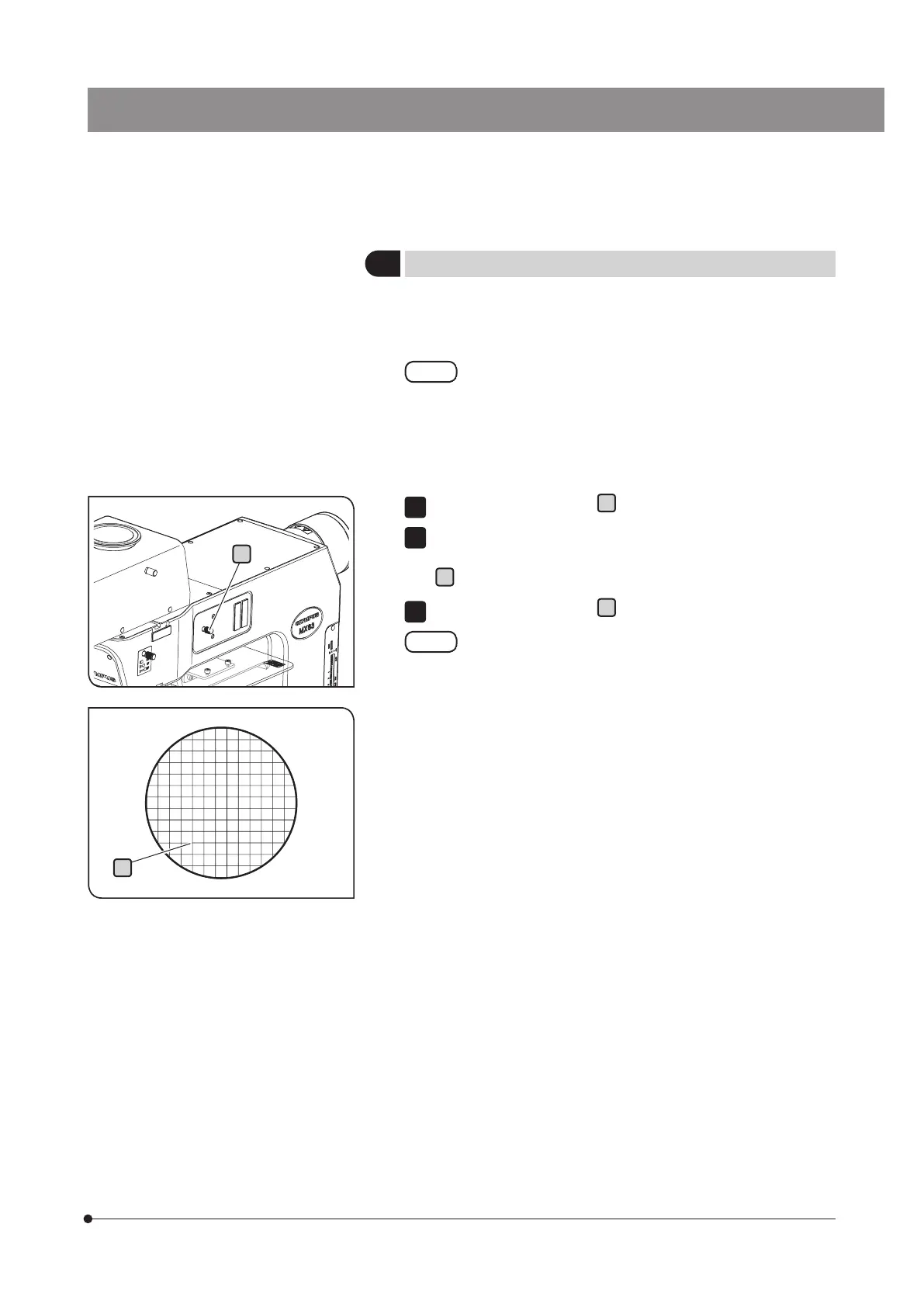

When observing the sample with flat and mirror surface, use the focus
aid (MX-FA) to bring the sample into focus easily. Contact Olympus for
attaching the focus aid.
· The focus aid is available only with the reflected
light brightfield observation, reflected light differential
interference contrast observation and reflected light
simple polarization observation.
· When observing the sample with uneven surface or
low reflectivity, the pattern of the graticule may not be
projected with good contrast.
Press-in the focus aid knob
a
to insert the graticule in the light path.
While looking through the eyepieces, rotate the coarse focusing and
fine focusing knobs to bring the sample into focus so that the lines
b
of the graticule are clearly visible.
Pull out the focus aid knob
a
.
Be sure to remove the focus aid from the light path during
observation.
NOTE
1
2
3
NOTE
5
Using the focus aid (MX-FA)
a
b
