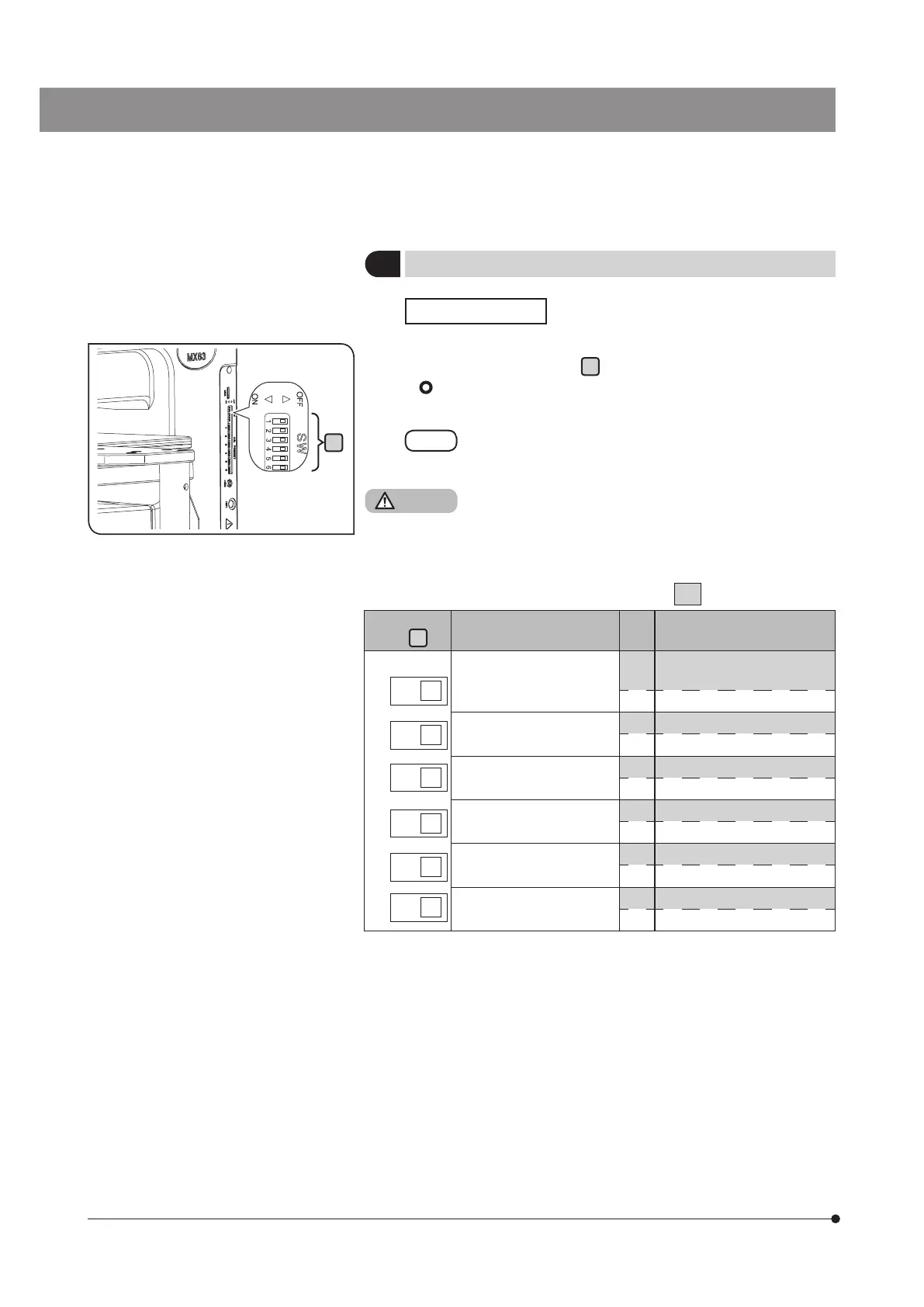

Setting the DIP switch
Make sure that the connections are correct.
Before setting the DIP switch
a
, set the main switch of the microscope
to
(OFF). The switch settings are read and defined only when the power
is turned ON.
Be careful not to touch the internal circuit boards when
setting the DIP switches. If you touch it, the internal circuit
boards may be damaged by static electricity.
Since the human body is charged with a small amount of
static electricity, discharge it from your body before setting
switches. You can discharge the static electricity by lightly
touching any metallic objects around you with hand.
11
Setting the DIP switch / AS.PRESET switch
:
Factory default setting
DIP
switch
Function Setting
ON OFF
OFF
U-D5BDREMC/U-P5REMC/
U-P5BDREMC
Revolving nosepiece type
(Number of holes)
ON U-D6REMC/U-D6BDREMC
Buzzer sound
OFF The buzzer sound is heard.
ON The buzzer sound is not heard.
Aperture diaphragm open/
close button setting
OFF The setting is enabled.
ON The setting is disabled.
Glare prevention by AS
when changing objectives
OFF Does not prevent the glare.
ON Prevents the glare.
Glare prevention by LED
when changing objectives
OFF Prevents the glare.
ON Does not prevent the glare.
Reserved by maker
OFF This switch is always kept OFF.
ON
a
1 2 3 4 5 6
a
