Olympus MX63 - Page 103

97
MX63/MX63L
97

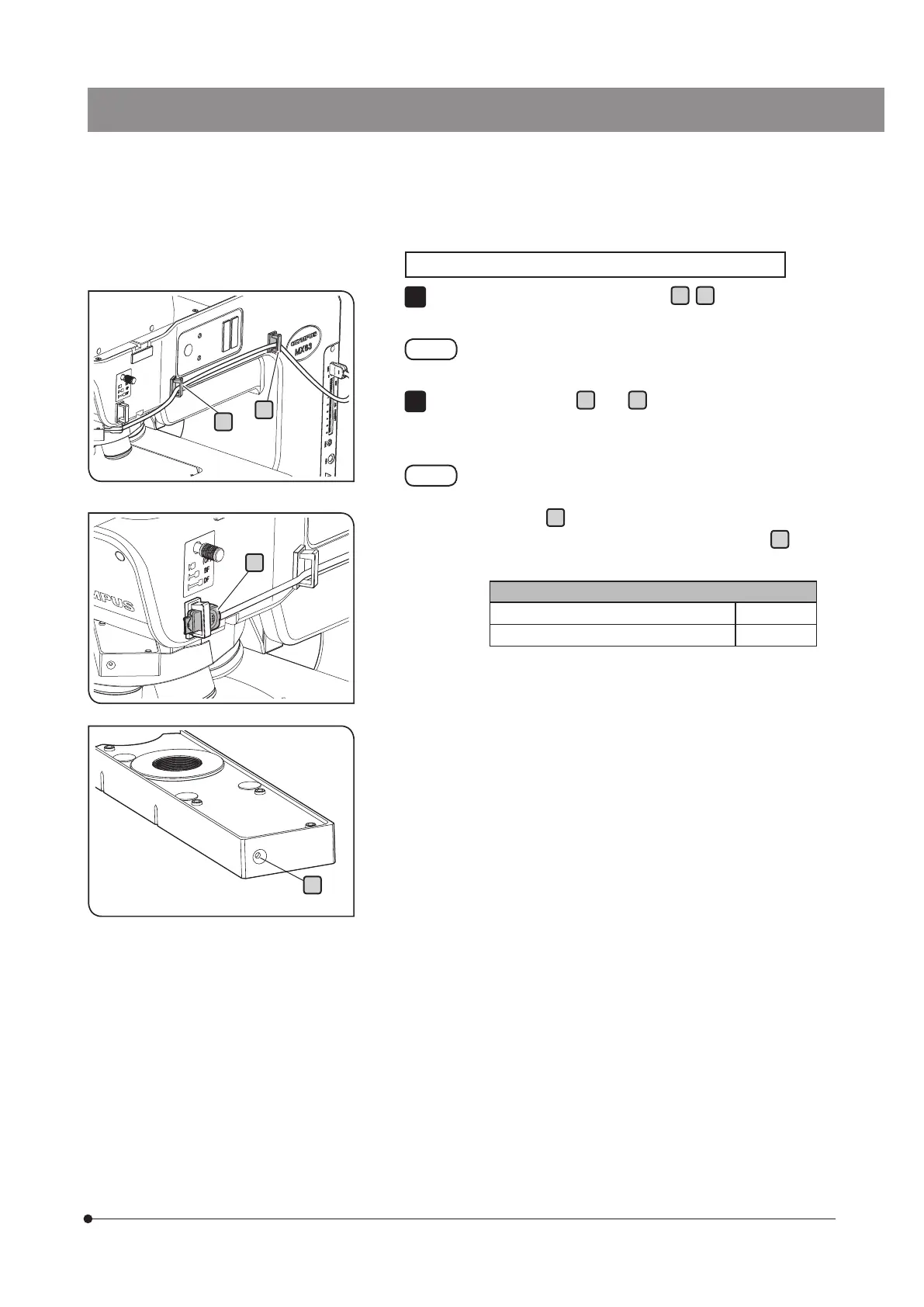

Layout of the cable for MIX slider for reflected light observation
Attach the cable holders at 2 positions (
a
,
b
) on the side surface
of the microscope frame.
The cable holders (3 pcs.) are provided with the cable for MIX
slider (U-MIXRCBL).
Open the cable holder
a
and
b
, put the cable for MIX slider for
reflected light observation (U-MIXR) into the cable holder, and close
the cable holder.
If you disconnect the connector from the MIX slider for
reflected light observation, store the cable in the cable holder
as shown in
c
.
When the connector is disconnected, the indicator
d
of the
MIX slider for reflected light observation turns OFF.
Indicator of MIX slider for reflected light observation
When the connector is connected
Turns ON
When the connector is not connected Turns OFF
1
TIP
2
TIP
d
a
b
c
