Olympus MX63 - Attaching the Objective; Attaching the Revolving Nosepiece; Attaching the MIX Slider; DIC Slider for Reflected Light Observation; Attaching the Observation Tube

91
MX63/MX63L
91
3
Attaching the objective
4
Attaching the revolving nosepiece
For attaching procedures, see “Removing and attaching the objective"
(P.66).
For attaching procedures, see “Attaching the revolving nosepiece" (P.67).
For attaching procedures, see “Inserting the MIX slider for reflected light
observation" (P.58) or “Setting the DIC slider" (P.52).

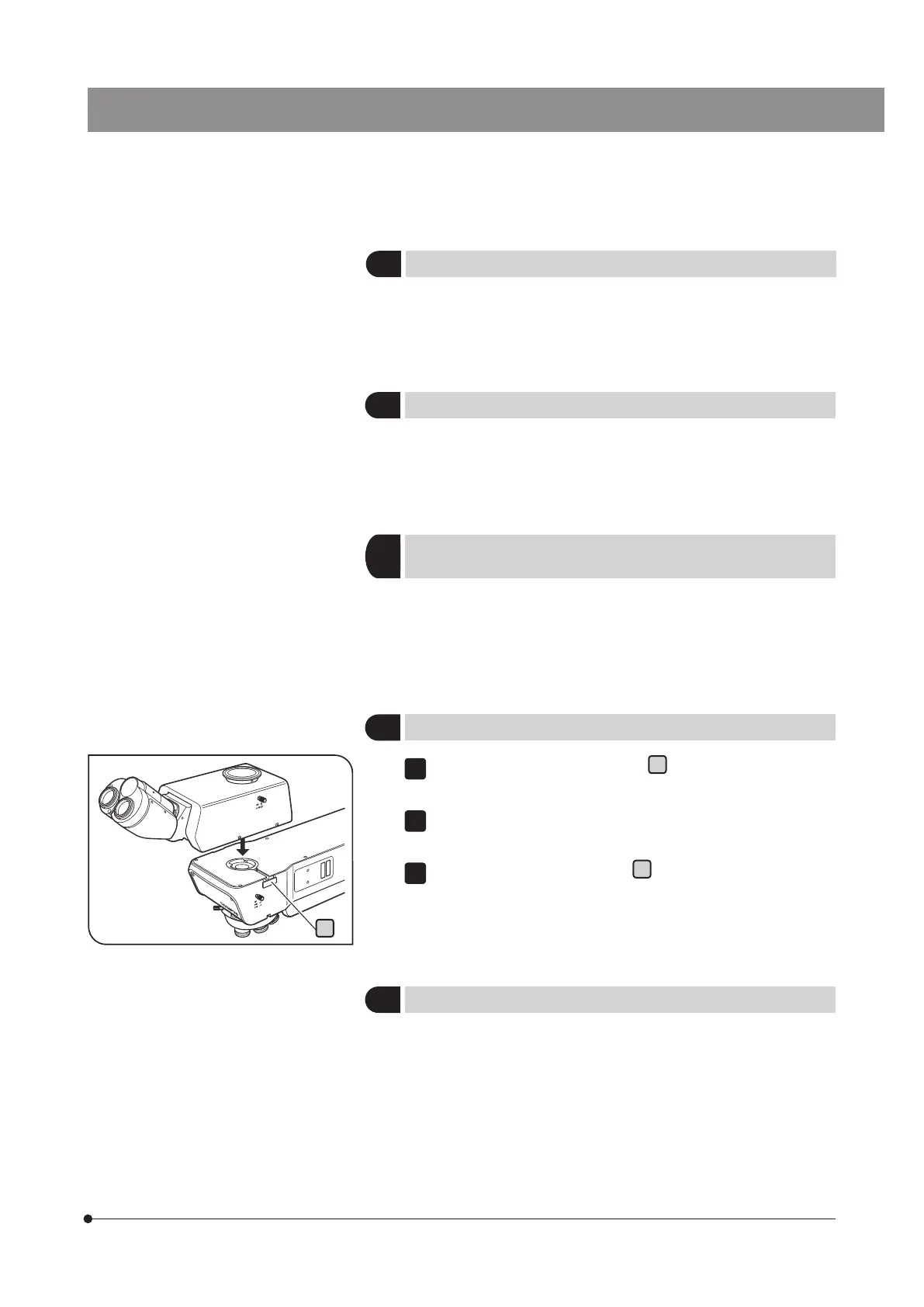

Loosen the tube clamping screw
a
sufficiently using the Allen
screwdriver.
Fit the circular dovetail at the bottom of the observation tube into the
tube mount on the top surface of the arm.
Tighten the tube clamping screw
a
to secure the observation tube.
1
2
3
6
Attaching the observation tube
a
7
Attaching the eyepiece
For attaching procedures, see “6-1 Removing and attaching the
eyepiece" on page 63.
5
Attaching the MIX slider / DIC slider for
reflected light observation
