Connecting the cables
Always use the USB cables and RS-232C cable interface cables provided by Olympus. If you use the
commercially available USB2.0 cables or hubs, the system operations cannot be ensured.
· Before connecting or disconnecting cables, set the main switch to
(OFF) and unplug the power cord
from the outlet.
· This product contains the motorized parts. For safety purposes, connect the power cord plug last.
· Cables are vulnerable when bent or twisted. Never subject them to excessive force.
· Be sure to connect only cables specified by Olympus to the connectors.
Connect the connectors in the correct orientation paying attention to the shape of the connector.
If the connector is attached with clamping screws, be sure to tighten them.
· When connecting PC to the microscope frame, connect only either of the USB cable or the RS-232C
cable.

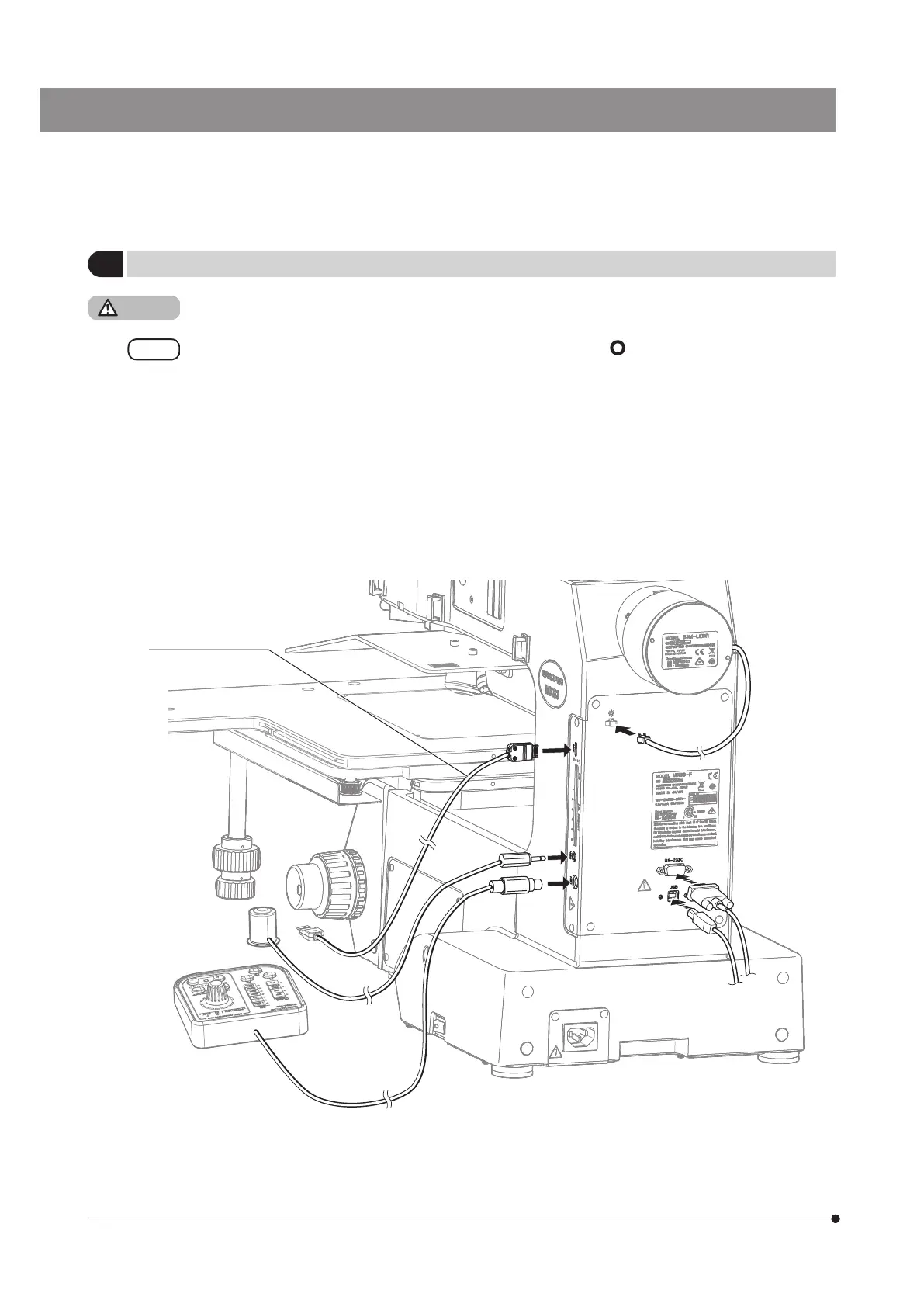

Reflected LED
lamp housing
BX3M-LEDR
USB cable
or
RS-232C cable
*
Only one type is
usable.
Hand switch for
exposure
U-HSEXP
Cable for U-MIXR
U-MIXRCBL
Hand switch
BX3M-HS
