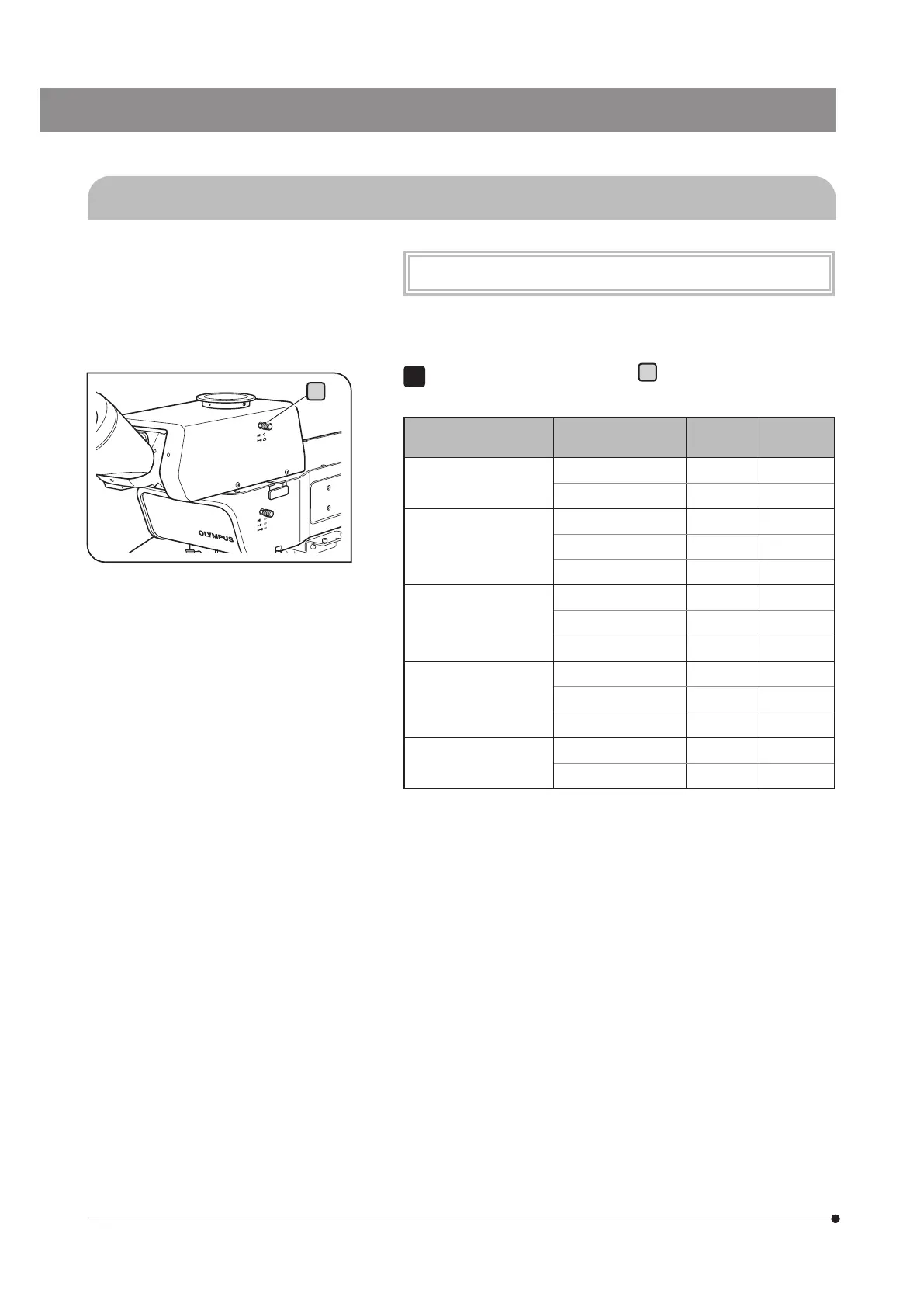

Olympus MX63 - Selecting between the Eyepiece Light Path and the Camera Light Path

2626
This function is available when the trinocular tube is combined.
You can select the light path for observing with the eyepiece or the light
path for observing with the display, etc. through the camera.
Slide the light path selection knob
a
of the trinocular tube to select
the required light path.
Trinocular tube
Light path selection
knob position
Eyepiece Camera
MX-SWETTR
U-ETR-4
Pressed in 100% 0%
Pulled out 0% 100%
U-SWTR-3
U-TR30-2
Pressed in 100% 0%
Middle position 20% 80%
Pulled out 0% 100%
U-TR30IR
(for infrared observation)
Pressed in 100% 0%
Middle position* 0% 0%
Pulled out 0% 100%
U-TTR-2
Pressed in 50% 50%
Middle position 100% 0%
Pulled out 0% 100%
U-SWETTR-5
Pressed in 100% 0%
Pulled out 20% 80%
* Shutter
1
a
3-4 Selecting between the eyepiece light path and the camera light path
