MX63/MX63L
37
3

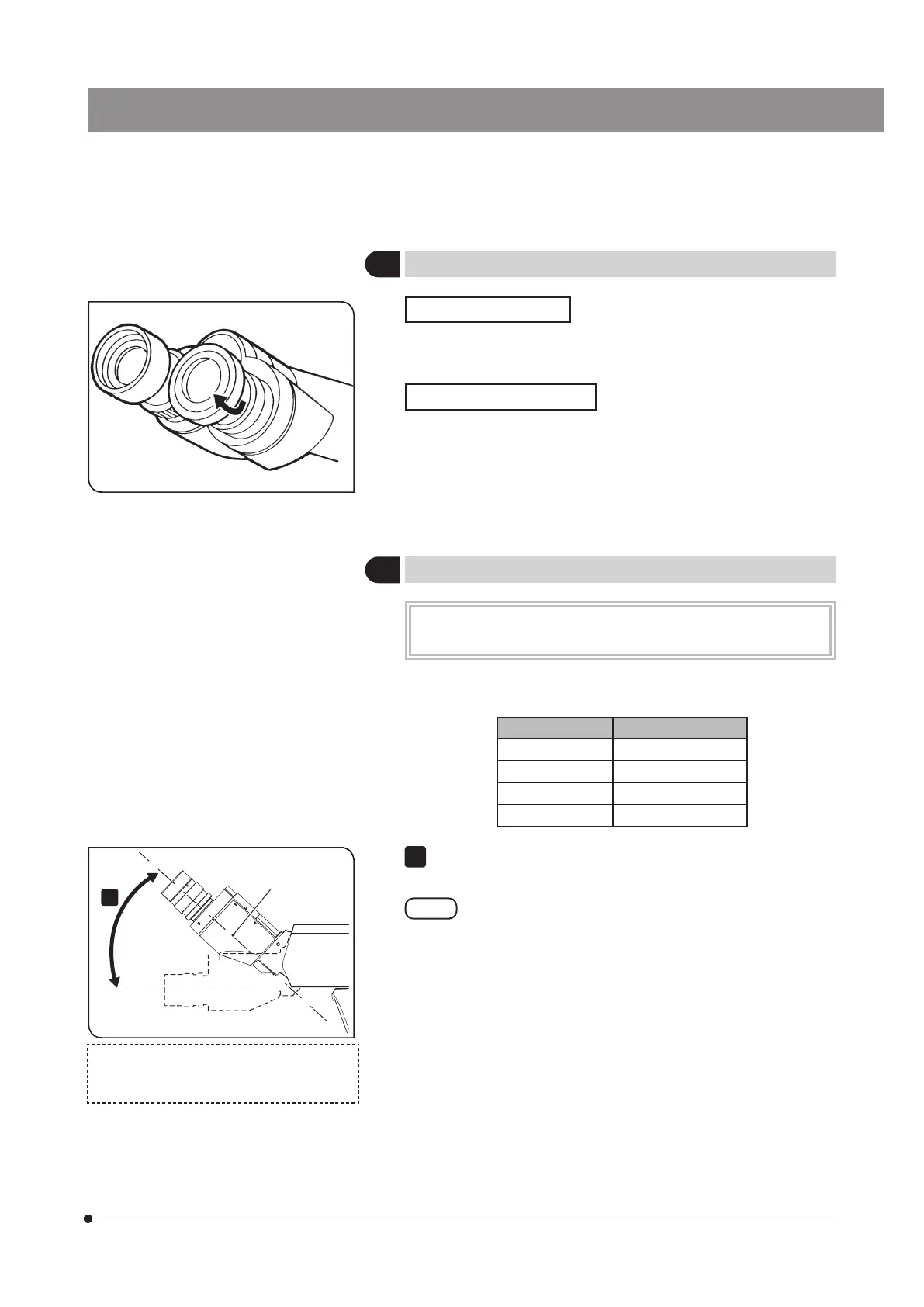

Using the eye shades
4
Adjusting the tilt
This function is available when U-TBI-3, U-TTR-2, MX-SWETTR or
U-SWETTR-5 is combined.
You can adjust the eyepieces to an easy-to-see height and angle so that
you can observe with a comfortable posture.
Observation tube Adjustable angle
U-TBI-3 5° to 35°
U-TTR-2 5° to 35°
MX-SWETTR 0° to 42°
U-SWETTR-5 0° to 35°
Hold the binocular section and move it vertically to set to the desired
position.
· Be careful, if you apply the excessive force to the binocular
section from the upper or lower limit stop position, the
system may be damaged.
· When storing the microscope, keep the eyepieces raised
up in order to prevent the eyepieces from falling.
· The intermediate attachment is not available with U-TBI-3.
· If you observe scratches or dirt on the mirror surface in the
darkfield observation with U-TBI-3, ghosts may appear in
some cases.
When wearing eyeglasses
Use the eye shades in the folded-down position.
When not wearing eyeglasses
Raising the folded-down eyeshades in the arrow direction prevents
the unnecessary light from entering between eyepieces and eyes.
The picture shows the hand position when
adjusting the tilt of MX-SWETTR. (Same for other
observation tubes.)
Hand position
(right and left)
