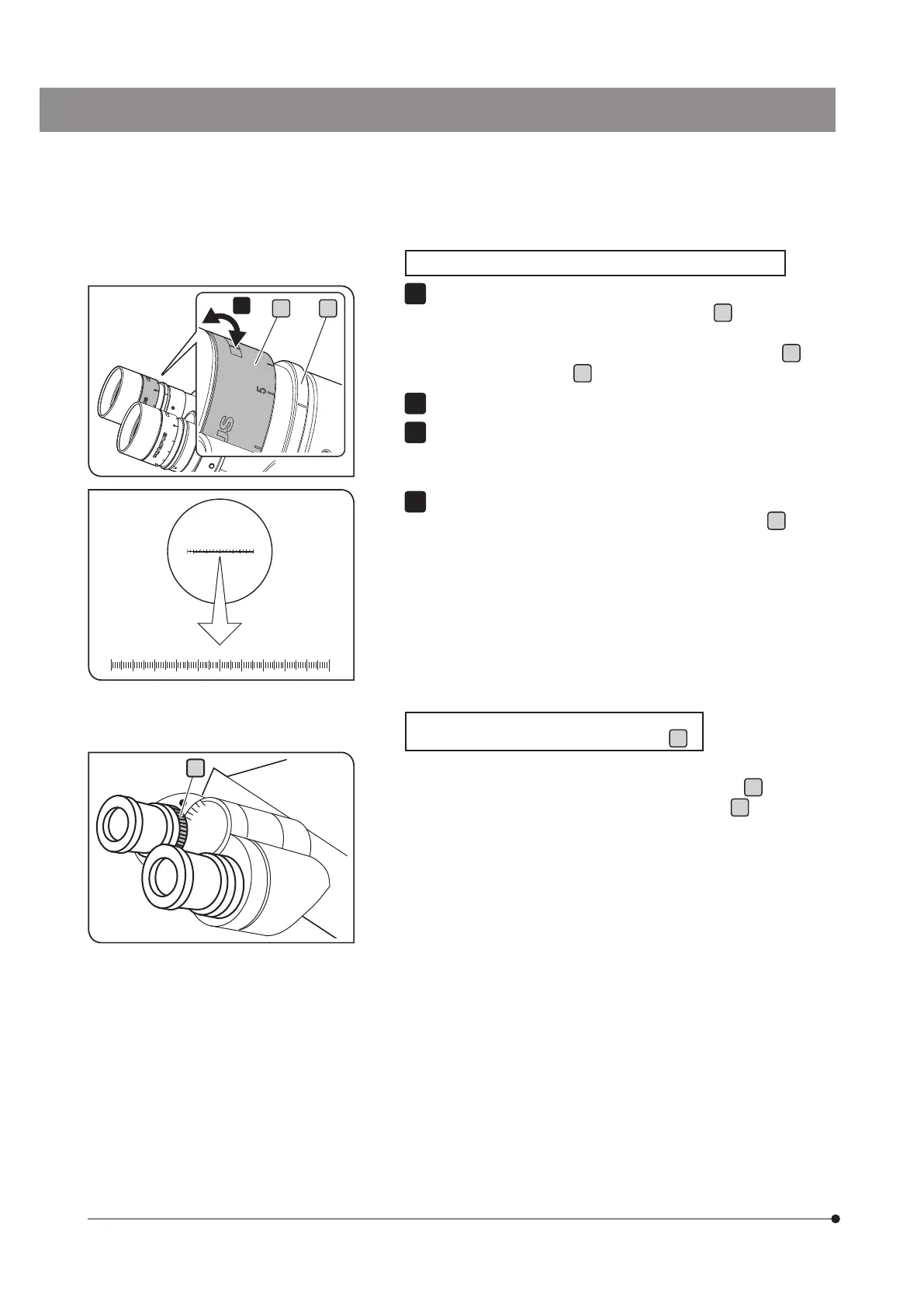

When the eyepiece is equipped with the eyepiece micrometer
While looking through the eyepiece equipped with the eyepiece
micrometer, rotate the diopter adjustment ring
b
to adjust so that
the scales or lines of the eyepiece micrometer in the field of view are
clearly visible. When you rotate the diopter adjustment ring
b
, keep
pressing the lower part
a
of the eyepiece.
Place the sample.
Engage the 10X objective in the light path. While looking through the
eyepiece equipped with the eyepiece micrometer, rotate the coarse/
fine focusing knobs to bring the sample into focus.
While looking through the eyepiece which is not equipped with the
eyepiece micrometer, rotate the diopter adjustment ring
b
to bring
the sample into focus.
1
3
4
When the observation tube is equipped with
the interpupillary distance adjustment ring
c
Perform the same operation as described above.
Be sure to use the interpupillary distance adjustment ring
c
of the
observation tube instead of the diopter adjustment ring
b
of the
eyepiece described above.
c
b a
