Olympus MX63 - Image Acquisition; Image Acquisition Diagram

43
MX63/MX63L
43
4 Image acquisition
Camera mount adapters
C mount camera adapters
Camera
Camera adapters
Trinocular tube
U-TR30-2
U-SWTR-3
U-TTR-2, etc.

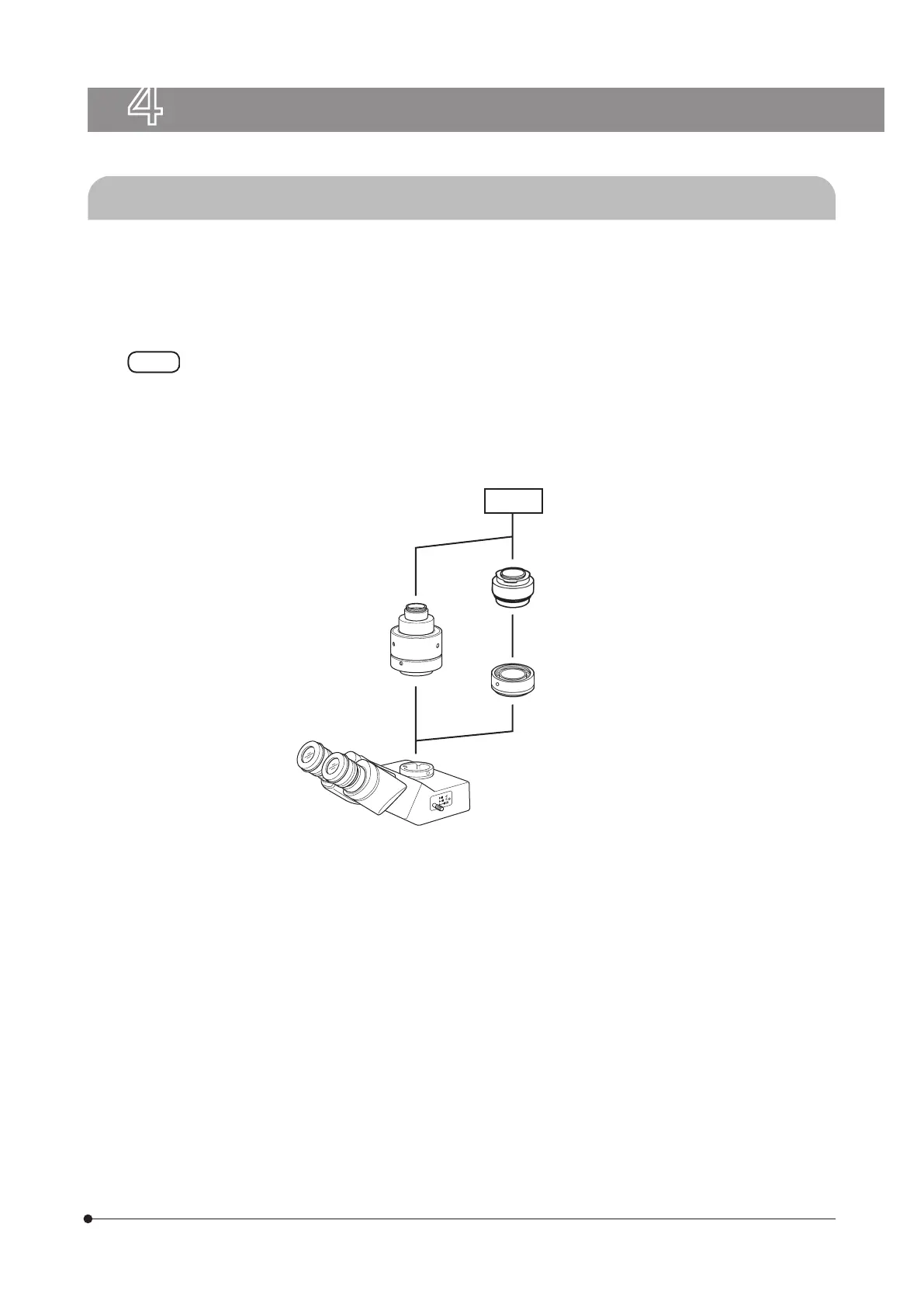

4-1 Image acquisition diagram
Attaching the camera adapter and the microscope digital camera to the trinocular tube allows you to acquire the
observed image. The image acquisition range is determined by the size of the image sensor used in the camera and
the magnification of the camera adapter.
For details, refer to the instruction manual for the camera and the camera adapter.
When using the camera adapter, be sure to adjust the parfocality of the camera adapter and
eyepieces. Otherwise, the focusing of the image through eyepieces will not match with that of the
image acquired by the camera.
For procedures to adjust the parfocality, refer to the instruction manual of the respective camera
adapter.
NOTE
