OMEM710 Hardware Manual 2v11
11

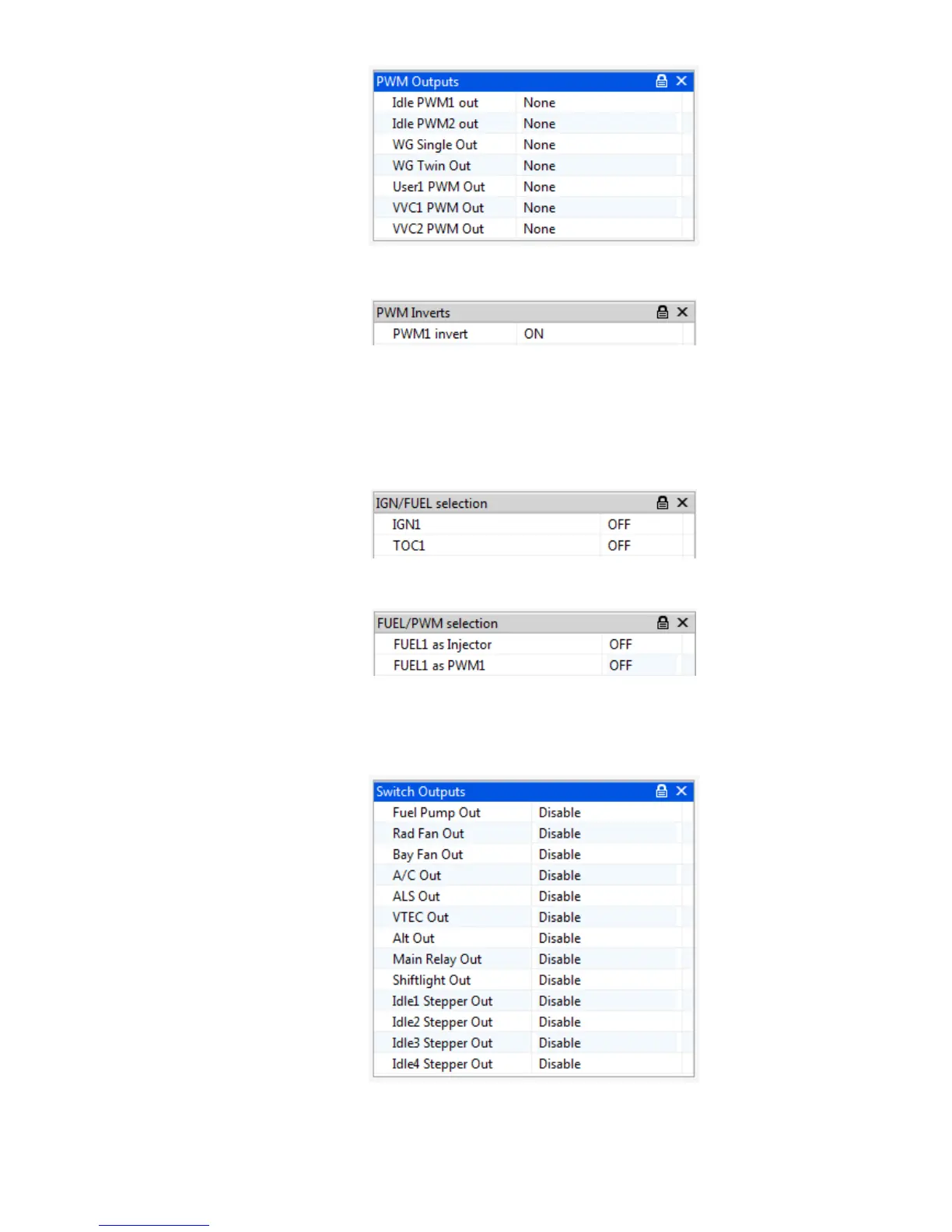

The PWM outputs will usually require inverting.
4.4 Switch Outputs
Switch outputs may be controlled by IGN pins, FUEL pins, or HIGHSIDE pins.
To set an IGN pin as a switch output it must have both the IGNx and TOCx OFF.
To set a FUEL pin as a switch output it must have both the FUELx and PWMx OFF.
The HIGHSIDE pins are switch pins only so do not need the hardware switching to this output type.
Controls are then applied to these switch outputs using the Switch Outputs drop-down options
group.
If the output needs to work in reverse (ie the output going OFF when the software function goes ON)
then use the inverted option version.
