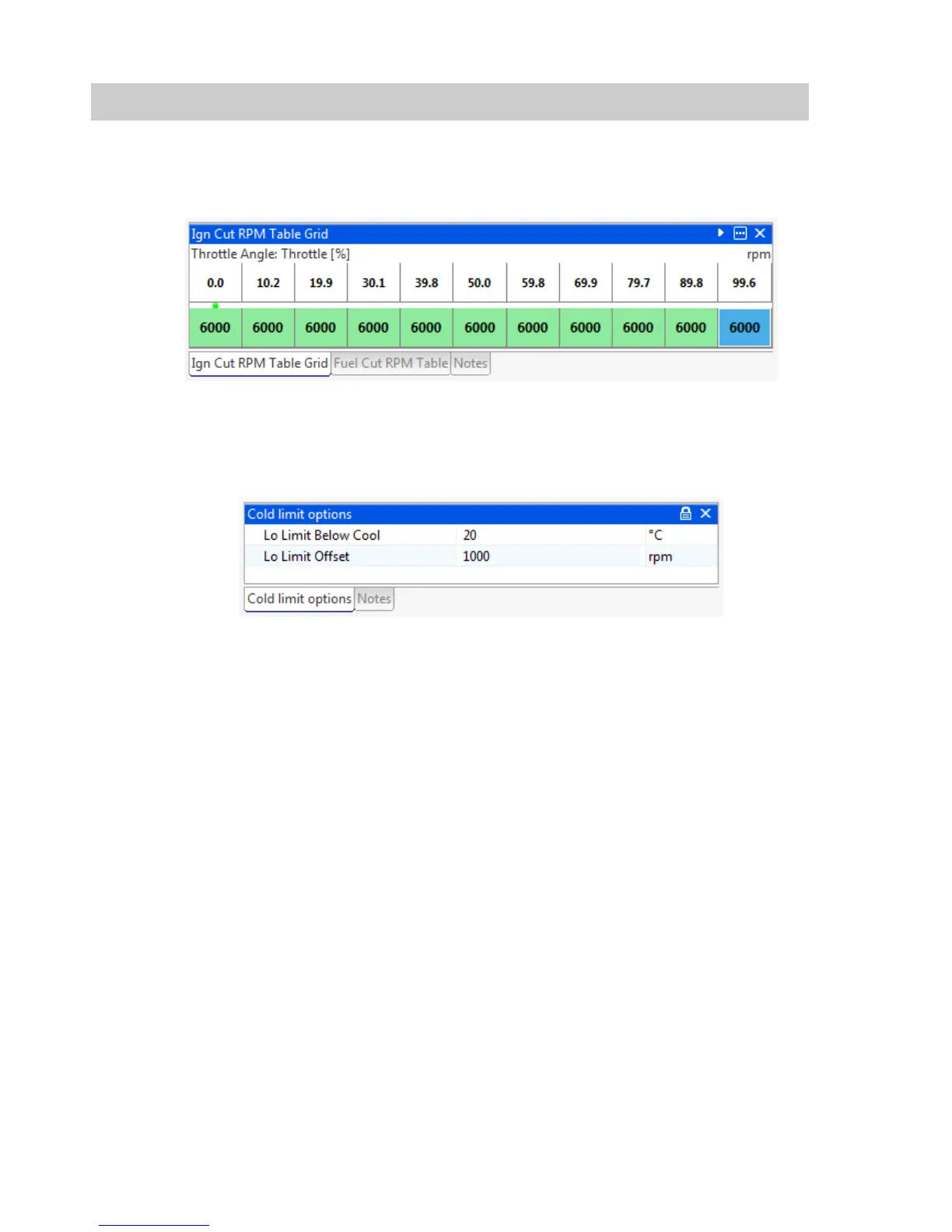

The Fuel Cut RPM table and Ign Cut RPM table allow differing rev limits based upon throttle
position for when using anti-lag. If you are not using anti-lag, set all of the throttle positions in the
table to the same engine speed. An example of a 6000rpm limit is as follows.
At this engine speed, the soft cut will be invoked. If the engine speed is exceeded by 50 rpm, then
the hard cut is invoked. If you are not using a cam sensor so have semi-sequential fuelling, the Fuel
Cut RPM Table should be set to an engine speed that is higher than the ignition cut rev limit.
A second rev limit can be imposed when the engine is below a specified temperature.
Lo Limit Below Cool
the temperature below which the cold rev limit is set
Lo Limit Offset
the reduction in rev limit when rev limit coolant is satisfied
8 Rev Limits
