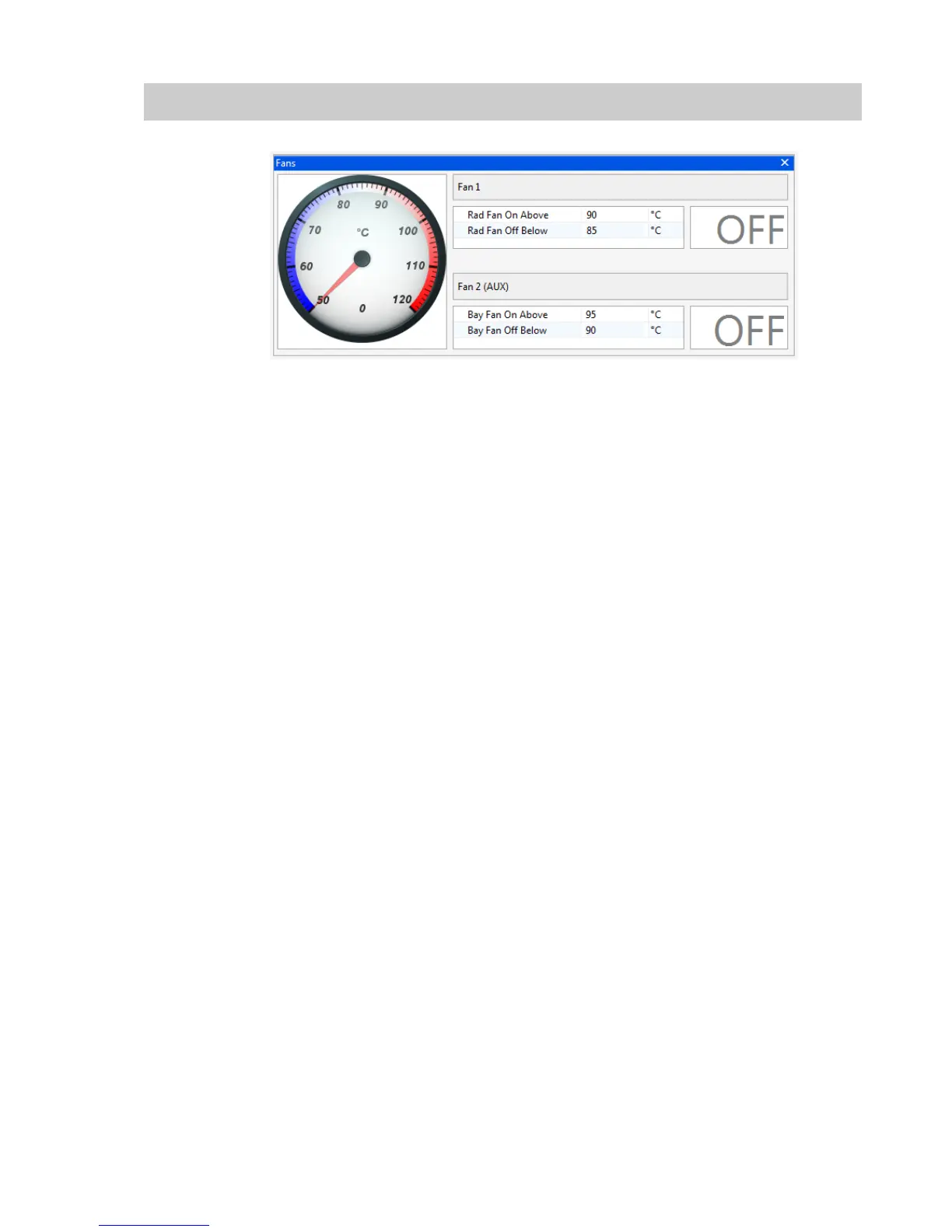

The ECU has two software outputs switchable on coolant temperature values. These would normally
be used for cooling fans. The two outputs may be set to two different fans or set at different
temperatures for twin speed fans.
Rad Fan On Above
temperature at which the rad fan output is on
Rad Fan Off Below
temperature at which the rad fan output is off. Set a few degrees
lower than Rad Fan On to allow hysteresis
Bay Fan On Above
bay fan on at this temperature
Bay Fan Off Below
bay fan off at this temperature. Set to a few degrees below Bay
Fan On to allow hysteresis
