OMEX OMEM710 - Wiring Diagrams Overview

OMEM710 Hardware Manual 2v11
68
29.4 Diagrams
The diagrams section shows how various inputs, outputs etc should be wired.

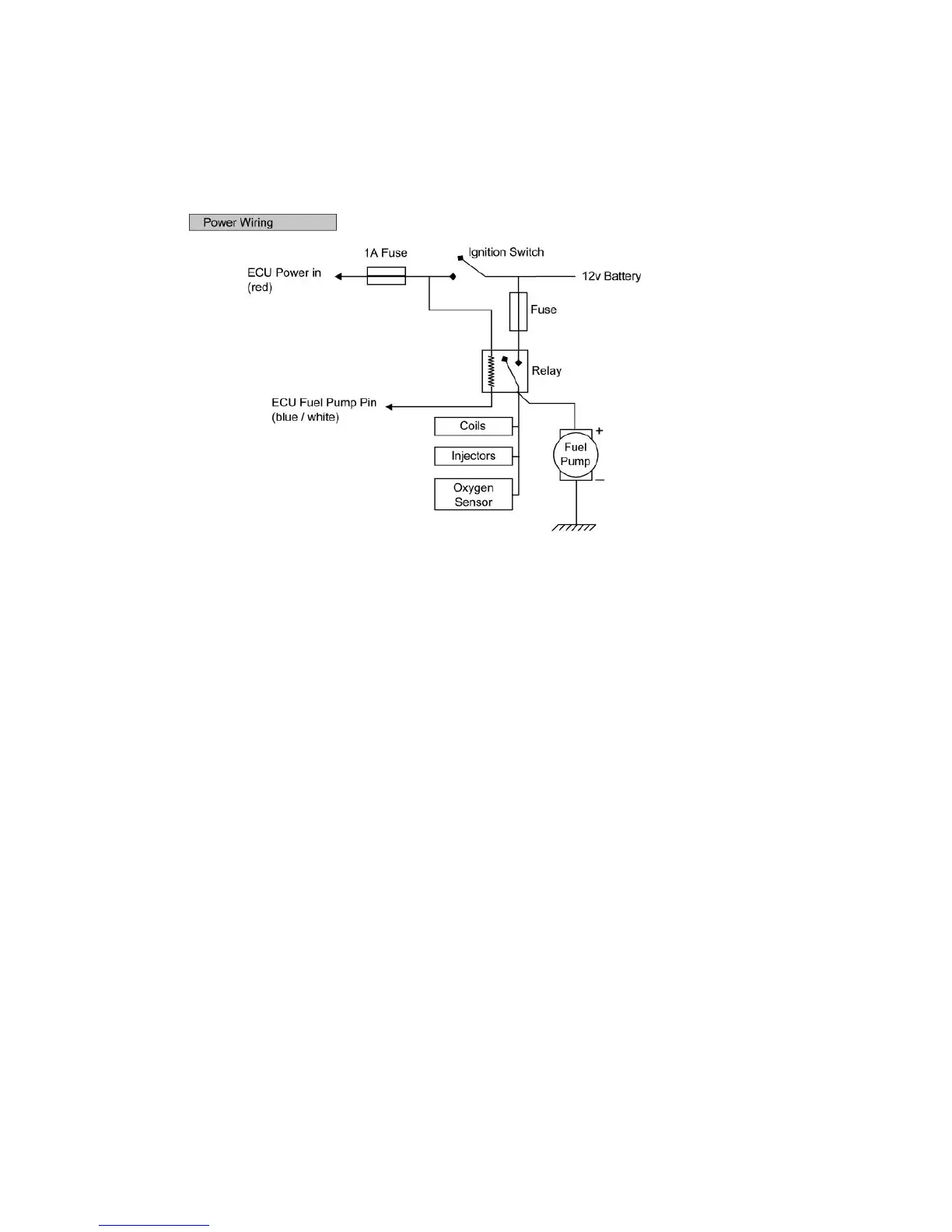

To switch power to the coils, injectors etc based on the fuel pump output from the ECU, typically,
