OMEM710 Hardware Manual 2v11
47

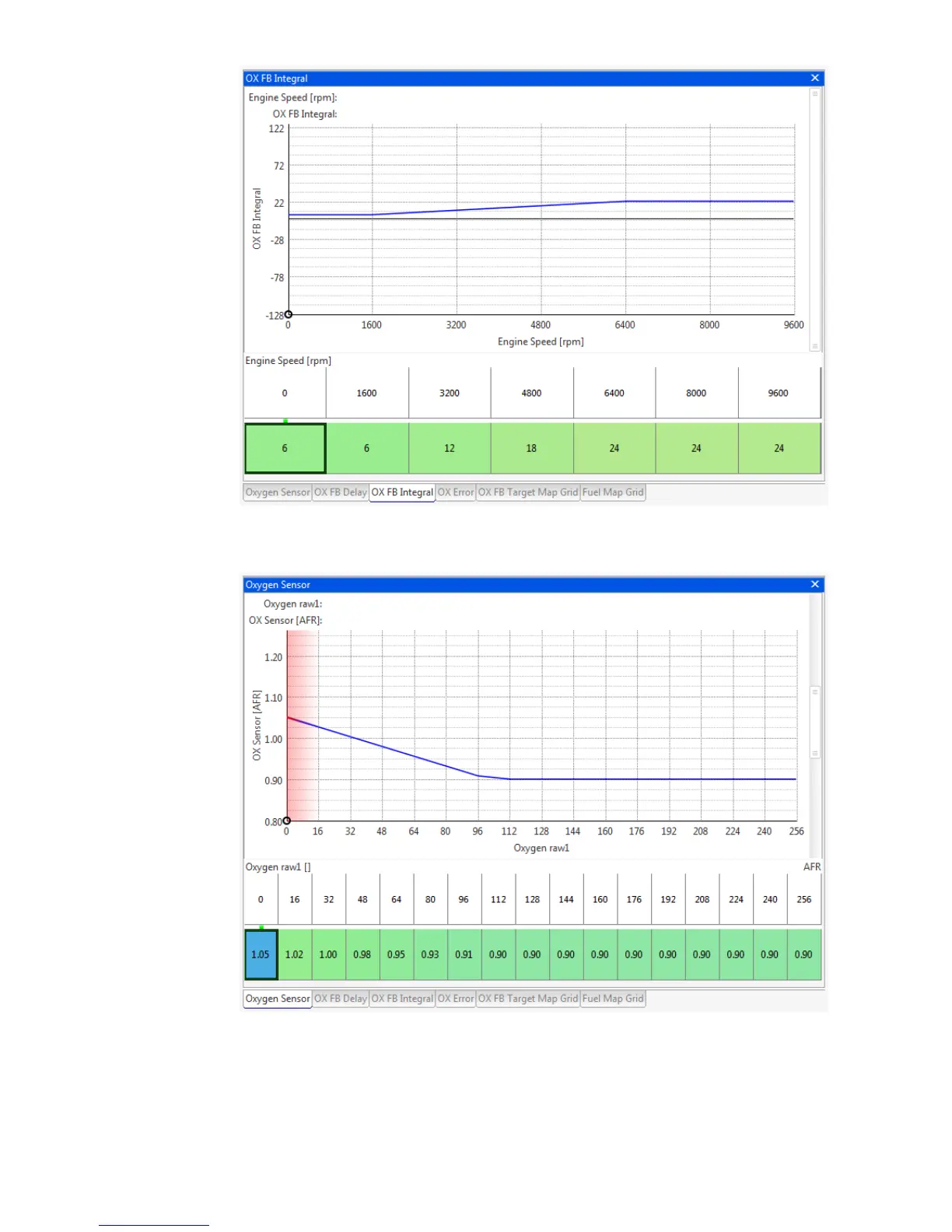

Oxygen Sensor Table input the following values. This shows that at a raw value of below 32, the
engine is lean, and at a raw value of above 32 the engine is rich.
The Lambda Target Map shows the target lambda value for all engine speed and load conditions.
In the case of narrowband oxygen feedback the whole table should be set to a value of 1.
The oxygen sensor takes a few seconds to warm up after startup as can be seen by its gradual
increase from 1 on the oxygen raw parameter. Before the sensor is warm we wish to ignore its
