The 4 rails are locking the tooling of the forming station. You must turn the key on the front of the
table and pneumatically unlock the rails. You must install the mold with “T” inserts to keep the
tooling on the table.

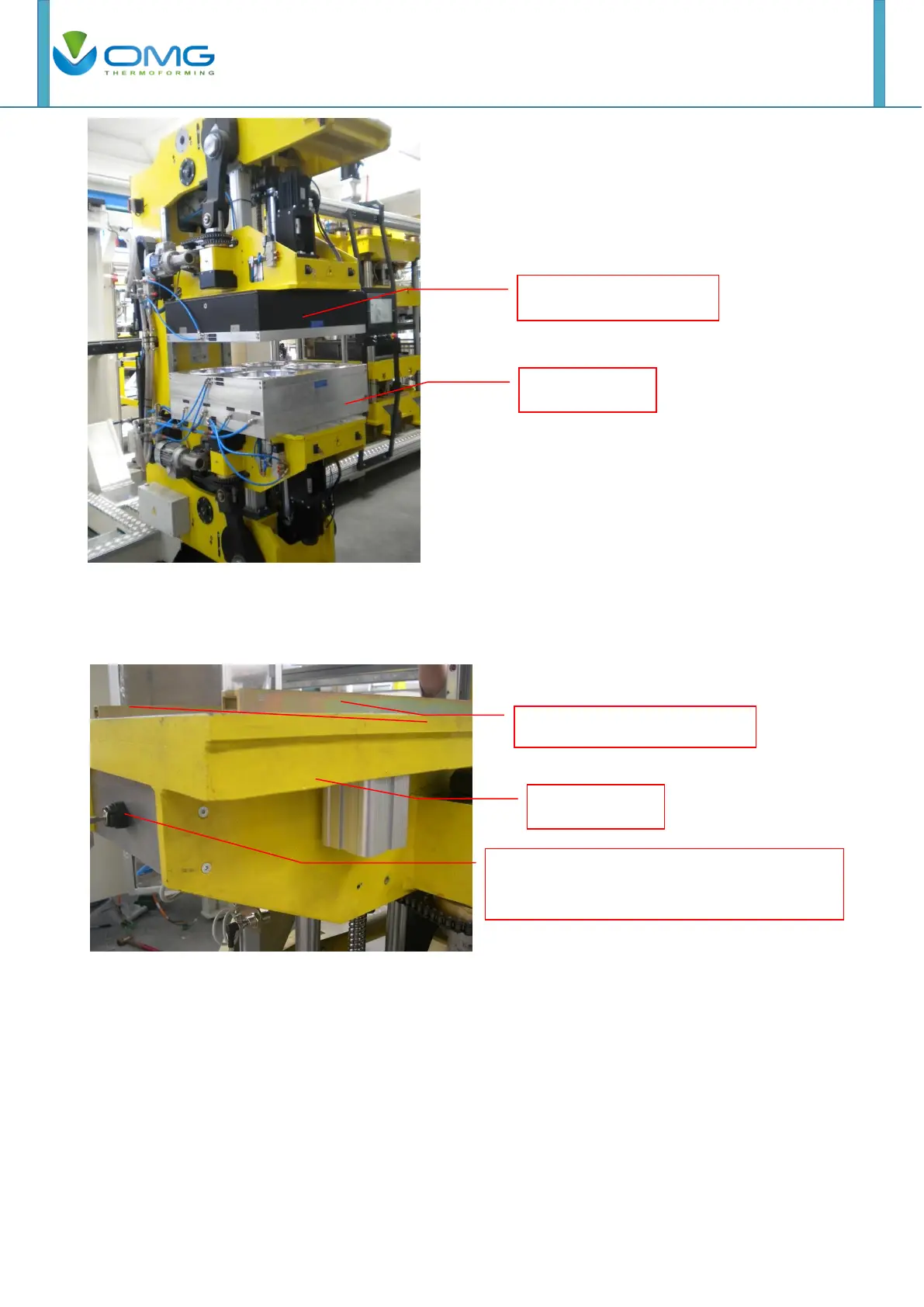

Lower table.
Upper table.
Lower table
Pneumatic key to lock and unlock tooling.
Rails to lock the upper tool.
