6.5 Technical Data of the Communication Ports
The first versions of the CMC 356 test sets were delivered with a NET-1
board that contained two different Ethernet ports: ETH1, a10/100Base-TX
Ethernet port and ETH2, a 100Base-FX (optical fiber) Ethernet port.
With the introduction of the front panel control device CMControl, the
CMC 356 test sets were then equipped with a NET-1B board that contained
two identical 10/100Base-TX PoE (Power over Ethernet) Ethernet ports
ETH1 and ETH2.
Today, the standard interface is the NET-1C board that, in addition to ETH1
and ETH2, provides an additional USB port.
CMC 356 test sets with NET-1 board can be upgraded with the new NET-1C
board to be able to communicate with the new CMControl and have
Ethernet as well as USB access at the same time.
6.5.1 The NET-1C Board

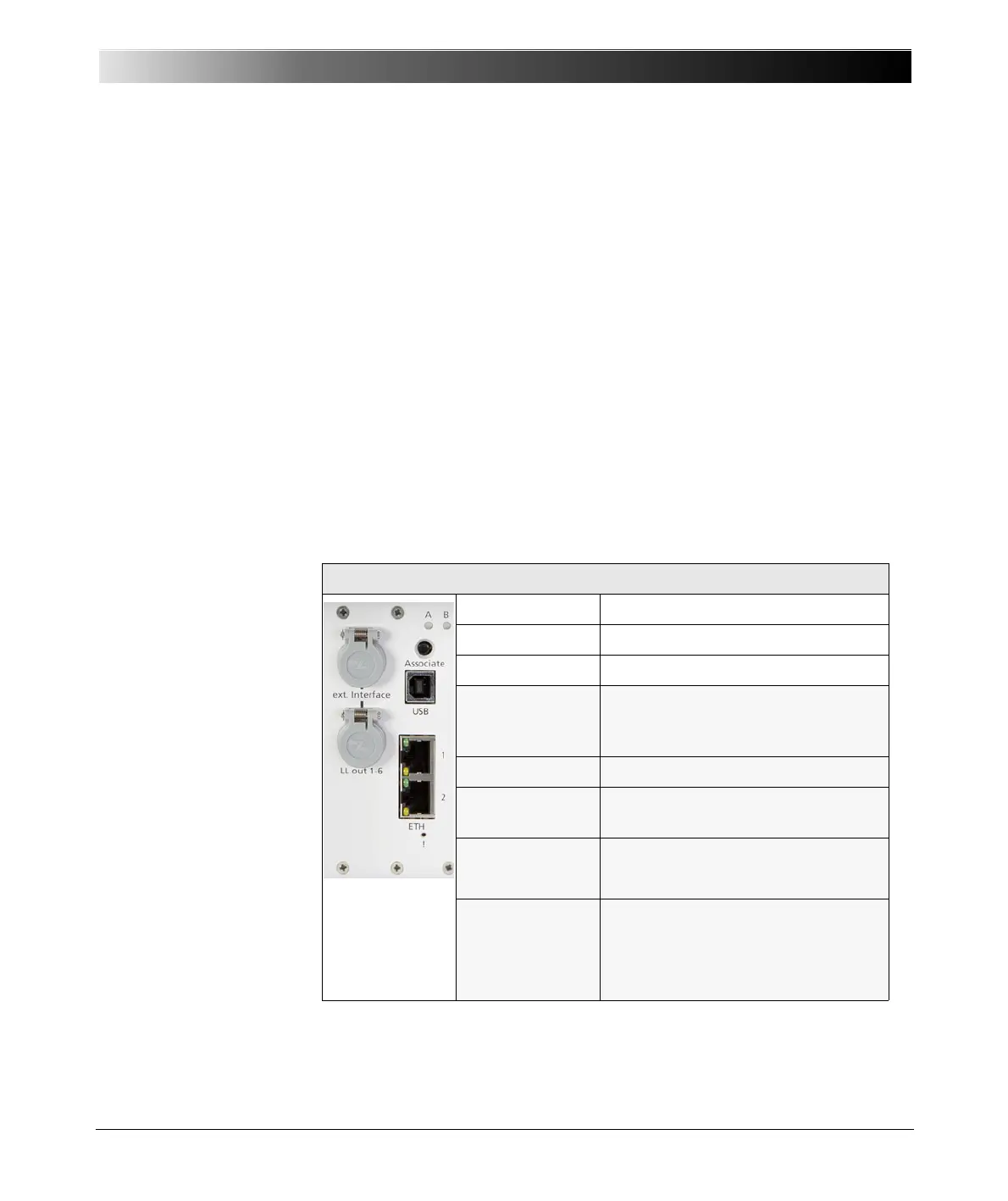

Table 6-21:
Technical data of the
NET-1C communication
ports USB and
ETH1/ETH2
NET-1C: USB port and Ethernet ports ETH1/ETH2
USB type USB 2.0 full speed up to 12 Mbit/s
USB connector USB type B
USB cable 2 m USB 2.0 high speed type A-B
ETH type 10/100Base-TX (10/100Mbit,
twisted pair, auto-MDI/MDIX or
auto-crossover)
ETH connector RJ45
ETH cable type LAN cable of category 5 (CAT5)
or better
ETH status
indication
Green LED: physical link present
Yellow LED: traffic on interface
ETH Power over
Ethernet (PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1
(3.84 W) and one Class 2 (6.49 W)
power device.
