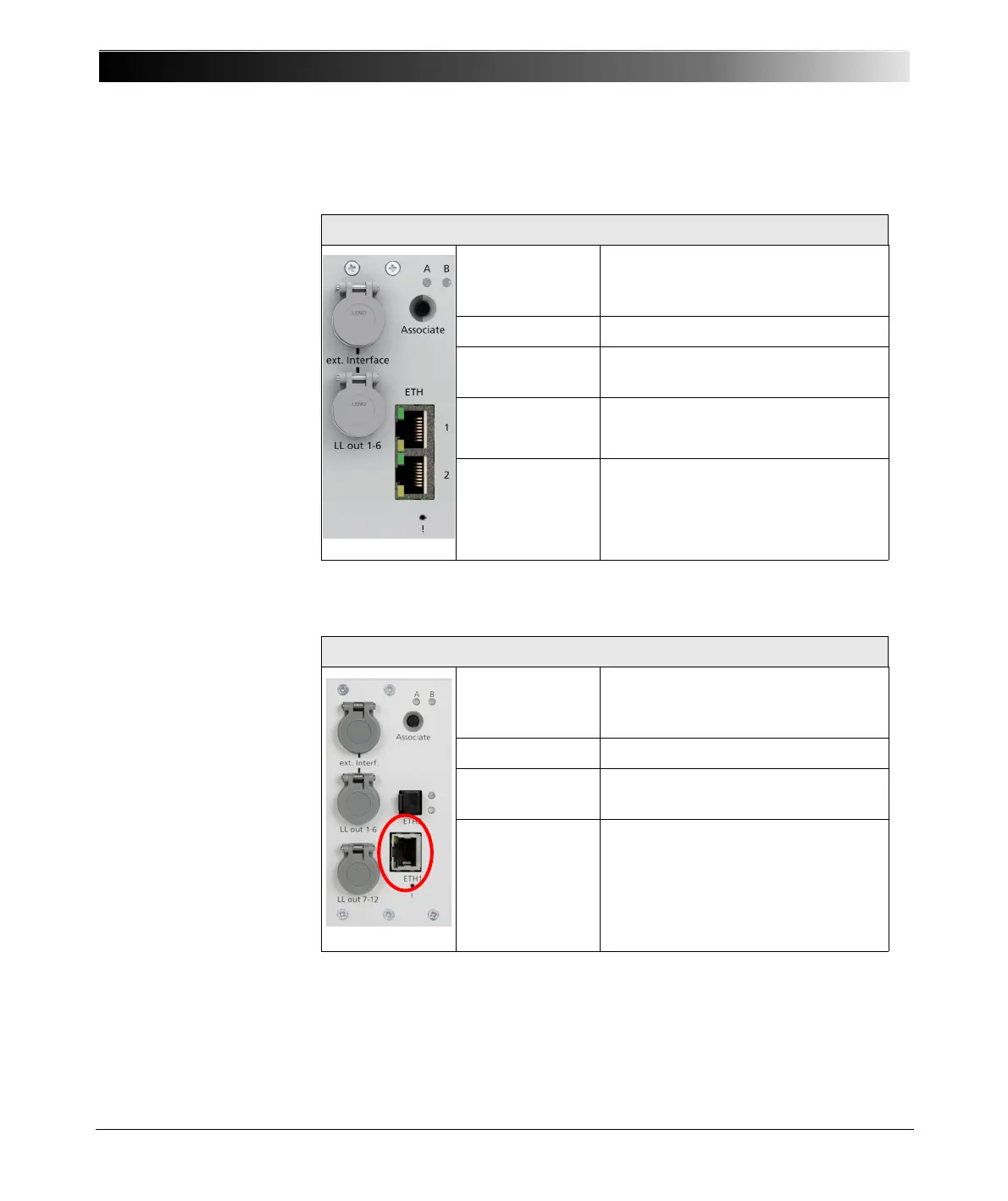

6.5.2 The NET-1B Board
Table 6-22:
Technical data of the
NET-1B communication
ports ETH1 and ETH2
6.5.3 The NET-1 Board
Table 6-23:
Technical data of the
NET-1 communication port
ETH1
NET-1B: Ethernet ports ETH1/ETH2
Type 10/100Base-TX (10/100Mbit,
twisted pair, auto-MDI/MDIX or
auto-crossover)
Connector RJ45
Cable type LAN cable of category 5 (CAT5)
or better
Status indication Green LED: physical link present
Yellow LED: traffic on interface
Power over
Ethernet (PoE)
IEEE 802.3af compliant.
Port capability limited to one Class 1
(3.84 W) and one Class 2 (6.49 W)
power device.
NET-1: Ethernet port ETH1
Type 10/100Base-TX (10/100Mbit,
twisted pair, auto-MDI/MDIX or
auto-crossover)
Connector RJ45
Cable type LAN cable of category 5 (CAT5)
or better
Status indication Green LED: physical link present
Yellow LED: traffic on interface
