CMC 356 Reference Manual
96
7.2 Single-Phase Operation of the CMC 356
7.2.1 1 x 32 A High Burden Mode (L-L-L-L)
1 x 0 ... 32 A (±45 A
DC
), max. 140 V
peak
, 1 x 1740 VA at 25 A
Both amplifier groups CURRENT OUTPUT A and CURRENT OUTPUT B
are connected in series. The currents 1 and 2 of a group are phase-
opposite. This results in four times the compliance voltage of a single
output.
Observe the safety instructions given in Section 7.1 on page 95 when using
this operating mode.

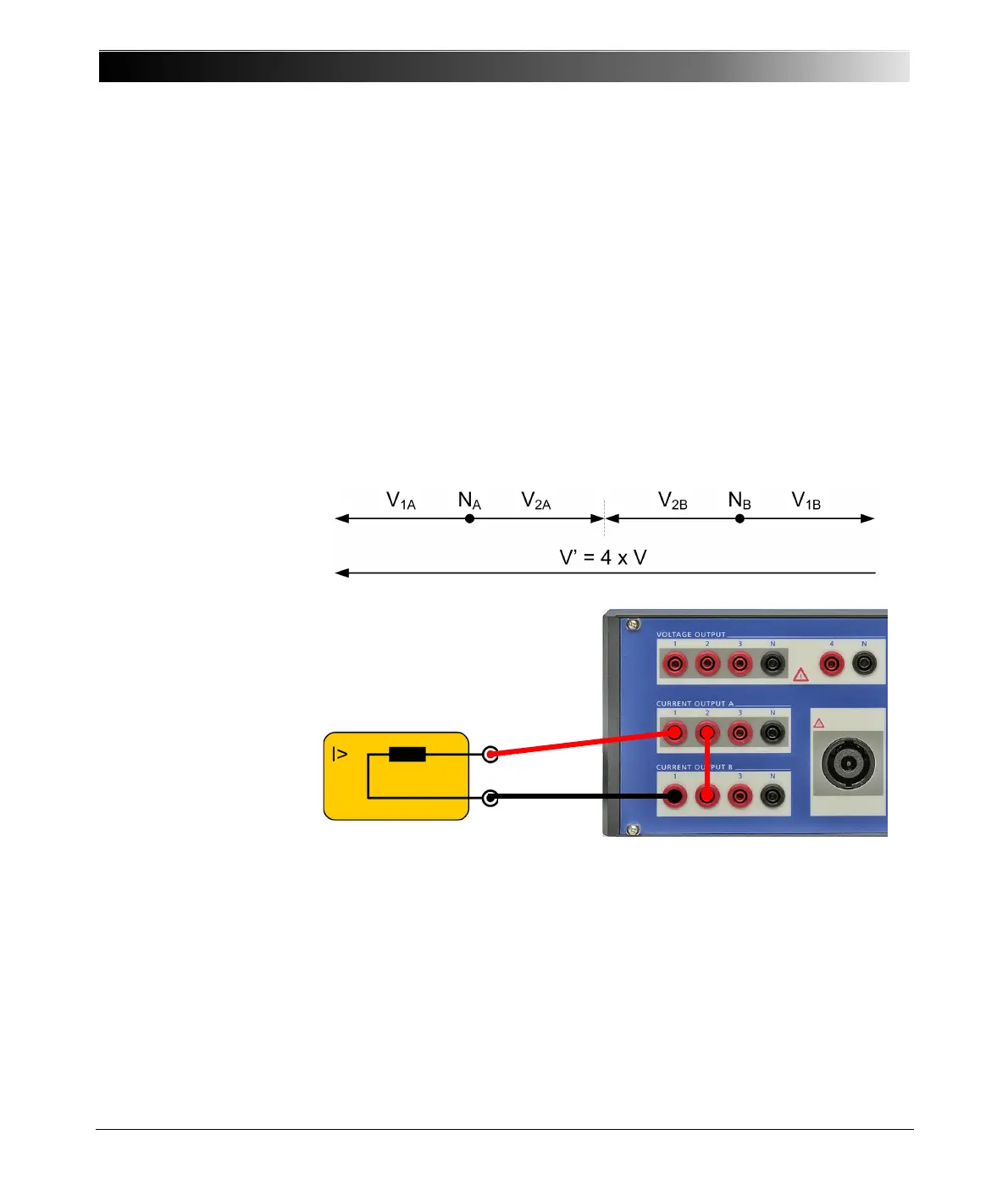

Figure 7-1:
Single-phase operation,
1 x 32 A high burden mode
Refer to the output curves shown in the figures 6-1 through 6-5 in section
6.3.2, "Current Outputs" on page 45.
