Omicron CMC 356 User Manual

CMC 356 Reference Manual
58
6.3.7 Binary Output Relays

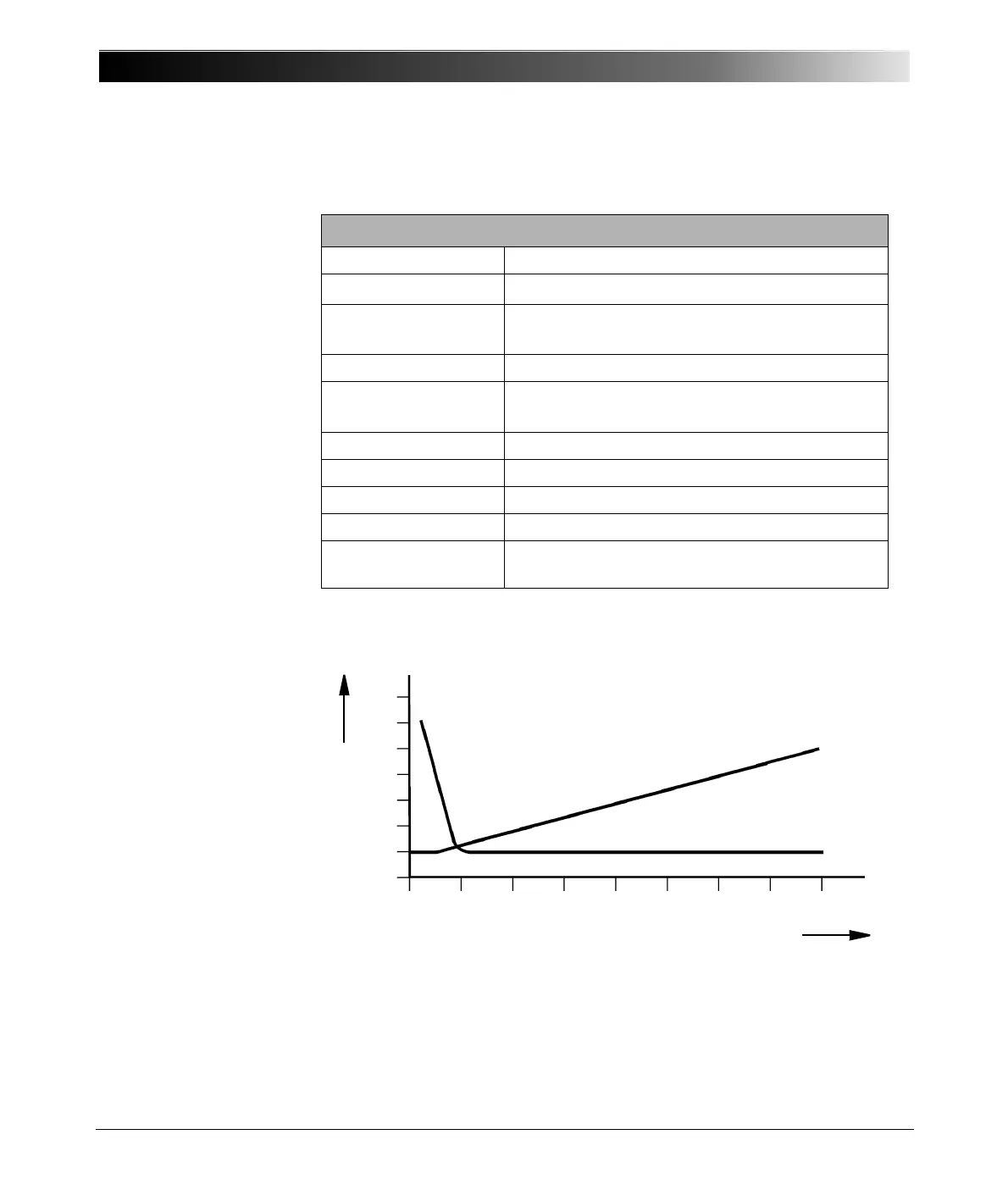

Table 6-14:
Data of binary output
relays
The accompanying diagram shows the load limit curve for DC voltages. For
AC voltages, a maximum power of 2000 VA is achieved.
Figure 6-12:
Load limit curve for relays
on the binary outputs with
DC voltages
4 Binary Output Relays (Binary Outputs 1-4)
Type Potential-free contacts; software-controlled
AC loading V
max
300 VAC; I
max
8 A; P
max
2000 VA
DC loading V
max
300 VDC; I
max
8A; P
max
50 W
(refer to load limit curve)
Switch-on current 15 A (max. 4 s at 10 % duty-cycle)
Electrical lifetime 100 000 switching cycles at 230 V
AC
/ 8 A and
ohmic load
Pickup time Approx. 6 ms
Fall back time Approx. 3 ms
Bounce time Approx. 0.5 ms
Connection 4 mm/0.16 " banana sockets
Insulation Reinforced insulation from all SELV interfaces and
from power supply.
350
300
250
200
150
100
50
0
UinV / PinW
Current in A
012 345678
P
U
