Technical Data
57

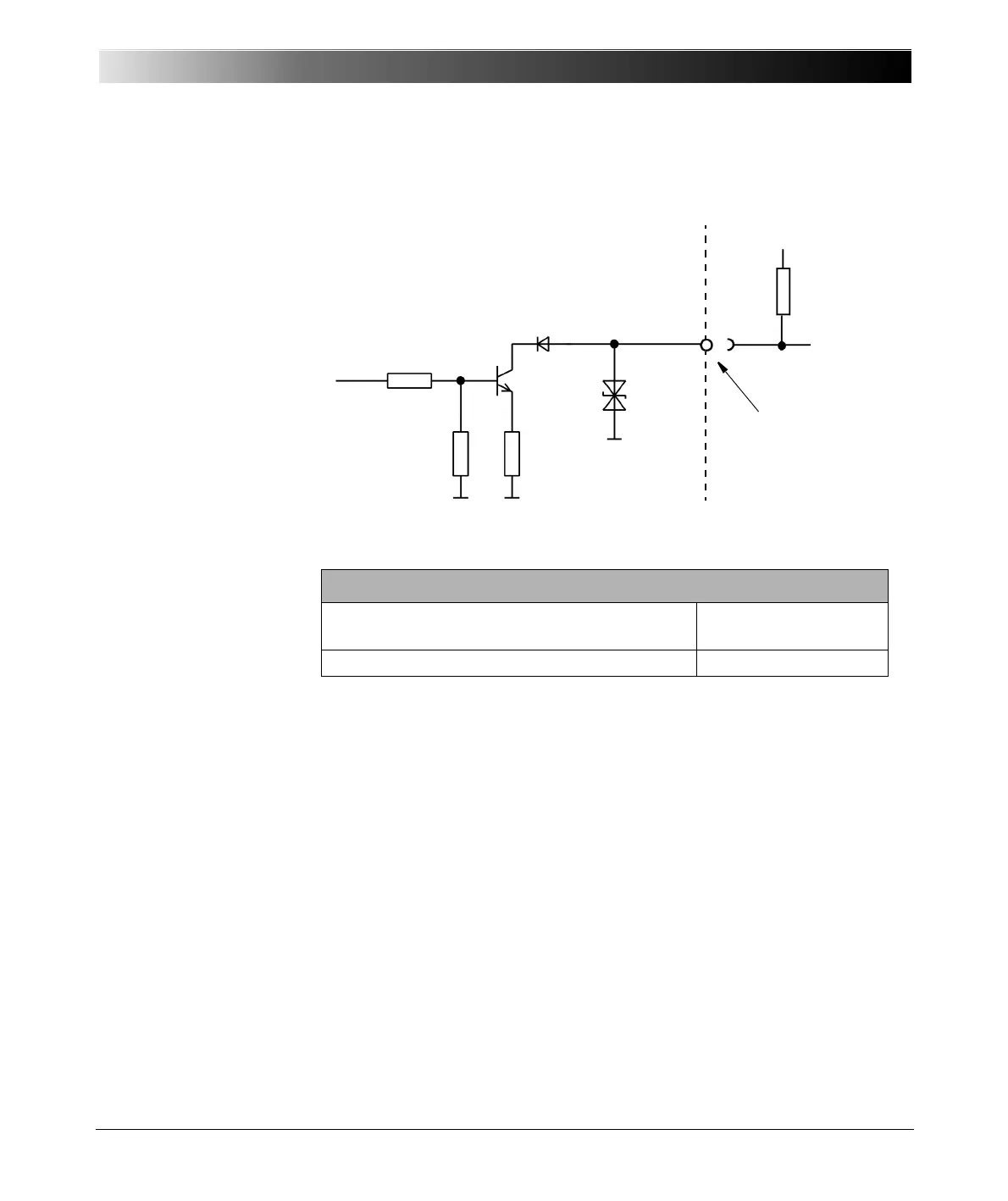

Figure 6-11:
Circuit diagram of
"ext. Interf." binary
transistor outputs 11
- 14
Table 6-13:
Ordering Information
For a manufacturer description about the connection sockets "LL out" and
"ext. Interf.", visit the Web site www.lemo.com.
Rear side
of CMC 356
R
pullup
Inside of CMC 356
16 V
47
Ω6.8 kΩ
22 kΩ
V
extern
= 5 ... 15 V
Binary outputs 11 ... 14
"ext. Interf."
Ordering Information
Connector for one guide notch and pull relief
(for "ext. Interf")
FGG.2B.316.CLAD 72Z
Black anti-bend cable cover GMA.2B.070 DN
