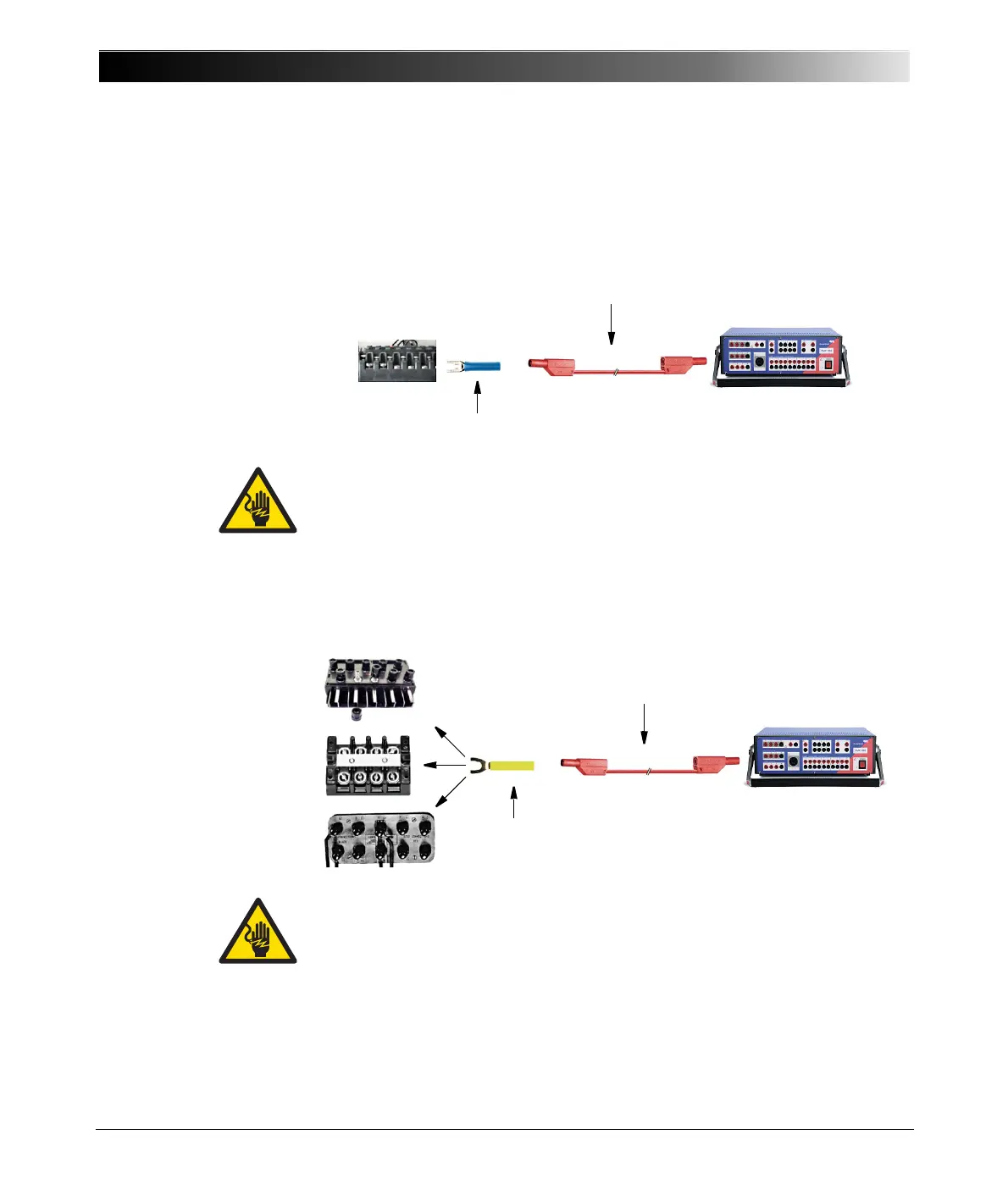

3.3.2 M4 (0.15") Cable Lug Adapters
The optional CMC Wiring Accessory Package includes M4 (0.15") cable lug
adapters to connect regular test leads to screw-clamp terminals of
SEL/ABB/GE relays (and others).
The cable lugs have blank ends. Therefore, turn off the voltage before
connecting such a lug. Always insert the cable lug with its blank end into the
terminal strip first, and fasten it, before connecting it to a test lead.
3.3.3 M5 (0.20") Cable Lug Adapters
The optional CMC Wiring Accessory Package includes M5 (0.20") cable lug
adapters to connect regular test leads to common and most widespread
screw-clamp terminal types.
The cable lugs have blank ends. Therefore, turn off the voltage before
connecting such a lug. Always insert the cable lug with its blank end into the
terminal strip first, and fasten it, before connecting it to a test lead.
↔
Regular test lead
M4 (0.15") cable lug adapter
↔
Regular test lead
M5 (0.20") cable lug adapter
