CMC 356 Reference Manual
32
5.1.1 Generator Combination Socket for VOLTAGE OUTPUT and
CURRENT OUTPUT
The combination socket CURRENT OUTPUT / VOLTAGE OUTPUT
simplifies the connection of test objects to the CMC 356. The three voltage
outputs (VOLTAGE OUTPUT 1-3) as well as the CURRENT OUTPUT A are
wired to the combination socket (refer to table 5-1 on page 33).

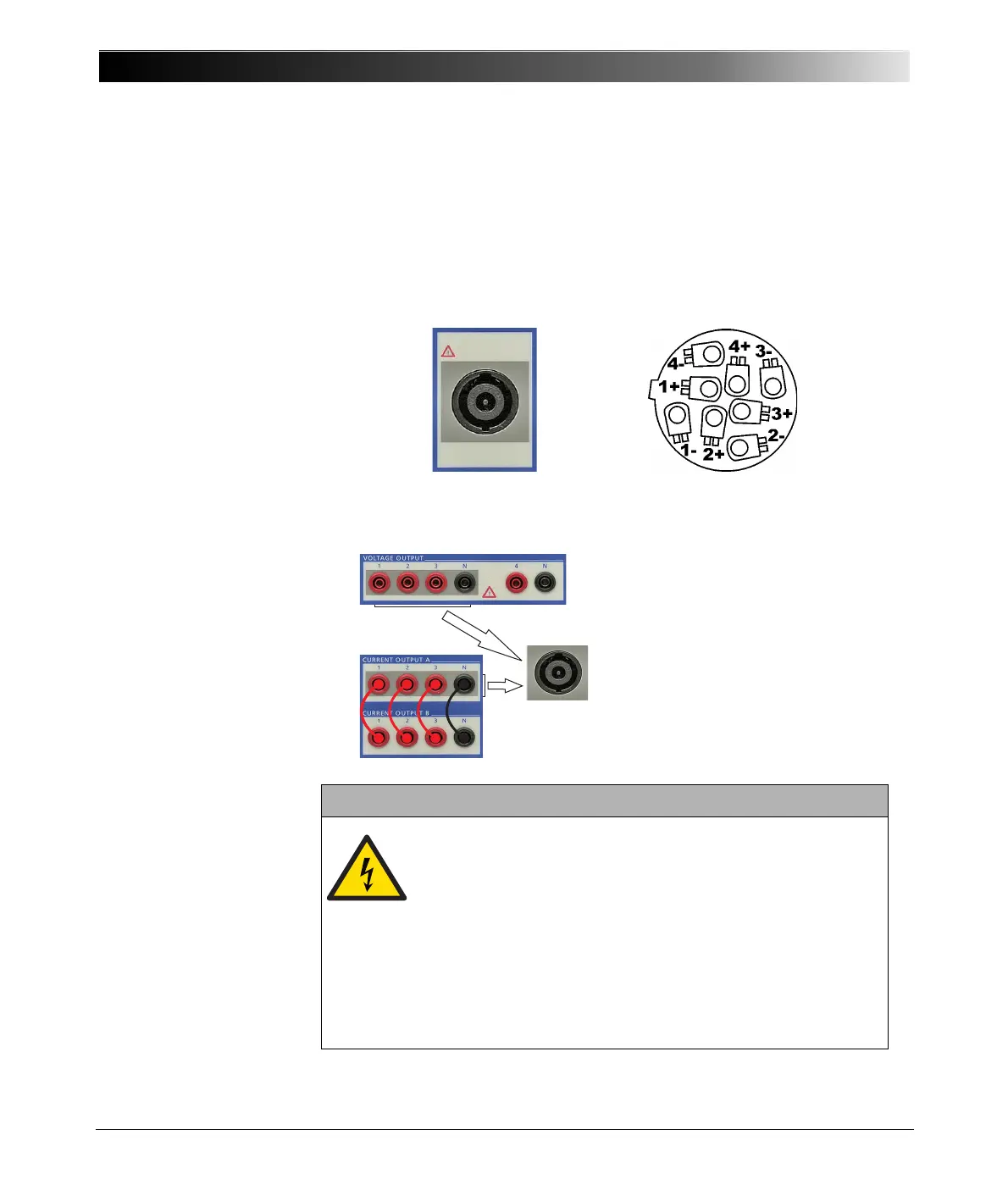

Figure 5-4:
Generator combination
socket
Figure 5-5:
CURRENT OUTPUT A
and B wired to the
combination socket
Front view View onto the connector from
the rear cable wiring side
WARNING:
The connections on the socket are dangerous when the test
set is turned on.
Follow the safety information provided at the beginning of this
manual when connecting the generator combination sockets.
If a dangerous voltage (greater than 42 V) is applied to the socket, a
warning indicator lights above the socket.
For currents greater than 25 A, the test object (load) should be exclusively
connected to the 4 mm/0.16 " banana sockets and not on the generator
connection socket.
The combination socket can
also be used to connect to
CURRENT OUTPUT A and B
(wired in parallel).
