CMC 356 Reference Manual
34
5.2 Connections on the Back Panel

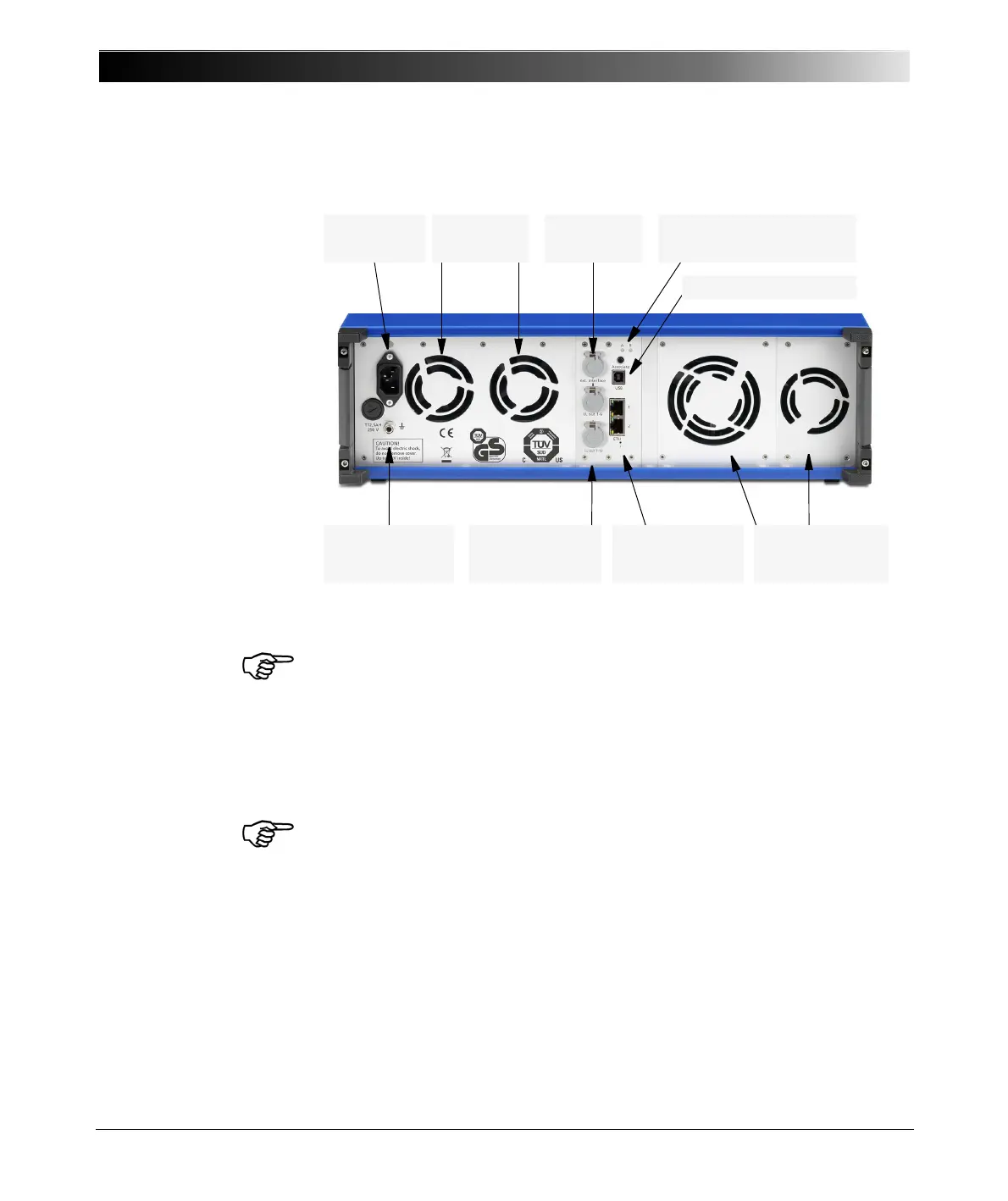

Figure 5-6:
Rear view of
CMC 356
The SELV interface LL out 7 - 12 is optional. Please refer to section 6.12,
"Option LLO-2 (Low Level Outputs)" on page 94.
5.2.1 USB Port
The test set’s standard interface NET-1C board holds a USB port to connect
the CMC 356 to your computer. To ensure the required EMC compatibility,
we strongly recommend to use the OMICRON-supplied cable, only.
Note that a Test Universe software of version 3.0 (or later) plus the matching
CMC firmware is required for the USB port to work.
For the technical data of the USB port, refer to 6.5.1, "The NET-1C Board"
on page 65.
*) To connect to low resistance grounding bars, for example.
Fans for
power supply
Power supply
Fuse T12.5 AH
Interface
"ext. Interf."
4 mm/0.16 " socket
for additional
PE connection
*)
Interfaces
“LL out 1 - 6” and
“LL out 7 - 12”
Ethernet ports
ETH1 & ETH2
and "!" button
Fans:
Current outputs (left)
Voltage outputs (right)
USB port for PC connection
Status LEDs A & B
"Associate" button
