7.3 Two-Phase Operation
For some applications it is beneficial to have two independent currents,
each higher than 32 A
rms
, or a higher compliance voltage available.
7.3.1 2x64A High Current Mode (LL-LN)
2 x 0 ... 64 A (±90 A
DC
), max. 35 V
peak
, 2 x 500 VA at 40 A
Since the current over the N socket is limited to 32 A
rms
(45 A
DC
), the third
phase is used to support the N socket.
Observe the safety instructions given in Section 7.1 on page 95 when using
this operating mode.

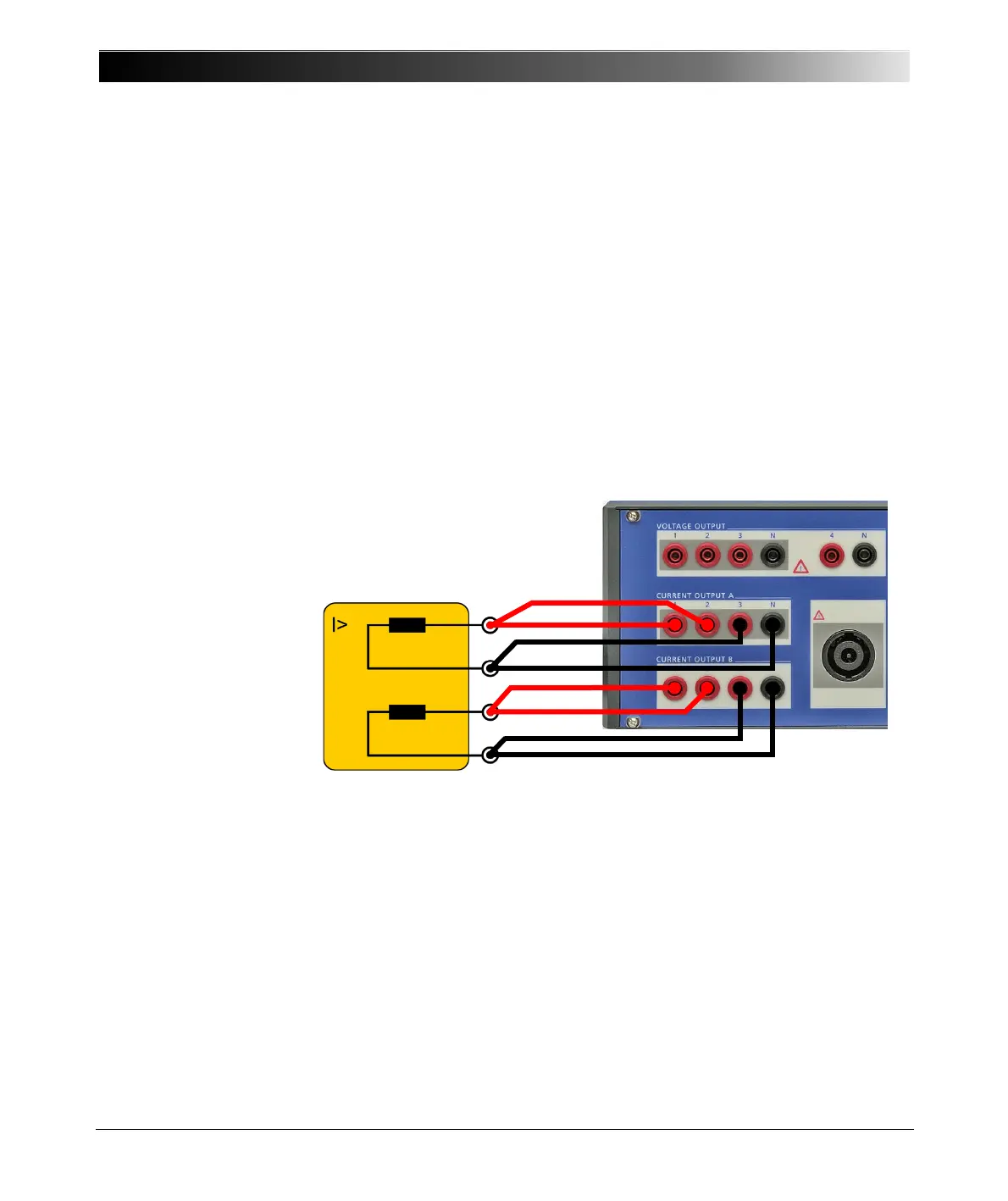

Figure 7-6:
Two-phase operation,
2 x 64 A high current mode
Load
1’
N
1
’
2’
N
2
’
