5CONNECTIONS AND INTERFACES
5.1 Front Panel Connections

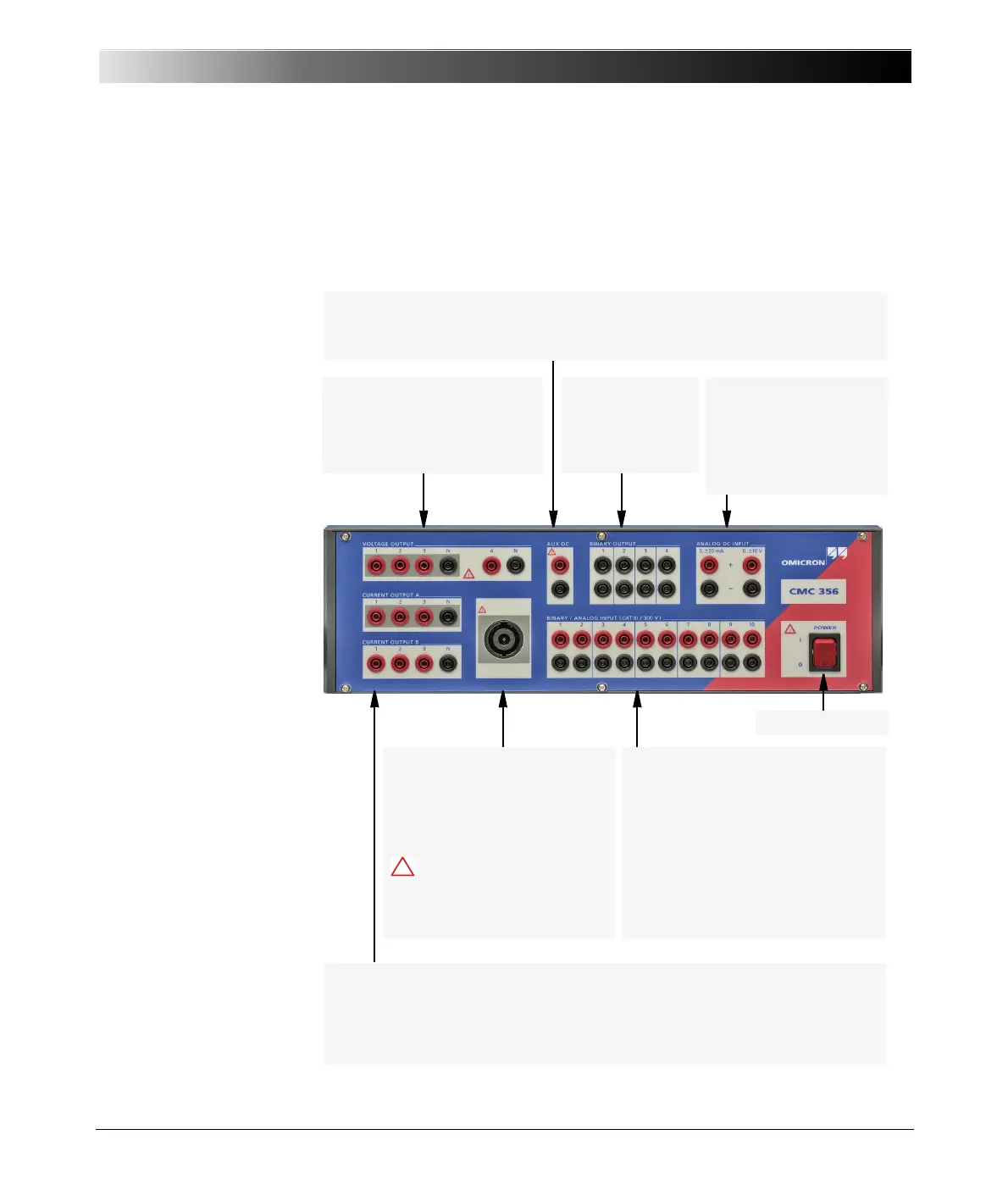

Figure 5-1:
Front view of the CMC 356
AUX DC
Output voltage in 3 ranges from 0 - 264 V; used to supply power to test objects.
VOLTAGE OUTPUT
4x300V
rms
output of the
internal voltage amplifier;
outputs 1 - 3 also applied to the
generator combination socket.
BINARY OUTPUT
Four potential-free
relay contacts.
ANALOG DC INPUT
(with option ELT-1 only)
0-±1mA / 0-±20mA:
DC current inputs.
0-±10V:
DC voltage inputs.
BINARY / ANALOG INPUT
10 binary inputs in 5 galvanically
separated groups.
Hardware option ELT-1:
The inputs can be configured as
analog measurement inputs. Without
option ELT-1 only binary inputs are
available.
CURRENT OUTPUT
Group A: 3x32A
rms
output of the internal current amplifier; also applied to the
generator combination socket.
Group B: 3x32A
rms
output of the internal current amplifier.
Generator combination socket
8-pole combination socket for
VOLTAGE OUTPUT 1-3 and
CURRENT OUTPUT A (up to
3 × 25 A max.).
Warning indication:
Dangerous Voltage!
At least one of the output
voltages exceeds 42 V.
!
Power Switch
