Omicron CMC 356 User Manual

Connections and Interfaces
31

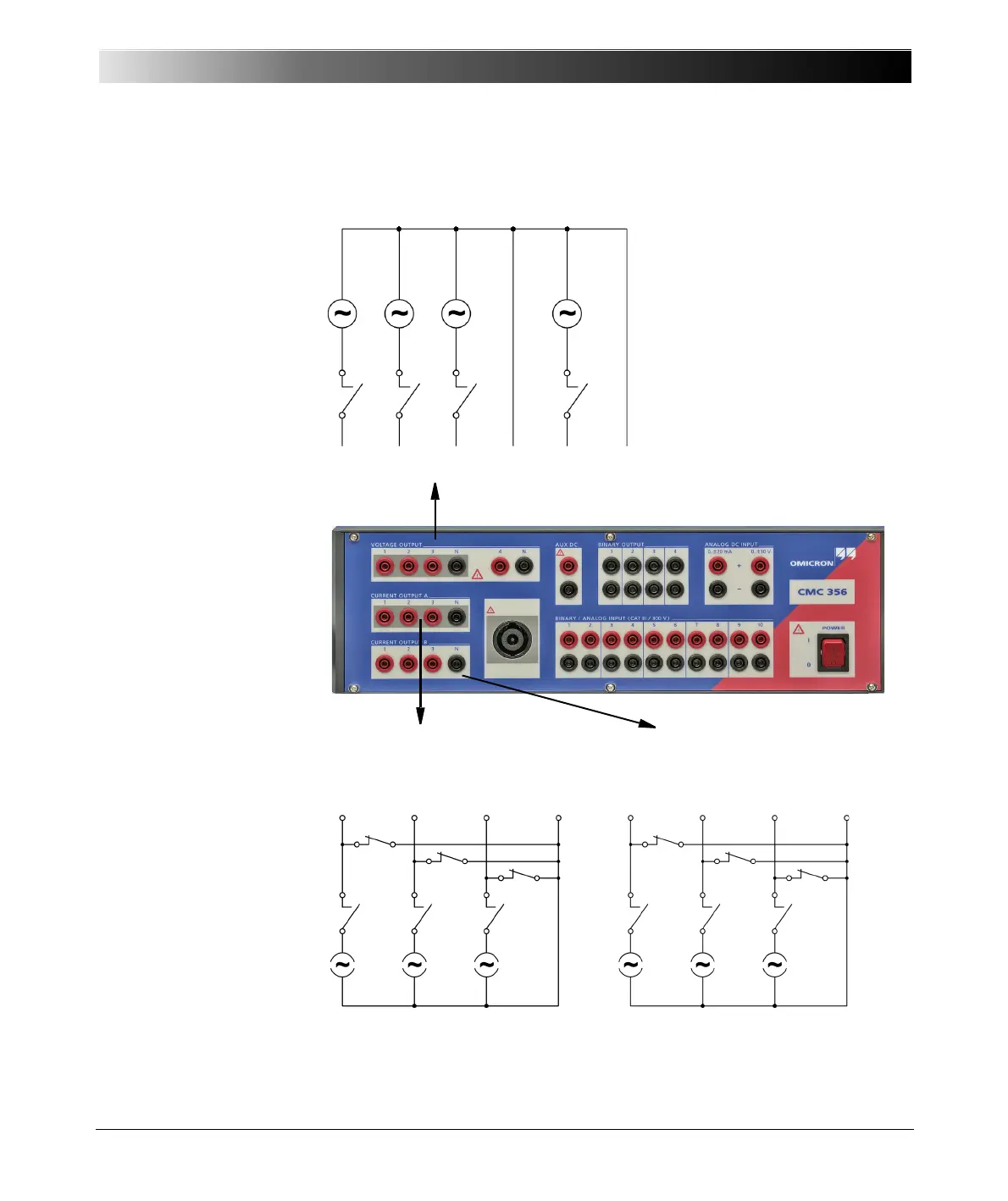

Figure 5-3:
Simplified diagrams of
current and voltage
outputs
In non-operative state, relay contacts (as illustrated in figure 5-3) protect the
current amplifier from external power by shortening the outputs to N.
VOLTAGE OUTPUT
4x300V
rms
CURRENT OUTPUT A
3x32A
rms
CURRENT OUTPUT B
3x32A
rms
123N4 N
123N
123N
