CMC 356 Reference Manual
46

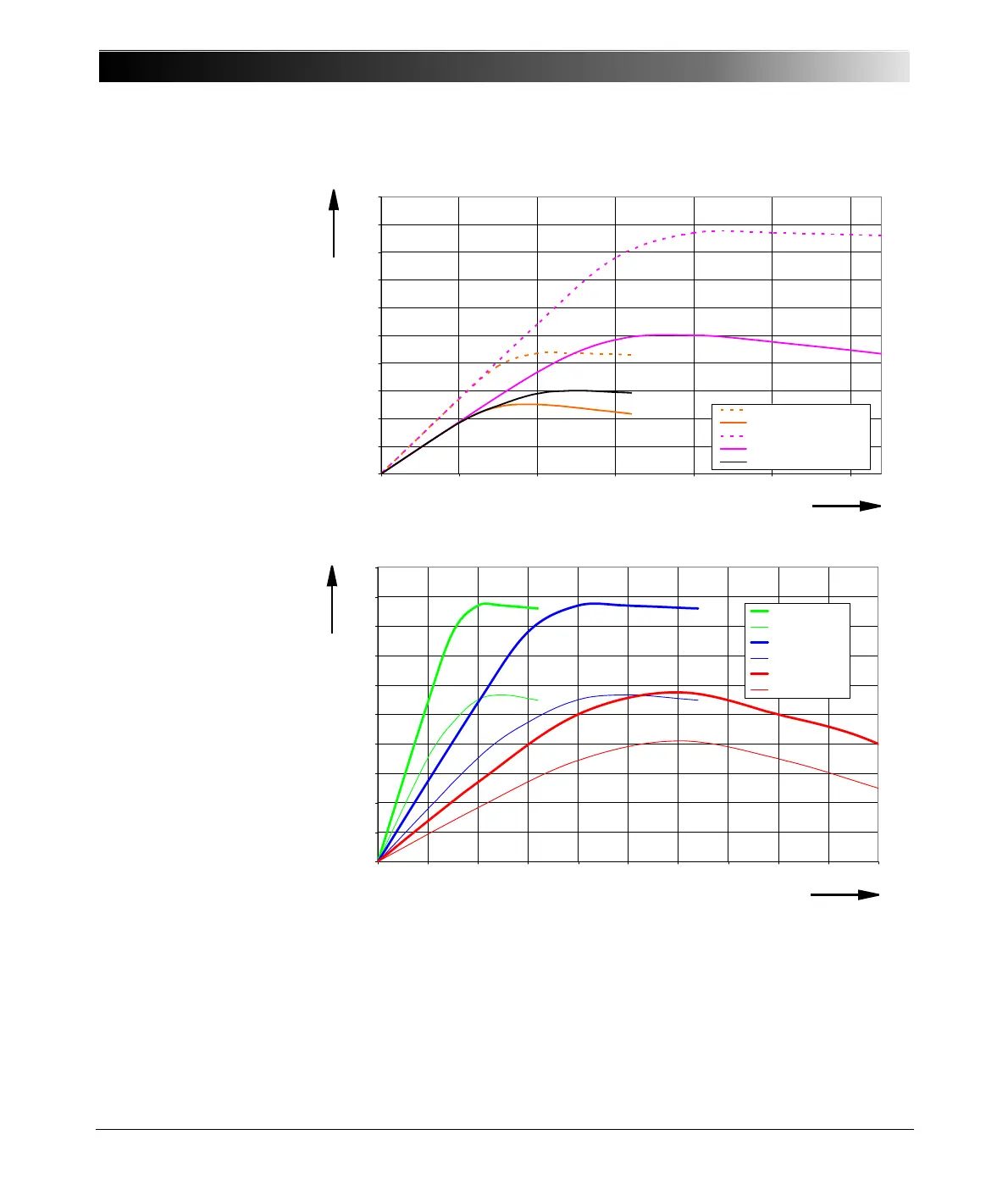

Figure 6-1:
Guaranteed output power
per phase of a group and
when groups A and B are
connected in parallel
(active power values in W
are guaranteed; apparent
power values in VA are
typical values)
Figure 6-2:
Guaranteed single phase
output power curves
(active power values in W
are guaranteed; apparent
power values in VA are
typical values)
For additional information refer to section 7.2, "Single-Phase Operation of
the CMC 356" on page 96.
0
100
200
300
400
500
600
700
800
900
1000
0 102030405060
Output Current [Arms]
Output Power per Phase [VA] / [W]
S 6~ per phase [VA]
P 6~ per phase [W]
S 3~ (A//B) per phase [VA]
P 3~ (A//B) per phase [W]
P 3~ (one triple) per phase [W]
Output current in A
rms
Output power per phase in VA / W
per phase in VA
per phase in W
(A//B) phase in VA
(A//B) phase in W
(one triple) per phase in W
0
200
400
600
800
1000
1200
1400
1600
1800
2000
0 102030405060708090100
Output Current [Arms]
Output Power [VA] / [W]
S: 32A (L-L-L-L) [VA]
P: 32A (L-L-L-L) [W]
S: 64A (L-L) [VA]
P: 64A (L-L) [W]
S: 128A (LL-LN) [VA]
P: 128A (LL-LN) [W]
Output current in A
rms
Output power in VA / W
