A
A-4 CP1L Programming Examples
SYSMAC CP1L Getting Started Guide 133
Appendix
 System Configuration

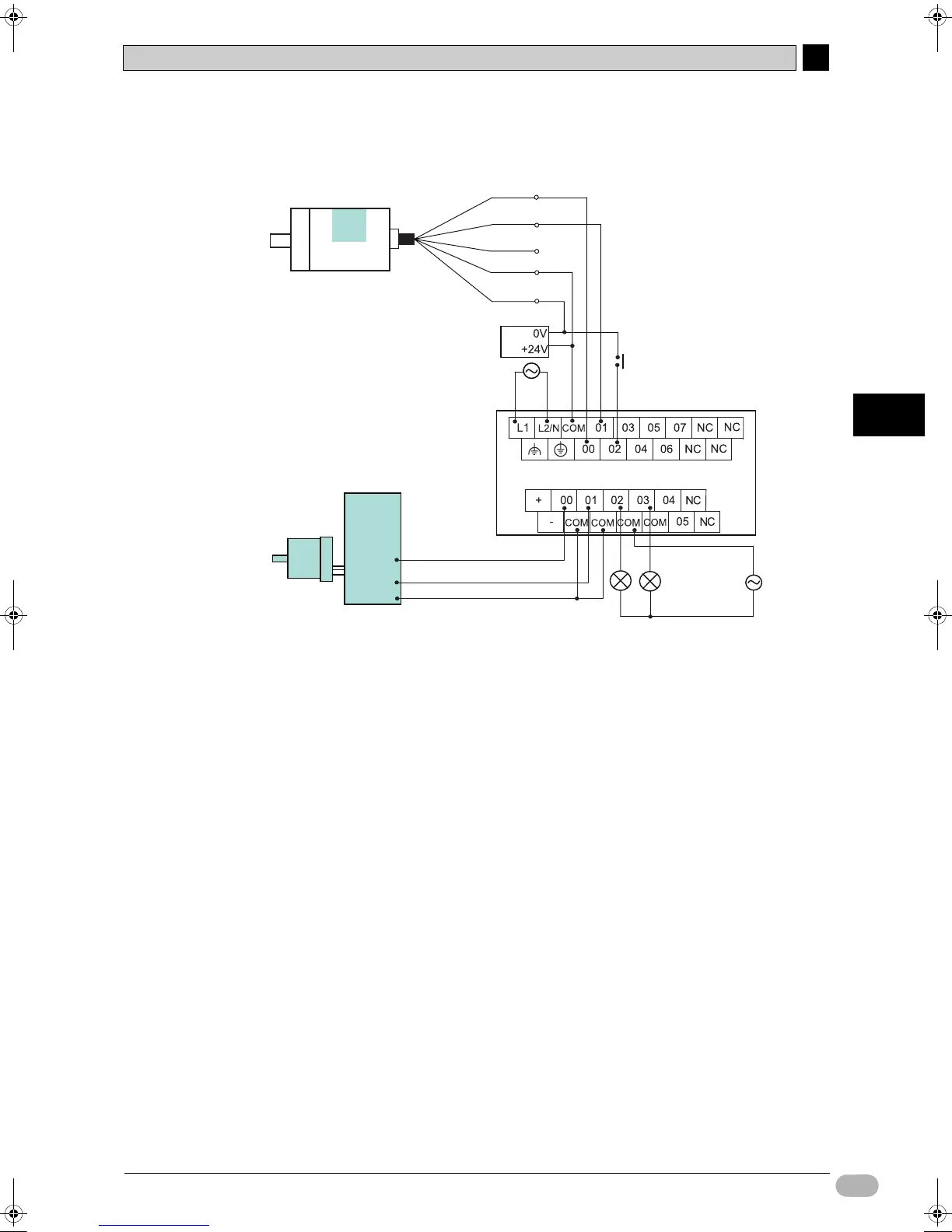

zWiring Example
Note Use the external power supply for input devices only. (It cannot be used to power
output devices.)
Phase A
Phase B
Phase C
+Vcc
0V(COM)
Encoder (power
supply: 24VDC)
E.g.: Model E6B2-CWZ6C
NPN open collector output
24VDC
AC100 ~ 240V
CP1L-L14DR-A
Start motor
0.02
Normal stop position
100.02
Error stop position
100.03
Indicator
Motor run 100.00
Motor slow 100.01
Inverter, etc.
Indicator
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 133 Montag, 15. September 2008 11:15 11
