A
A-4 CP1L Programming Examples
SYSMAC CP1L Getting Started Guide 159
Appendix

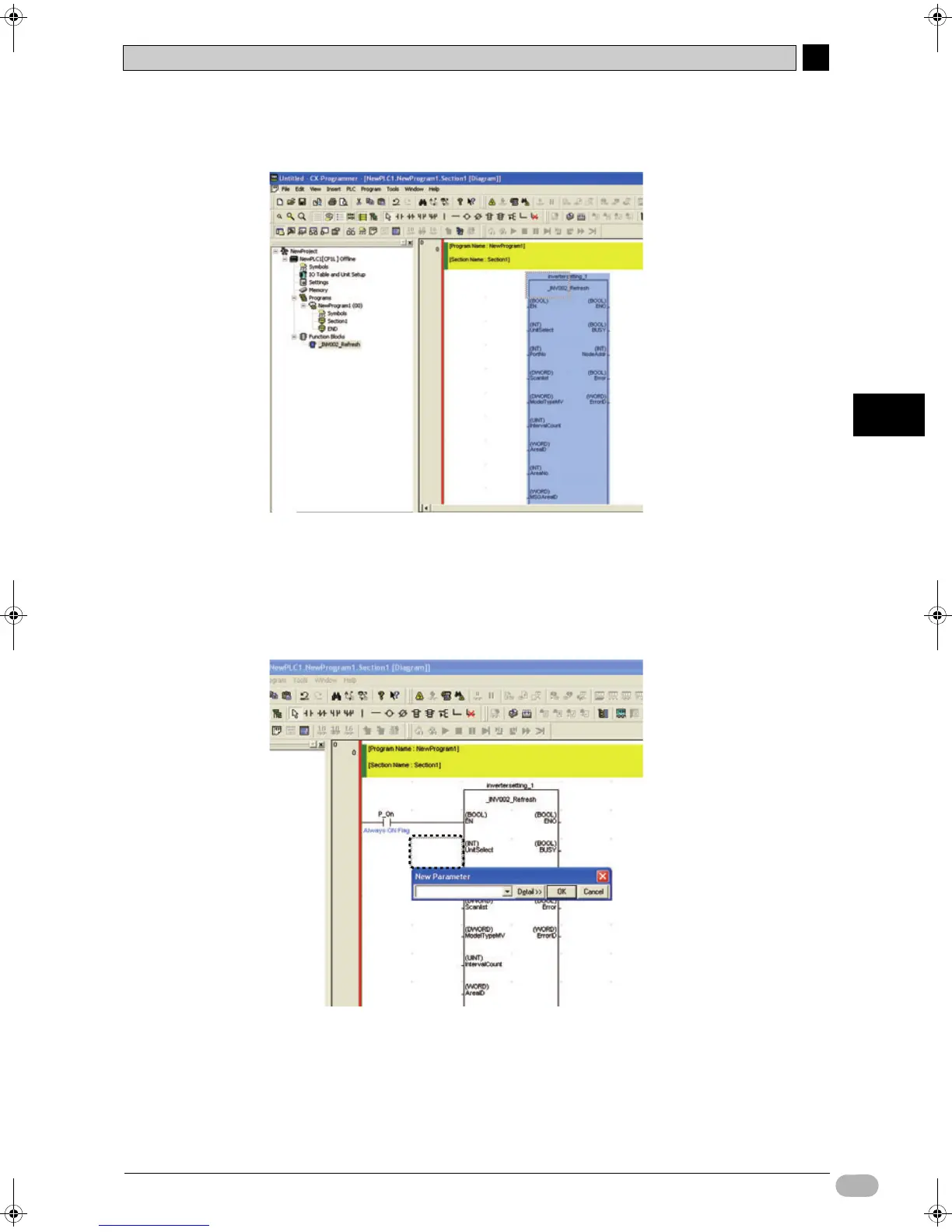

6. Input a name for FB Instance. Press the [Enter] key.
The named FB instance will be displayed.
7. Connect an input contact to the FB.
8. Set the I/O parameters for the FB.
1) Place the cursor next to an FB parameter. Press the [Enter] key.
The New Parameter dialog box will be displayed.
2) Input the parameter. Press the [Enter] key.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 159 Montag, 15. September 2008 11:15 11
