Preparing and Mounting Flat Connectors Section 4-3
4) Pressure-welding the Connector

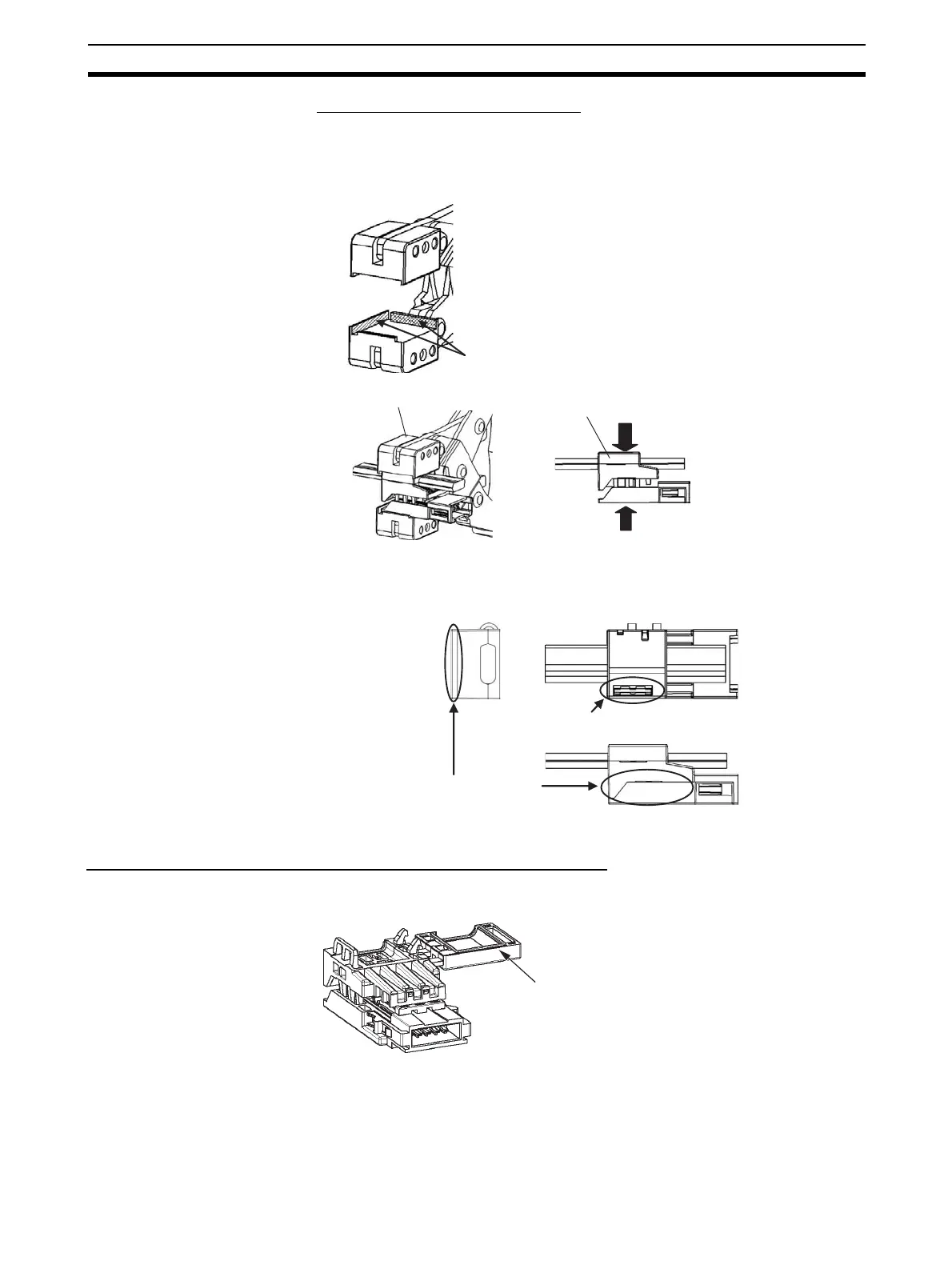

The connector is pressure-welded using the DWT-A02 Pliers.
1,2,3... 1. Align the center (see arrows) of the connector cover with the center of the
pressure-welding block on the DWT-A02 Pliers.
2. Squeeze firmly on the Pliers until the lock on the connector clicks into
place.
3. After attaching the cable, confirm that it is properly pressure-welded.
Preparing and Mounting DCN5-BR4 Flat Connector Plugs
■ Component Names
Connector position reference surfaces
Connector cover
Special tool (DWT-A02 Pliers)
Be sure there are no gaps here.
Be sure that the connector is locked.
