Transistor Remote I/O Terminals Section 4-3
4-3-5 Transistor Remote Output Terminals with 16 Points:
DRT1-OD16 (NPN) and DRT1-OD16-1 (PNP)
Output Specifications

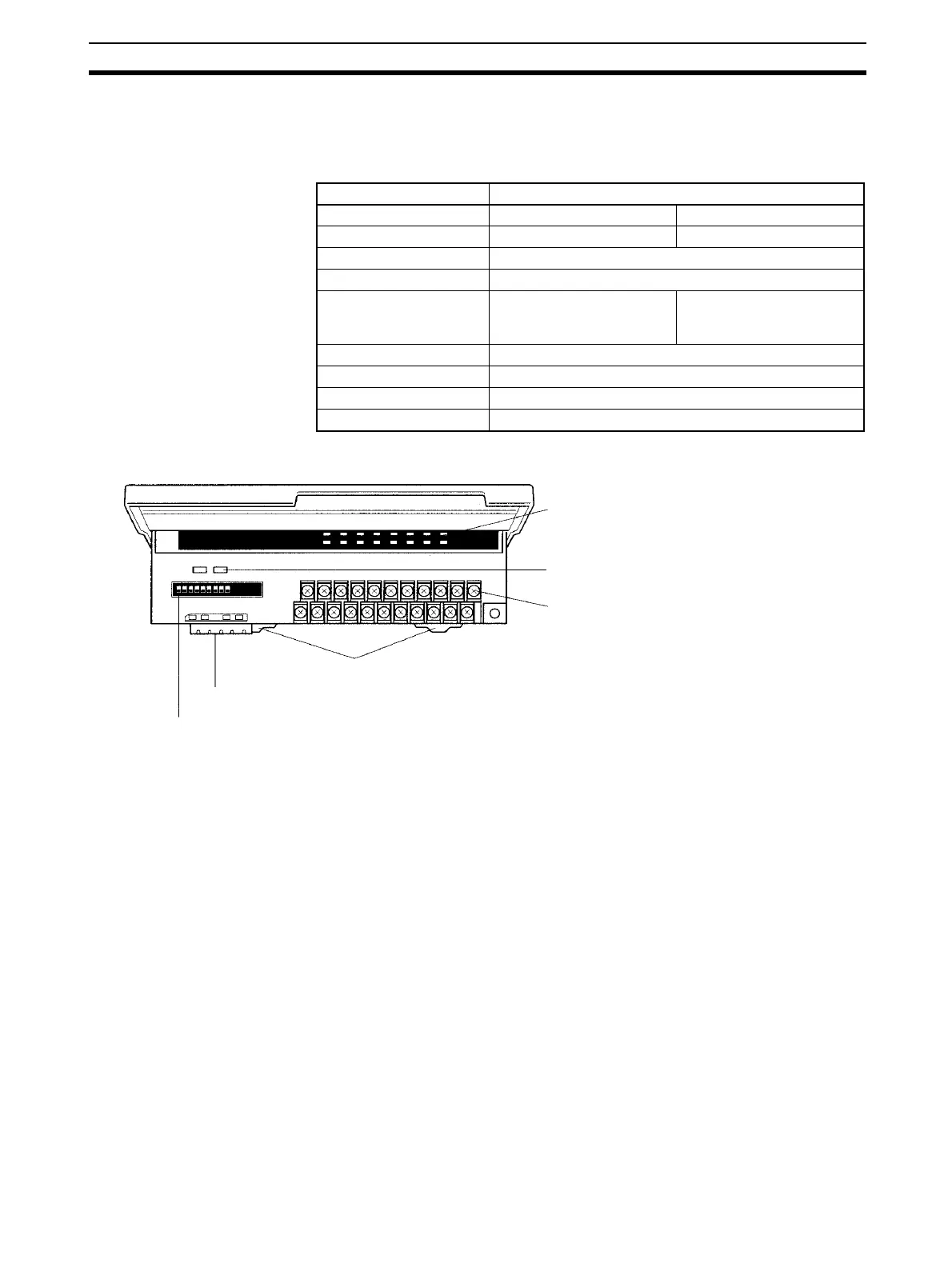

Components of the DRT1-OD16 and DRT1-OD16-1
Item Specification
Model DRT1-OD16 DRT1-OD16-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.3 A/point, 2.4 A/common
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
Output indicators
Indicate the output status of each contact. (Lit
when the output is ON.)
DIP switch
Pins 1 to 6: Node address setting
Pins 7 and 8: Baud rate setting
Pin 9: Reserved (Always OFF.)
Pin 10: Hold/Clear outputs for communications error
Terminal block
DeviceNet Indicators
DIN track mounting hooks
Communications connector
(Refer to page 312.)
(Refer to page 40.)
