Omron fh series Hardware Manual

5 Setup and Wiring
5 - 16
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
z
Mounting the DIN rail

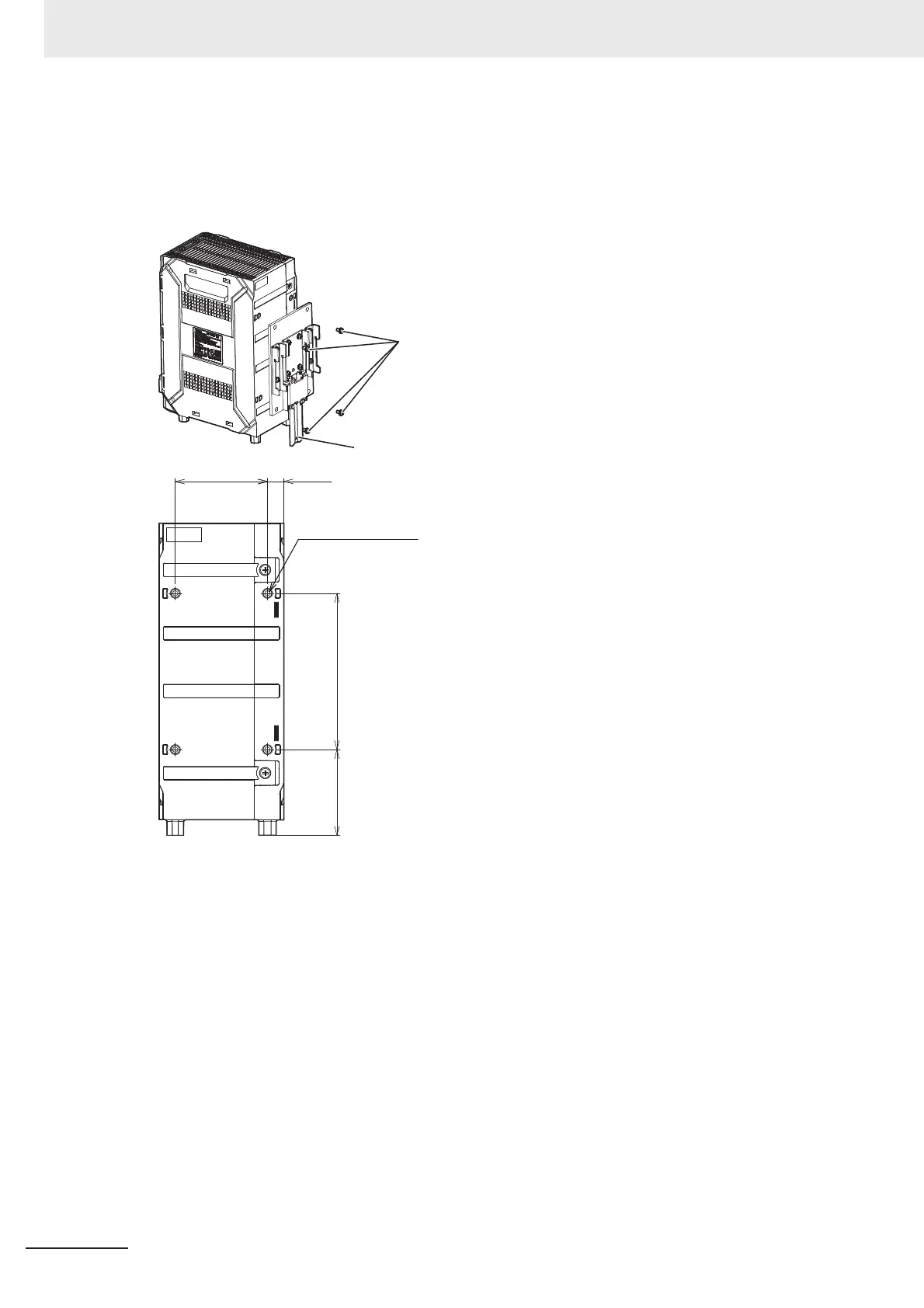

1 Mount DIN rail mounting bracket: FH-XDM-L, to the four mount holes on the back of the Sensor
Controller.
2 Mount the DIN rail.
• Recommended tightening torque: 0.54 N
•m to 0.6 N•m
• The tolerance:
±0.2 mm
Screw for Fixing
Four, M4 x 10
FH-XDM-L
10055
Four, M4 depth 6.5
59 10.5

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
