5-3 Sensor Controller Installation
5
5-3-3 FH-L Series

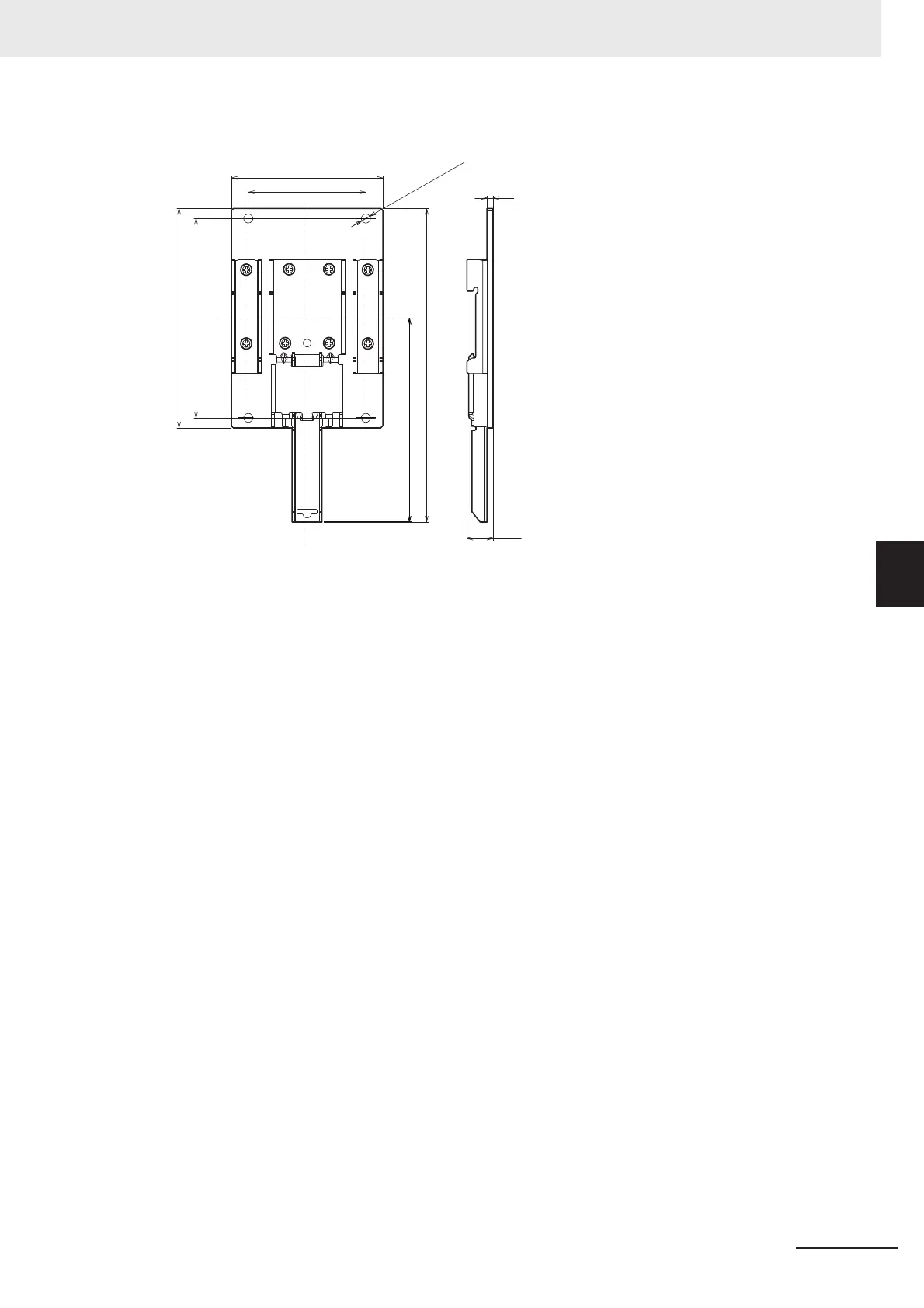

• Dimensions of DIN rail mounting bracket: FH-XDM-L
76
59
Four, 4.6 dia.
3
157.2
102.2
13
110 100
(Unit: mm)
