5 Setup and Wiring
5 - 18
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

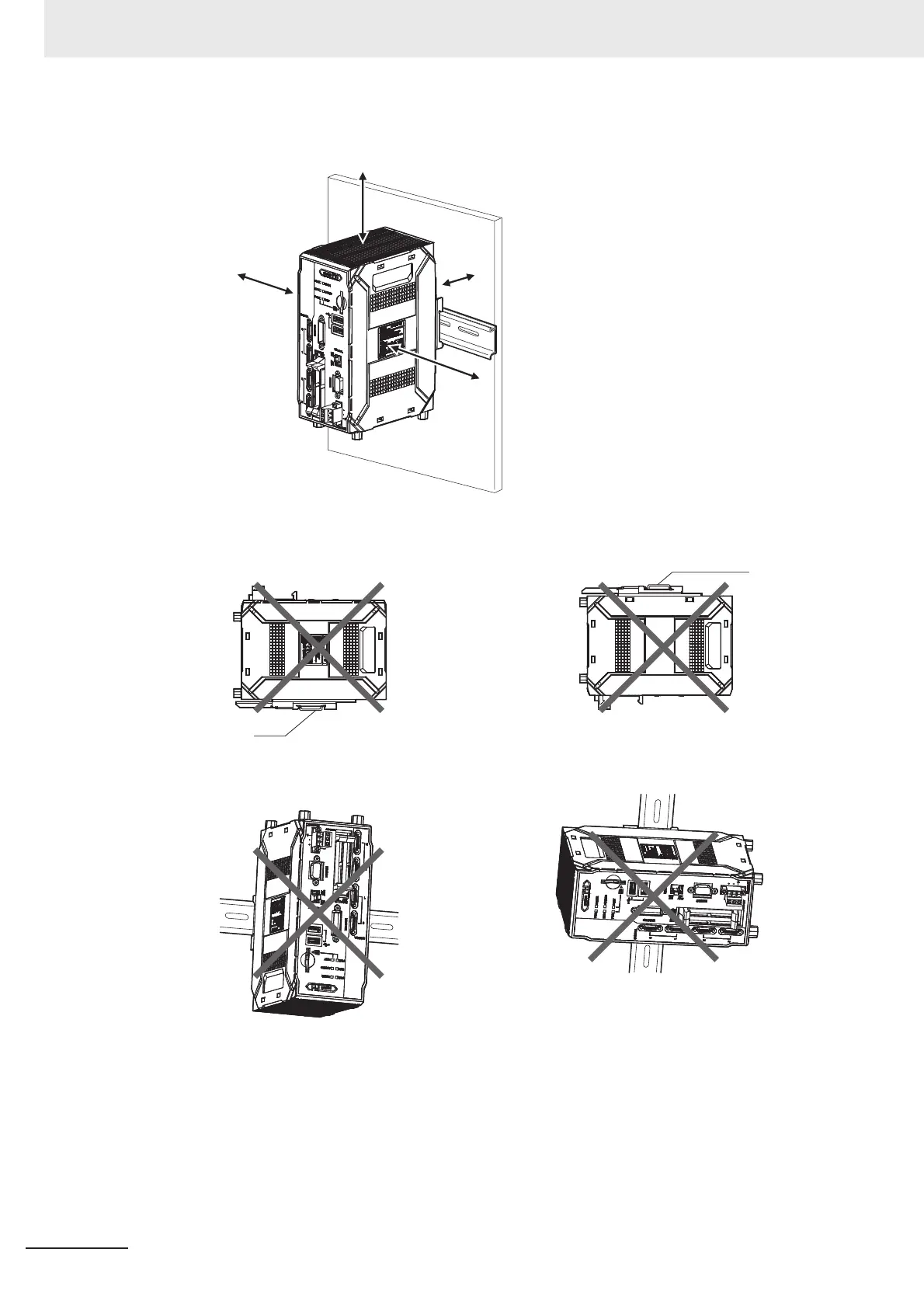

• When mounting the DIN rail, for improvement of heat dissipation, install the product in the follow-
ing orientation only.
• Do not install in this orientation.
Clearance: 50 mmClearance: 50 mmClearance: 50 mm
Clearance: 15 mmClearance: 15 mmClearance: 15 mm
Clearance: 30 mmClearance: 30 mmClearance: 30 mm
Clearance: 30 mmClearance: 30 mmClearance: 30 mm
DIN Track
Set DIN rail botton of the Sensor Controller. Set DIN rail above of the Sensor Controller.
Set DIN rail vertical of the Sensor Controller. Set DIN rail horizontal of the Sensor Controller.
DIN Track

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
