5 - 19
5 Setup and Wiring
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
5-3 Sensor Controller Installation
5
5-3-3 FH-L Series

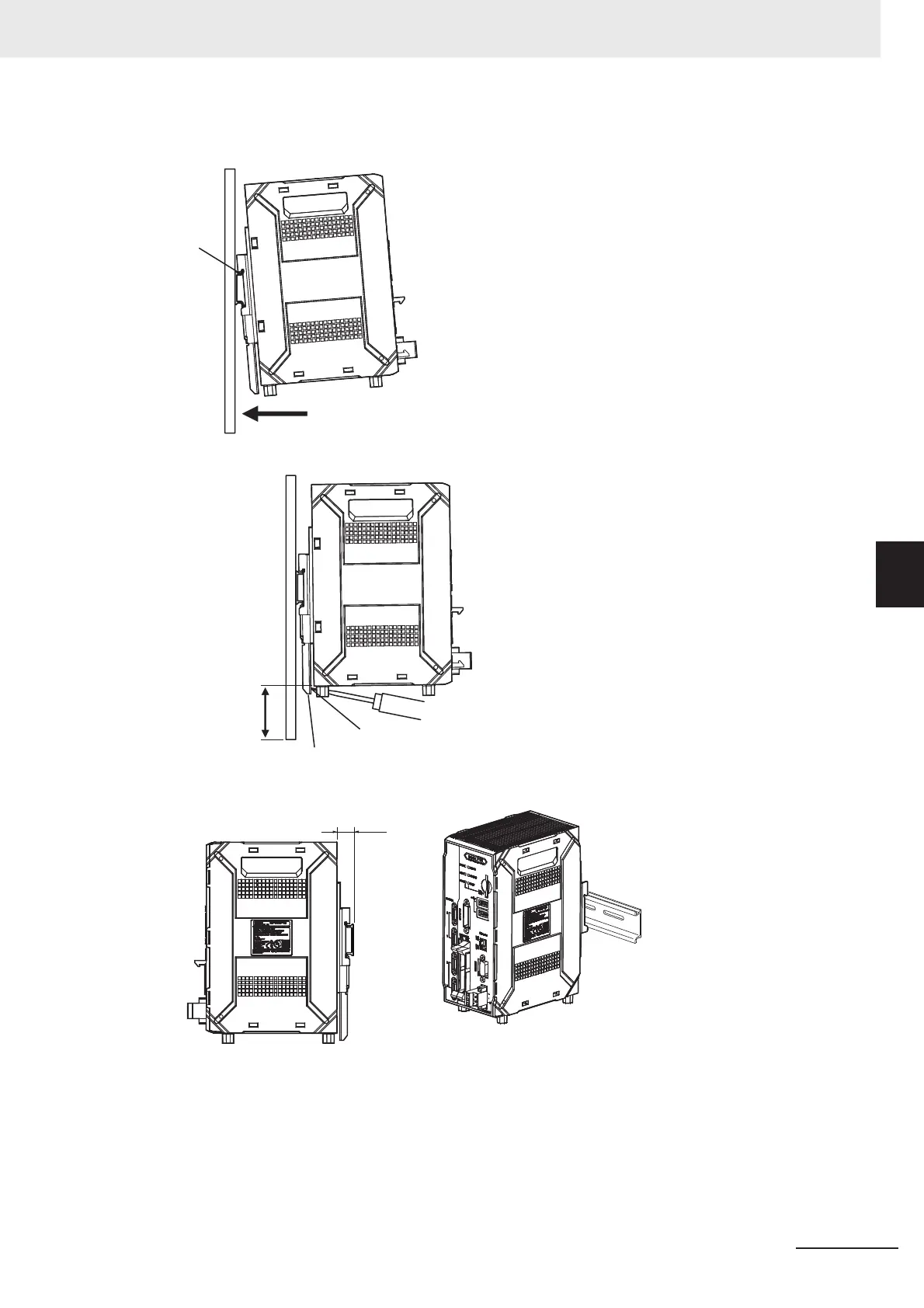

• When mounting the Sensor Controller to the DIN rail, click the rail stoppers, hook the part of A to
rail one to the end, and then push up the rail stoppers with pushing to B direction.
• When removing, insert a flat-head screwdriver to the part of C and pull off.
• The back clearance of DIN rail when mount the DIN rail is 16.1mm.
A
B
30 mm min.
C
Rail stopper
16.1
