Omron fh series Hardware Manual

6 I/O Interface
6 - 32
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
z
NPN I/O type: FZ5-L350/FZ5-L350-10
z
PNP I/O type: FZ5-L355/FZ5-L355-10

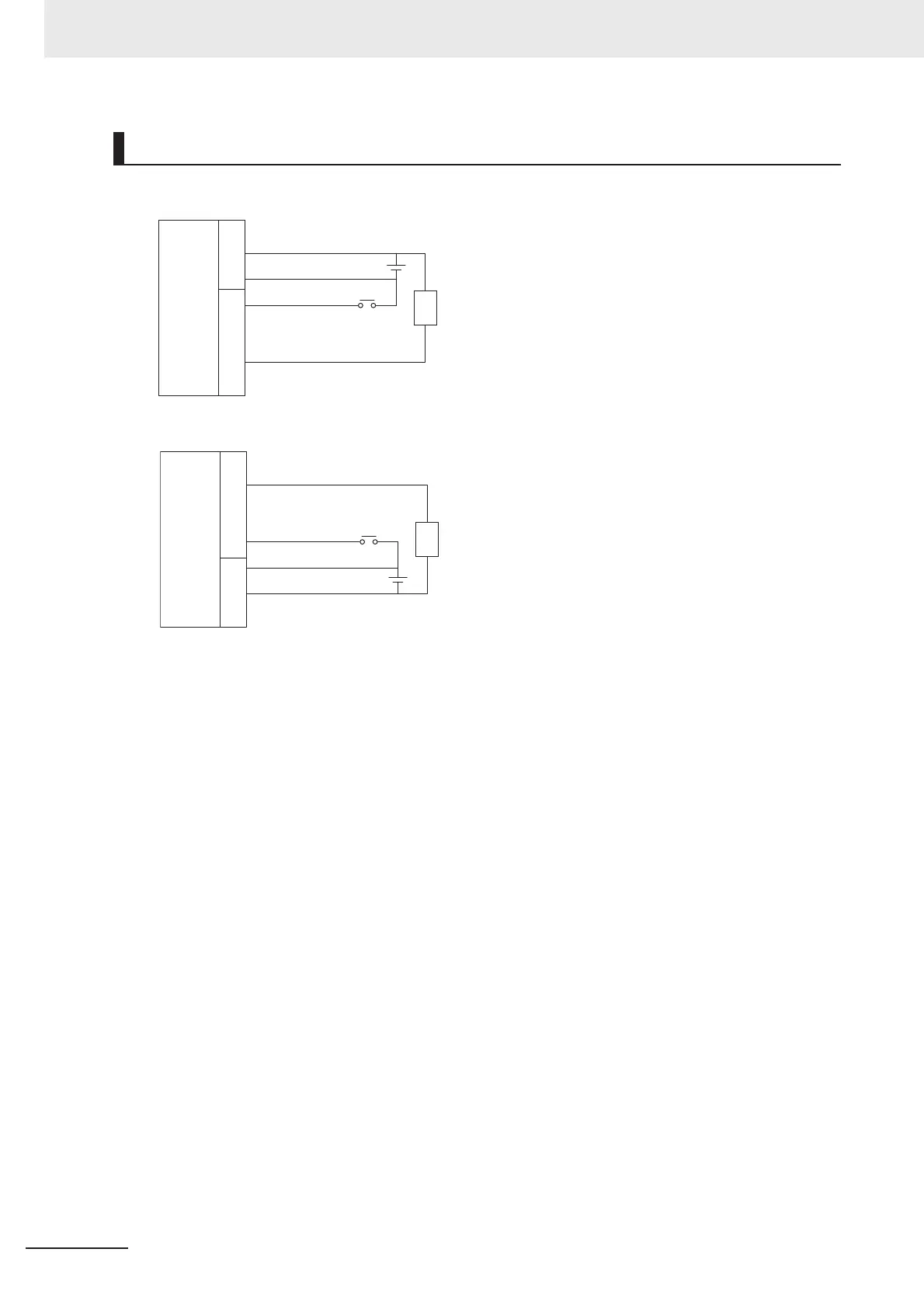

Internal Specifications for Parallel Interface
+24 V
0 V
24 VDC
Each input signal
Controller
Each output signal
Load
Power terminal
Parallel connector
+24 V
0 V
24 VDC
Each input signal
Each output signal
Controller
Load
Power terminal
Parallel connector
