3 Configuration
3 - 12
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Additional Information
We have the 2D CAD data or 3D CAD data.
You can download CAD data from www.fa.omron.co.jp.

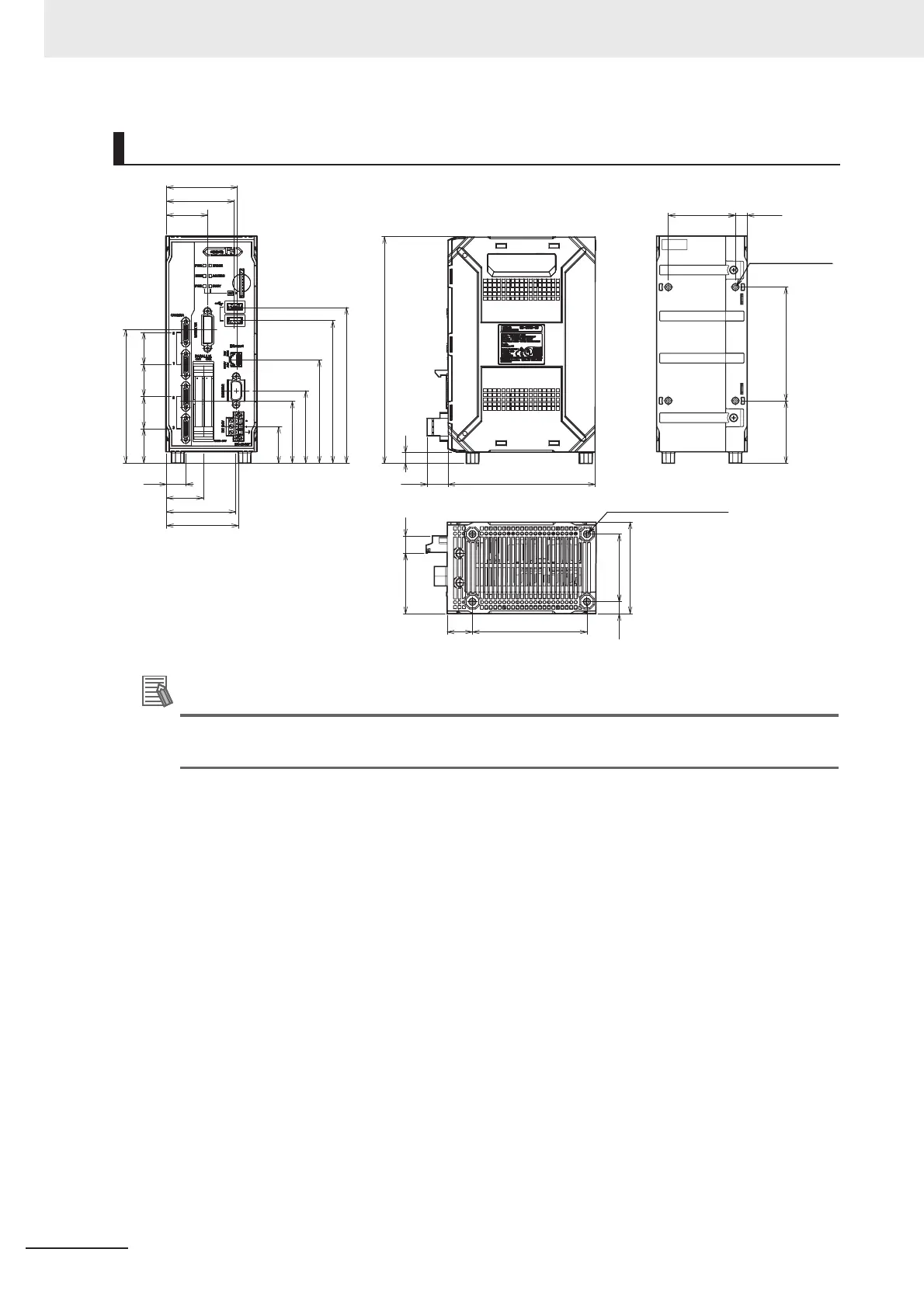

Dimensions
Four, M4 mounting holes
with a depth of 6.5 mm
(Unit: mm)
52.9 15 10
200
137.6
54.3
32.2
91.3
63.9
125.6
117.5
30.4
17.2
61.6
64
28.3 28.3 28.3
13018.5
5910.5
80
22 100
10055
Four, M4
mounting holes
with a depth
of 6.5 mm
59 10.5
32.8
62.8
60.6
36.3
