3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-8 Project Database
3
3-8-3 Alarm Setting
3

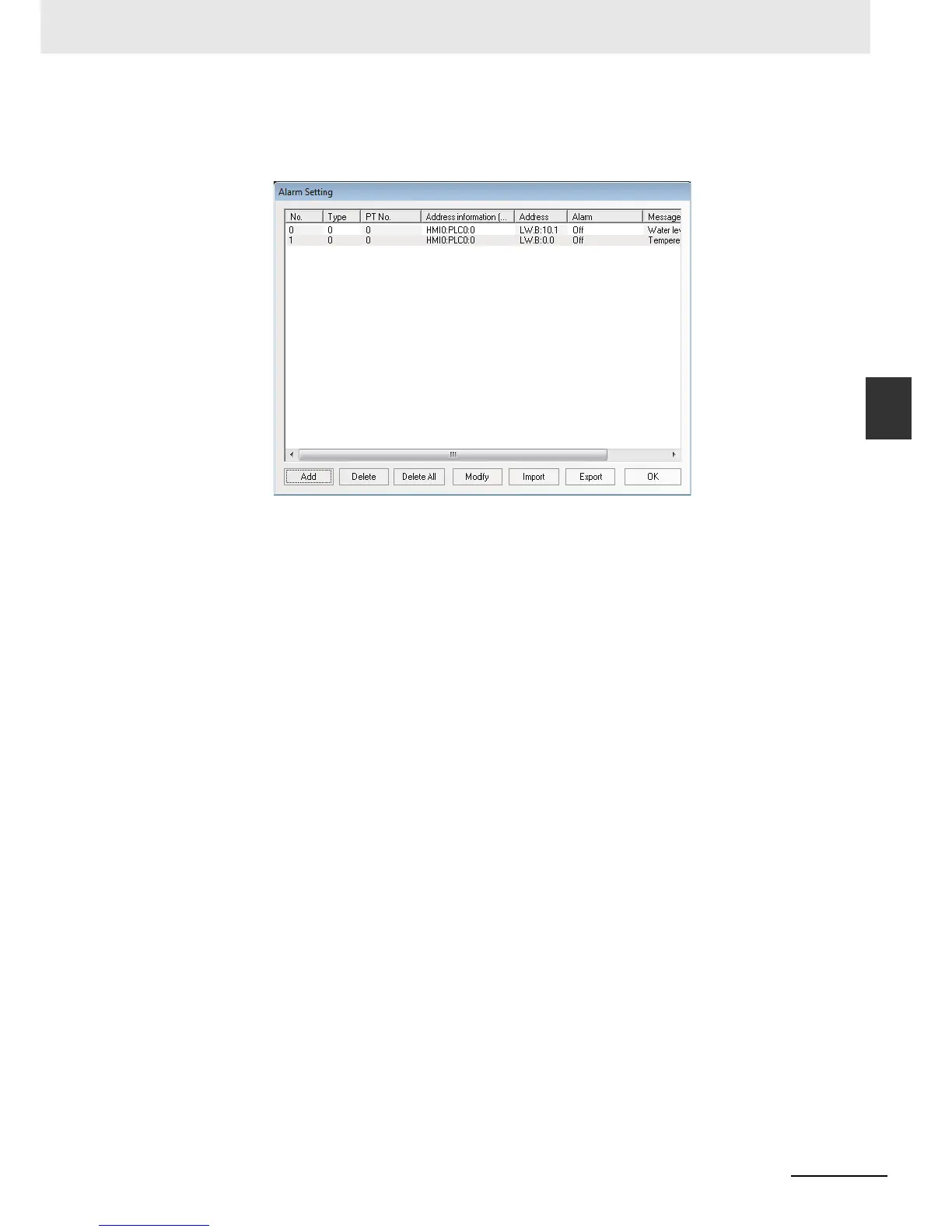

Press the [OK] button to make the alarm setting displayed in the list. After the alarm setting is
logged, the existed alarm setting can be edited by [Delete] or modified by [Modify] buttons.
Press the [OK] button to complete the logon of the alarm setting.
Note In order to perform the communications effectively, specifying the continuous address is recommended as
read address of the alarm information. For example, when you specify the continuous addresses from M100
to M199, whole the addresses from M100 to M199 can be read in the communications only once.
Event/Alarm Type
The Event/Alarm is divided into 256 types, i.e. 0 to 255, in the NB-Designer.
Event, Alarm and Alarm Display can restrict the types of the displayed events respectively. For
example, if the display type of “Event Component” is specified from 0 to 3 in the [Event Setting] tab
of Event Properties, only the contents of event ranging from Type 0 to Type 3 will be displayed.
This option is used to select the type of the alarm and event displayed currently.
To Next Page
