3 Functions of NB-Designer
3-246
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

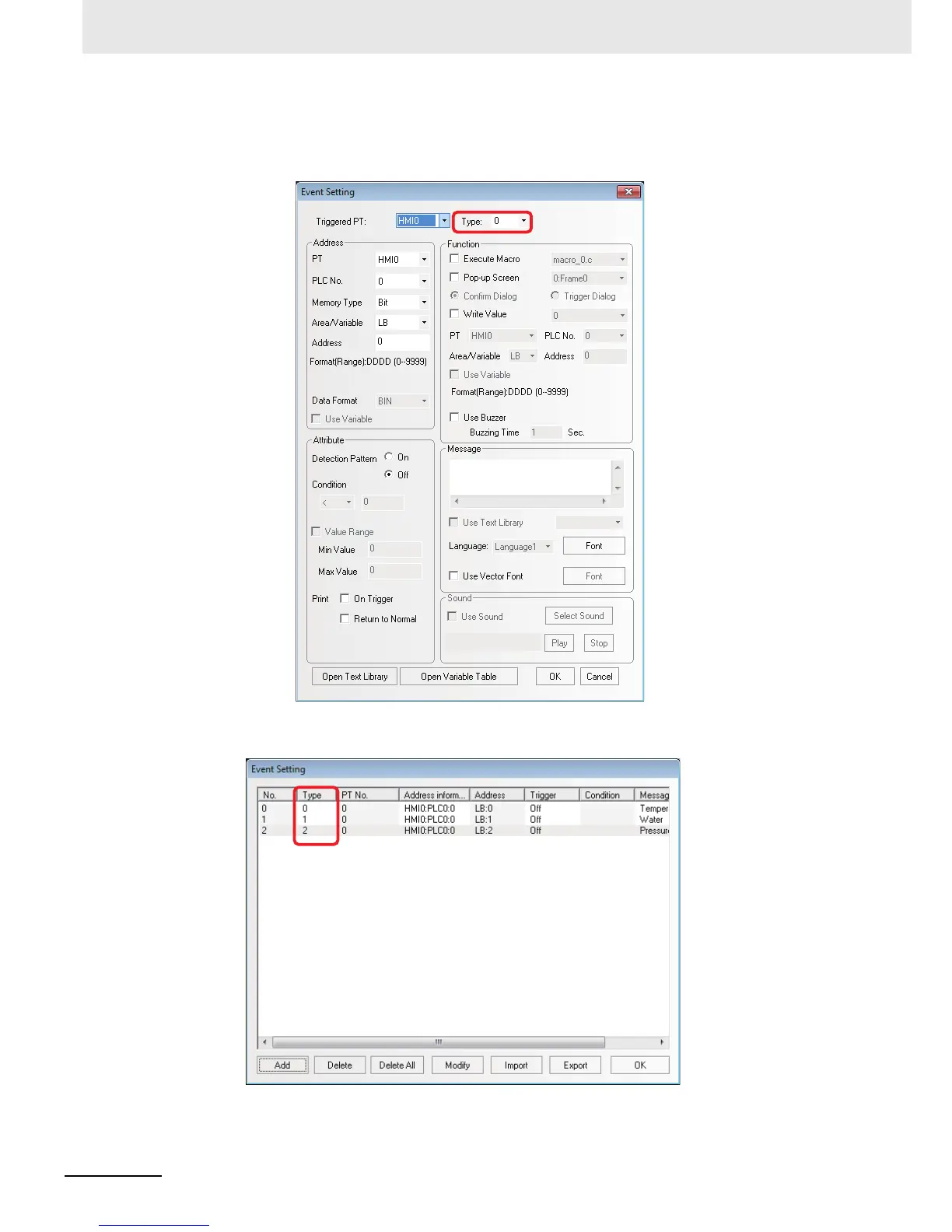

Example: To create an event log with the type of each event being different.
(1) Click the [Event Setting] of the [Project Database] and open the [Event Setting] dialog box.
Click the [Add] and add a new event setting as below.
(2) Create the event triggered by the LB1 and LB2 in the same procedure as the LB0's. The
Type of the LB1 is specified to 1 and the Type of the LB2 is specified to 2.
To Next Page
