3-339
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-12 Recipe Data
3
3-12-3 Upload/Download of Recipe Data between PT and PLC
4
Create two recipe data transmission components with both addresses of 4X100, and one
component is used to download the recipe data and the other is used to upload the recipe data.
5

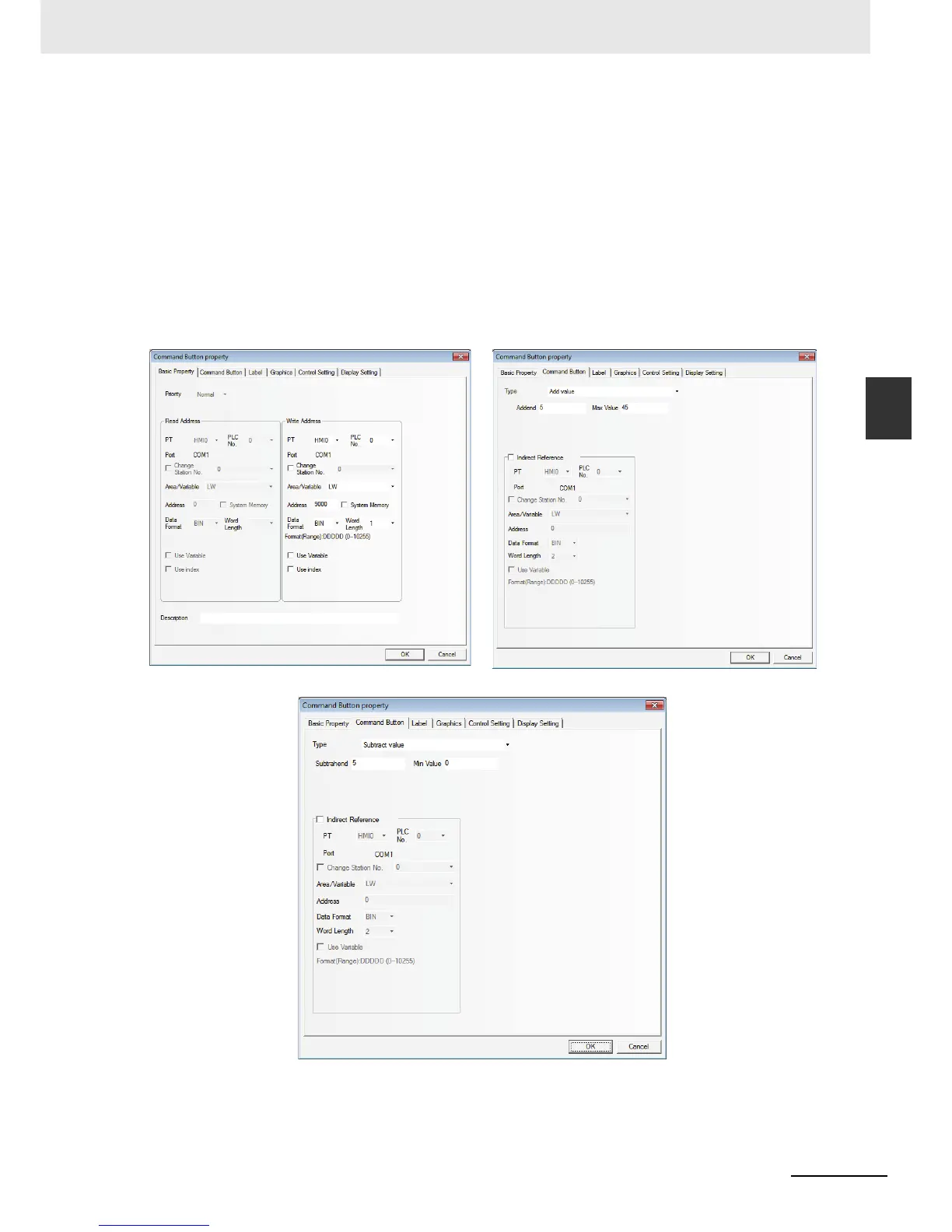

Design two Command Button components (Up and Down) for the user to retrieve and change
each group of recipe data conveniently. After the Up button is pressed for retrieving data
upwards, the system will subtract 5 from LW9000. Because each group of recipe data is made
of 5 words, each time the Up button is pressed, RWI0 displays the Recipe data with a smaller
Recipe No. group. After the Down button is pressed for retrieving data downwards, the system
will add 5 to LW9000. Because each group of recipe data is made of 5 words, so each time the
Down button is pressed, RWI0 displays the Recipe data with a larger Recipe No. group. The
upper limit of recipe data is 45 (10 groups of recipes), as shown below:
To Next Page
