3-385
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-16 Other Functions
3

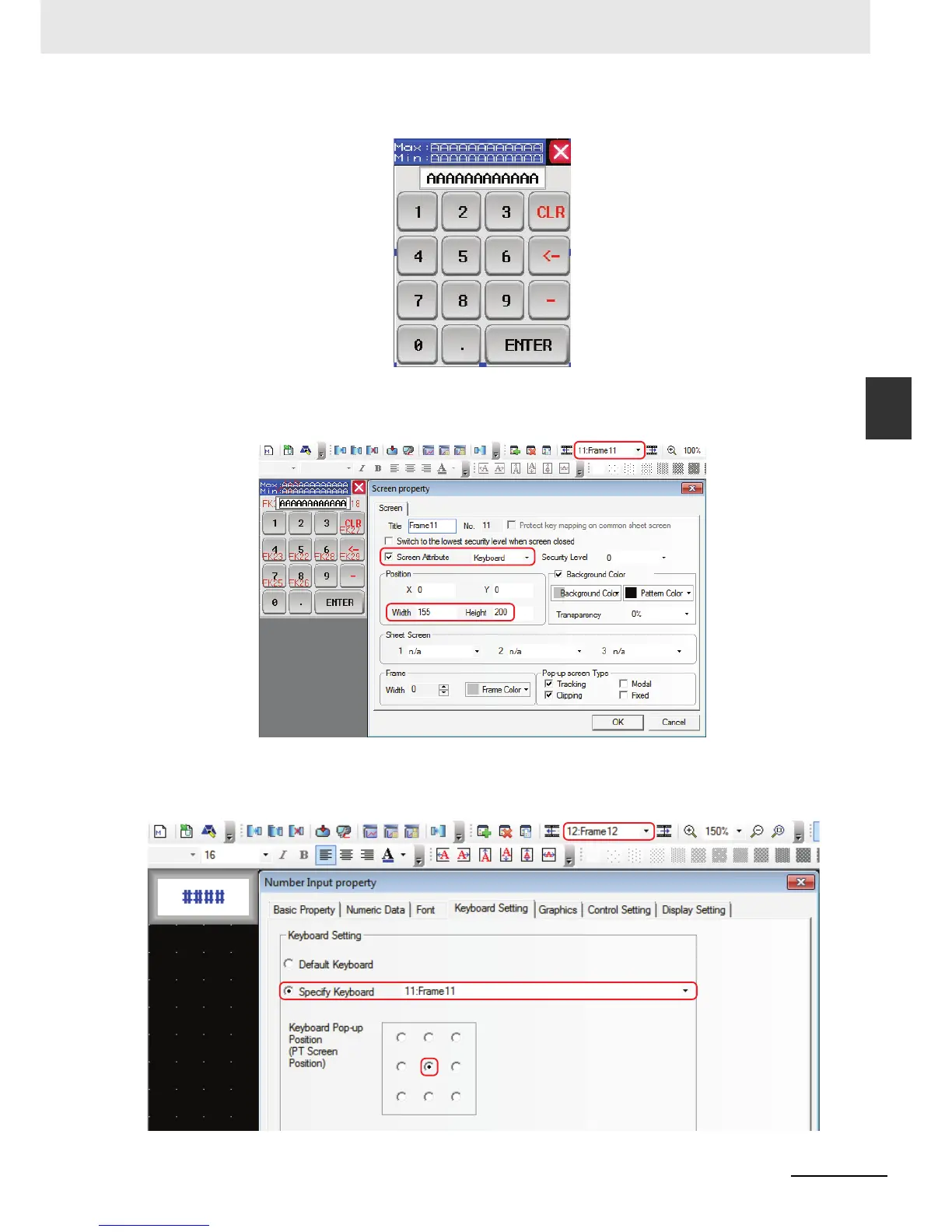

(3) Close [Edit Group Components Library] and one keyboard will appear in the screen.
(4) Place this keyboard in Frame 11, double-click the mouse and change Width and Height,
select [Keyboard] after Special Attribute being checked and make the other settings in
Screen Property dialog box, as shown below:
Note [Keyboard] in [Screen Attribute] must be selected in [Screen Property] dialog box.
(5) Place one Number Input component in Frame 12, and select [Specify Keyboard] in
[Keyboard Setting] tab, as shown below:
To Next Page
