3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-3 NB-Designer Software Window
3
3-3-3 Project Work Space

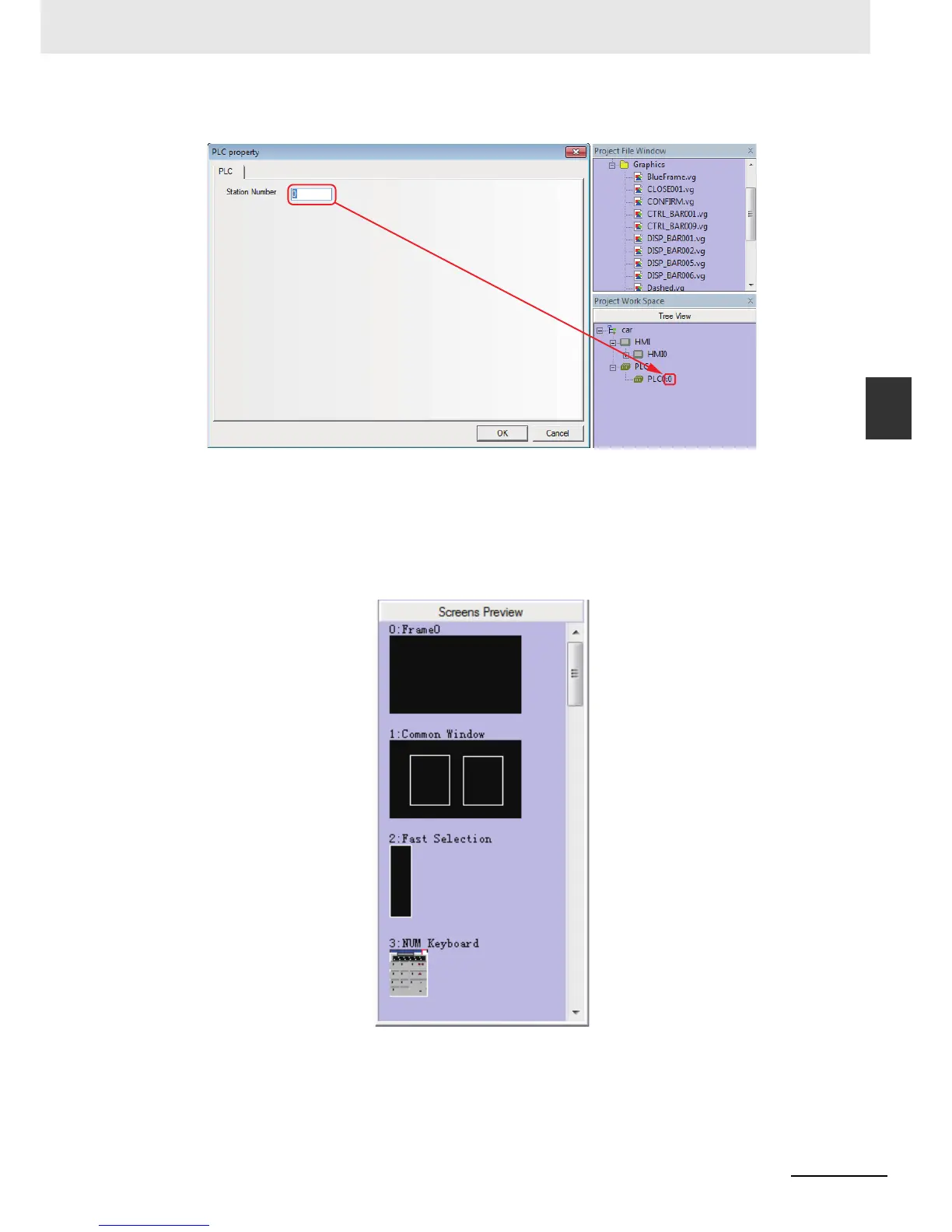

Explanation about the characters on the top of the PLC Property window.
The first digit indicates the PLC No. currently used.
The second digit indicates the Station No. of PLC currently used.
Screens Preview
Click [Screens Preview] in the [Project Work Space] to display the preview of the corresponding
screen. This makes browsing the thumbnails quite conveniently.
PLC and PT replacement
• Supporting PLC Model Replacement
Note PLC replacement must be carried out through the [Change PLC Model] option. If you do not use this
function and delete all the settings of PLC to reconnect with the new PLC, the PLC area is replaced with
all the local addresses of PT.
